Datasheet SPX3819 (MaxLinear) - 6
| Hersteller | MaxLinear |
| Beschreibung | 500mA Low-Noise LDO Voltage Regulatorin |
| Seiten / Seite | 13 / 6 — SPX3819. 500mA Low-Noise LDO Voltage Regulator |
| Dateiformat / Größe | PDF / 1.2 Mb |
| Dokumentensprache | Englisch |
SPX3819. 500mA Low-Noise LDO Voltage Regulator
Modelllinie für dieses Datenblatt
- SPX3819A1-3-3 SPX3819A1-3-3/TR SPX3819A1-L-3-3 SPX3819M3-1-8 SPX3819M3-3-0 SPX3819M3-3-1 SPX3819M3-3-3 SPX3819M3-L-1-8 SPX3819M3-L-3-0 SPX3819M3-L-3-1 SPX3819M3-L-3-3 SPX3819M5 SPX3819M5-1-2 SPX3819M5-1-2/TR SPX3819M5-1-5 SPX3819M5-1-5/TR SPX3819M5-1-8 SPX3819M5-1-8/TR SPX3819M5-2-5 SPX3819M5-2-5/TR SPX3819M5-2-5/TRR SPX3819M5-3-0 SPX3819M5-3-0/TR SPX3819M5-3-1 SPX3819M5-3-1/TR SPX3819M5-3-3 SPX3819M5-3-3/TR SPX3819M5-5-0 SPX3819M5-5-0/TR SPX3819M5-L SPX3819M5-L-1-2 SPX3819M5-L-1-2/TR SPX3819M5-L-1-5 SPX3819M5-L-1-5/TR SPX3819M5-L-1-8 SPX3819M5-L-1-8/TR SPX3819M5-L-2-5 SPX3819M5-L-2-5/TR SPX3819M5-L-3-0 SPX3819M5-L-3-0/TR SPX3819M5-L-3-1 SPX3819M5-L-3-1/TR SPX3819M5-L-3-3 SPX3819M5-L-3-3/TR SPX3819M5-L-5-0 SPX3819M5-L-5-0/TR SPX3819M5-L/TR SPX3819M5/TR SPX3819R2 SPX3819R2-1-2 SPX3819R2-1-2/TR SPX3819R2-1-5 SPX3819R2-1-5/TR SPX3819R2-1-8 SPX3819R2-1-8/TR SPX3819R2-2-5 SPX3819R2-2-5/TR SPX3819R2-3-0 SPX3819R2-3-1 SPX3819R2-3-3 SPX3819R2-3-3/TR SPX3819R2-5-0 SPX3819R2-L SPX3819R2-L-1-2 SPX3819R2-L-1-2/TR SPX3819R2-L-1-5 SPX3819R2-L-1-5/TR SPX3819R2-L-1-8 SPX3819R2-L-1-8/TR SPX3819R2-L-2-5 SPX3819R2-L-2-5/TR SPX3819R2-L-3-0 SPX3819R2-L-3-1 SPX3819R2-L-3-3 SPX3819R2-L-3-3/TR SPX3819R2-L-5-0 SPX3819R2-L-5-0/TR SPX3819R2-L/TR SPX3819S SPX3819S-1-8 SPX3819S-1-8/TR SPX3819S-2-5 SPX3819S-2-5/TR SPX3819S-3-0 SPX3819S-3-0/TR SPX3819S-3-1 SPX3819S-3-1/TR SPX3819S-3-3 SPX3819S-3-3/TR SPX3819S-5-0 SPX3819S-5-0/TR SPX3819S-L SPX3819S-L-1-2 SPX3819S-L-1-2/TR SPX3819S-L-1-5 SPX3819S-L-1-5/TR SPX3819S-L-1-8 SPX3819S-L-1-8/TR SPX3819S-L-2-5 SPX3819S-L-2-5/TR SPX3819S-L-3-0 SPX3819S-L-3-0/TR SPX3819S-L-3-1 SPX3819S-L-3-1/TR SPX3819S-L-3-3 SPX3819S-L-3-3/TR SPX3819S-L-5-0 SPX3819S-L-5-0/TR SPX3819S-L/TR SPX3819S/TR SPX3819T5-1-8 SPX3819T5-1-8/TR SPX3819T5-3-0 SPX3819T5-3-1 SPX3819T5-3-3 SPX3819T5-3-3/TR SPX3819T5-L-1-8 SPX3819T5-L-3-0 SPX3819T5-L-3-1 SPX3819T5-L-3-3 SPX3819U SPX3819U-1-8 SPX3819U-2-5 SPX3819U-3-0 SPX3819U-3-1 SPX3819U-3-3 SPX3819U-5-0 SPX3819U-L SPX3819U-L-1-8 SPX3819U-L-2-5 SPX3819U-L-3-0 SPX3819U-L-3-1 SPX3819U-L-3-3 SPX3819U-L-5-0
Textversion des Dokuments
SPX3819 500mA Low-Noise LDO Voltage Regulator

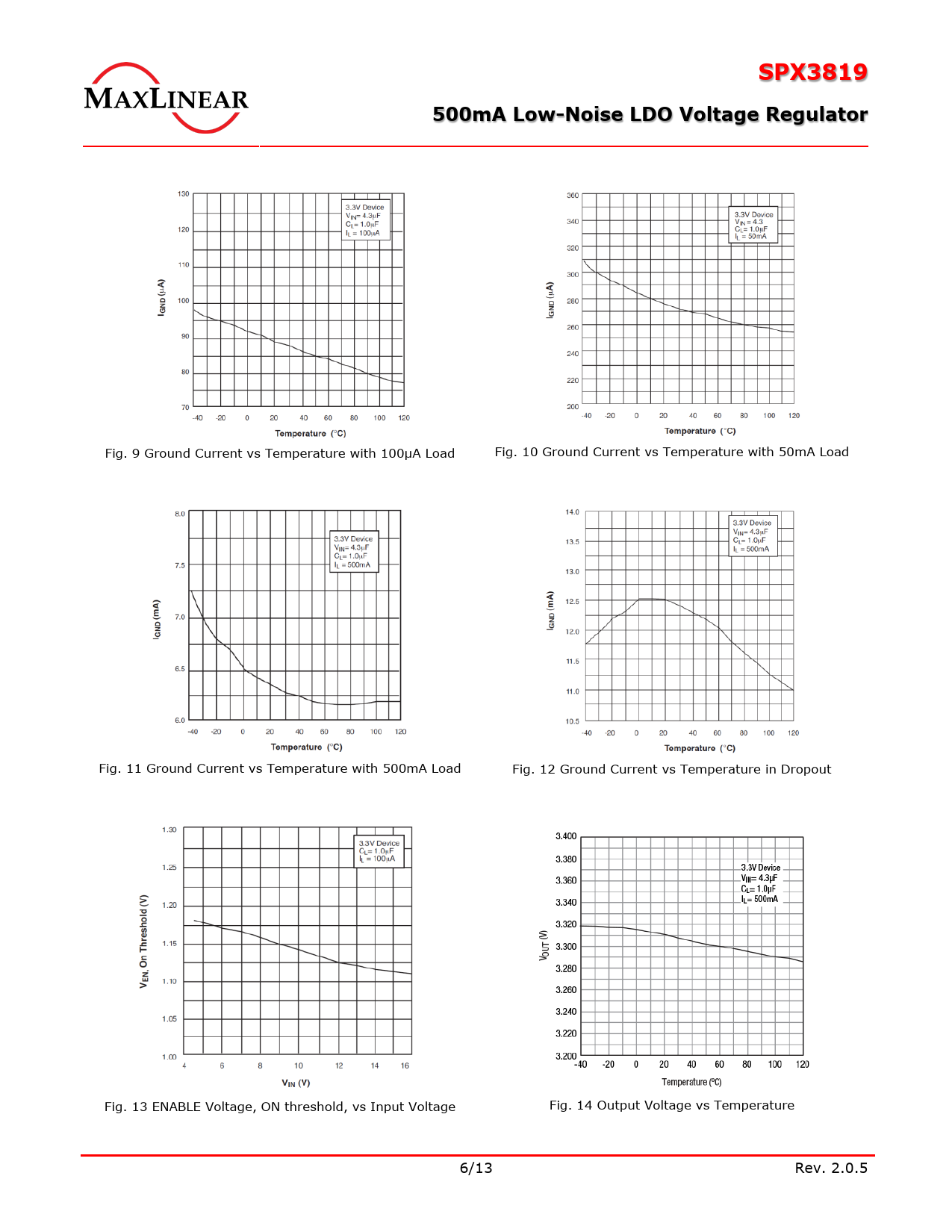

Fig. 9 Ground Current vs Temperature with 100μA Load Fig. 10 Ground Current vs Temperature with 50mA Load Fig. 11 Ground Current vs Temperature with 500mA Load Fig. 12 Ground Current vs Temperature in Dropout Fig. 13 ENABLE Voltage, ON threshold, vs Input Voltage Fig. 14 Output Voltage vs Temperature 6/13 Rev. 2.0.5
Fig. 9 Ground Current vs Temperature with 100μA Load Fig. 10 Ground Current vs Temperature with 50mA Load Fig. 11 Ground Current vs Temperature with 500mA Load Fig. 12 Ground Current vs Temperature in Dropout Fig. 13 ENABLE Voltage, ON threshold, vs Input Voltage Fig. 14 Output Voltage vs Temperature 6/13 Rev. 2.0.5
