Datasheet PMV30UN (Nexperia)
| Hersteller | Nexperia |
| Beschreibung | N-channel TrenchMOS ultra low level FET in SOT23 package |
| Seiten / Seite | 12 / 1 — PMV30UN. Rev. 01 — 25 June 2003. Product data. Product profile. 1.1 … |
| Dateiformat / Größe | PDF / 244 Kb |
| Dokumentensprache | Englisch |
PMV30UN. Rev. 01 — 25 June 2003. Product data. Product profile. 1.1 Description. 1.2 Features. 1.3 Applications
Modelllinie für dieses Datenblatt
Textversion des Dokuments

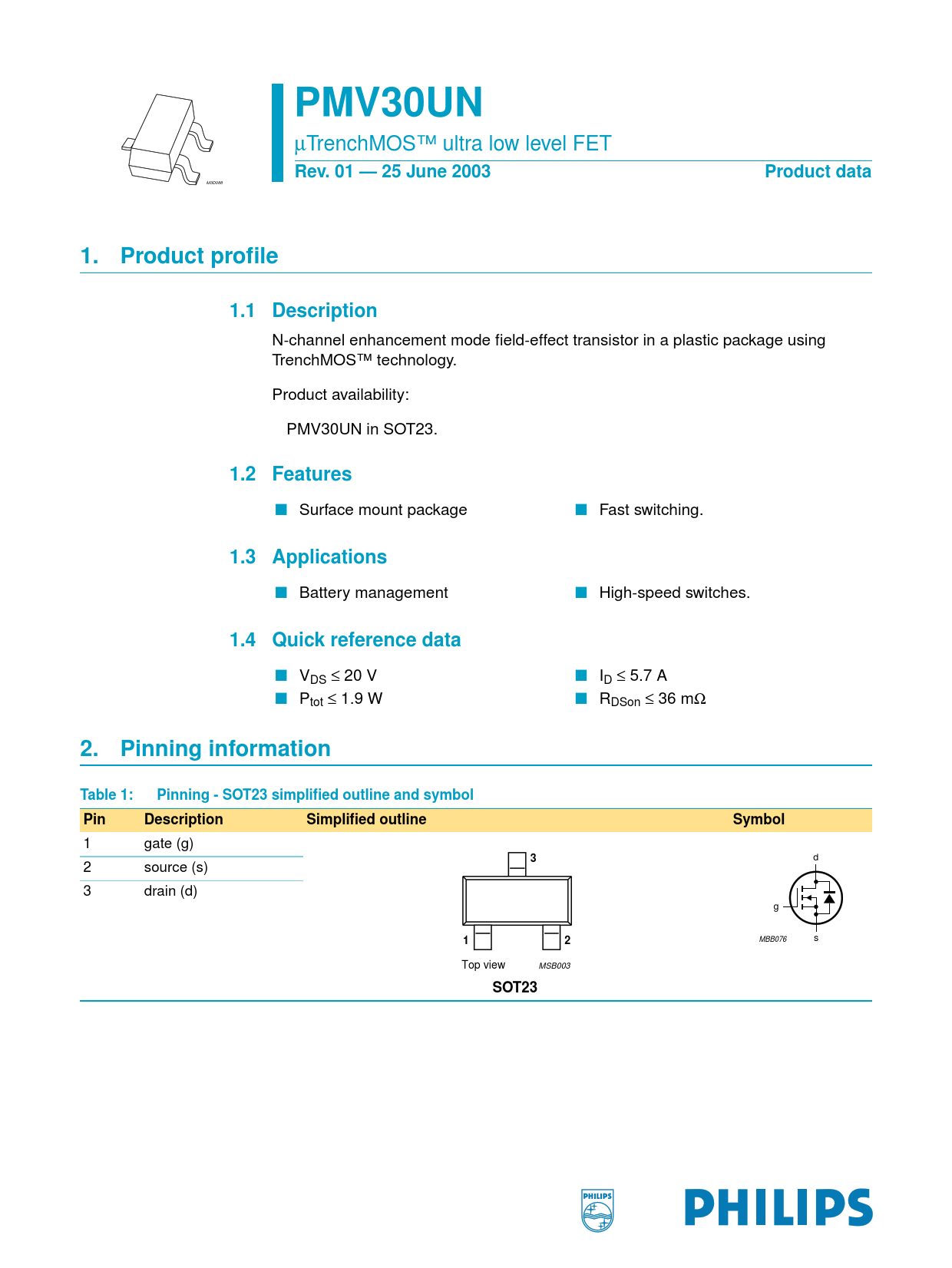

PMV30UN
µTrenchMOS™ ultra low level FET
Rev. 01 — 25 June 2003 Product data
M3D088
1. Product profile 1.1 Description
N-channel enhancement mode field-effect transistor in a plastic package using TrenchMOS™ technology. Product availability: PMV30UN in SOT23.
1.2 Features
■ Surface mount package ■ Fast switching.
1.3 Applications
■ Battery management ■ High-speed switches.
1.4 Quick reference data
■ VDS ≤ 20 V ■ ID ≤ 5.7 A ■ Ptot ≤ 1.9 W ■ RDSon ≤ 36 mΩ
2. Pinning information Table 1: Pinning - SOT23 simplified outline and symbol Pin Description Simplified outline Symbol
1 gate (g)
3
d 2 source (s) 3 drain (d) g
1 2
MBB076 s Top view MSB003
SOT23
Document Outline 1. Product profile 1.1 Description 1.2 Features 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Limiting values 4. Thermal characteristics 4.1 Transient thermal impedance 5. Characteristics 6. Package outline SOT23 7. Revision history 8. Data sheet status 9. Definitions 10. Disclaimers 11. Trademarks
µTrenchMOS™ ultra low level FET
Rev. 01 — 25 June 2003 Product data
M3D088
1. Product profile 1.1 Description
N-channel enhancement mode field-effect transistor in a plastic package using TrenchMOS™ technology. Product availability: PMV30UN in SOT23.
1.2 Features
■ Surface mount package ■ Fast switching.
1.3 Applications
■ Battery management ■ High-speed switches.
1.4 Quick reference data
■ VDS ≤ 20 V ■ ID ≤ 5.7 A ■ Ptot ≤ 1.9 W ■ RDSon ≤ 36 mΩ
2. Pinning information Table 1: Pinning - SOT23 simplified outline and symbol Pin Description Simplified outline Symbol
1 gate (g)
3
d 2 source (s) 3 drain (d) g
1 2
MBB076 s Top view MSB003
SOT23
Document Outline 1. Product profile 1.1 Description 1.2 Features 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Limiting values 4. Thermal characteristics 4.1 Transient thermal impedance 5. Characteristics 6. Package outline SOT23 7. Revision history 8. Data sheet status 9. Definitions 10. Disclaimers 11. Trademarks
