Philips Semiconductors PMV30UN
µ

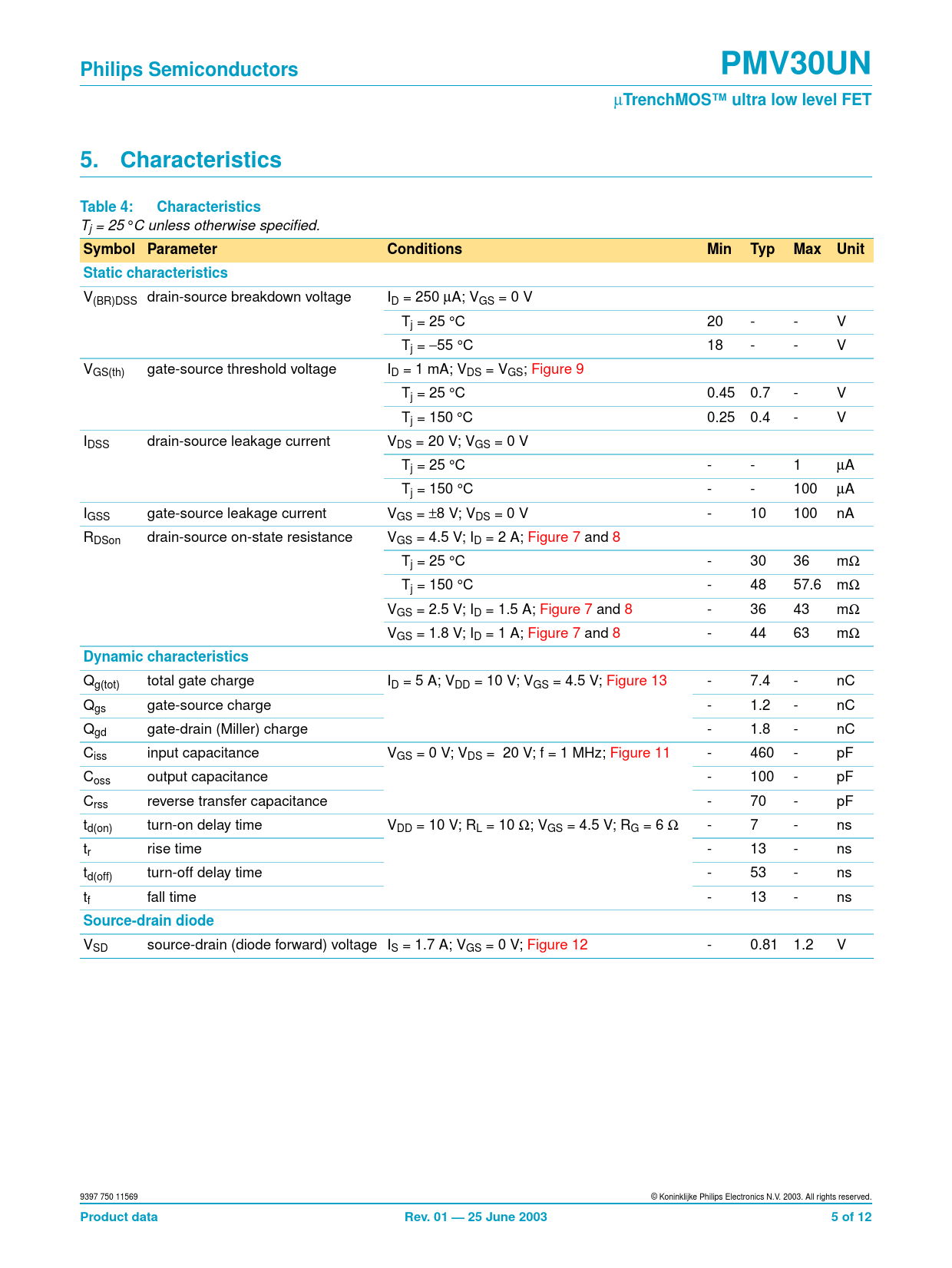

TrenchMOS™ ultra low level FET 5. Characteristics Table 4: Characteristics
Tj = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit Static characteristics
V(BR)DSS drain-source breakdown voltage ID = 250 µA; VGS = 0 V Tj = 25 °C 20 - - V Tj = −55 °C 18 - - V VGS(th) gate-source threshold voltage ID = 1 mA; VDS = VGS; Figure 9 Tj = 25 °C 0.45 0.7 - V Tj = 150 °C 0.25 0.4 - V IDSS drain-source leakage current VDS = 20 V; VGS = 0 V Tj = 25 °C - - 1 µA Tj = 150 °C - - 100 µA IGSS gate-source leakage current VGS = ±8 V; VDS = 0 V - 10 100 nA RDSon drain-source on-state resistance VGS = 4.5 V; ID = 2 A; Figure 7 and 8 Tj = 25 °C - 30 36 mΩ Tj = 150 °C - 48 57.6 mΩ VGS = 2.5 V; ID = 1.5 A; Figure 7 and 8 - 36 43 mΩ VGS = 1.8 V; ID = 1 A; Figure 7 and 8 - 44 63 mΩ
Dynamic characteristics
Qg(tot) total gate charge ID = 5 A; VDD = 10 V; VGS = 4.5 V; Figure 13 - 7.4 - nC Qgs gate-source charge - 1.2 - nC Qgd gate-drain (Miller) charge - 1.8 - nC Ciss input capacitance VGS = 0 V; VDS = 20 V; f = 1 MHz; Figure 11 - 460 - pF Coss output capacitance - 100 - pF Crss reverse transfer capacitance - 70 - pF td(on) turn-on delay time VDD = 10 V; RL = 10 Ω; VGS = 4.5 V; RG = 6 Ω - 7 - ns tr rise time - 13 - ns td(off) turn-off delay time - 53 - ns tf fall time - 13 - ns
Source-drain diode
VSD source-drain (diode forward) voltage IS = 1.7 A; VGS = 0 V; Figure 12 - 0.81 1.2 V 9397 750 11569 © Koninklijke Philips Electronics N.V. 2003. All rights reserved.
Product data Rev. 01 — 25 June 2003 5 of 12
