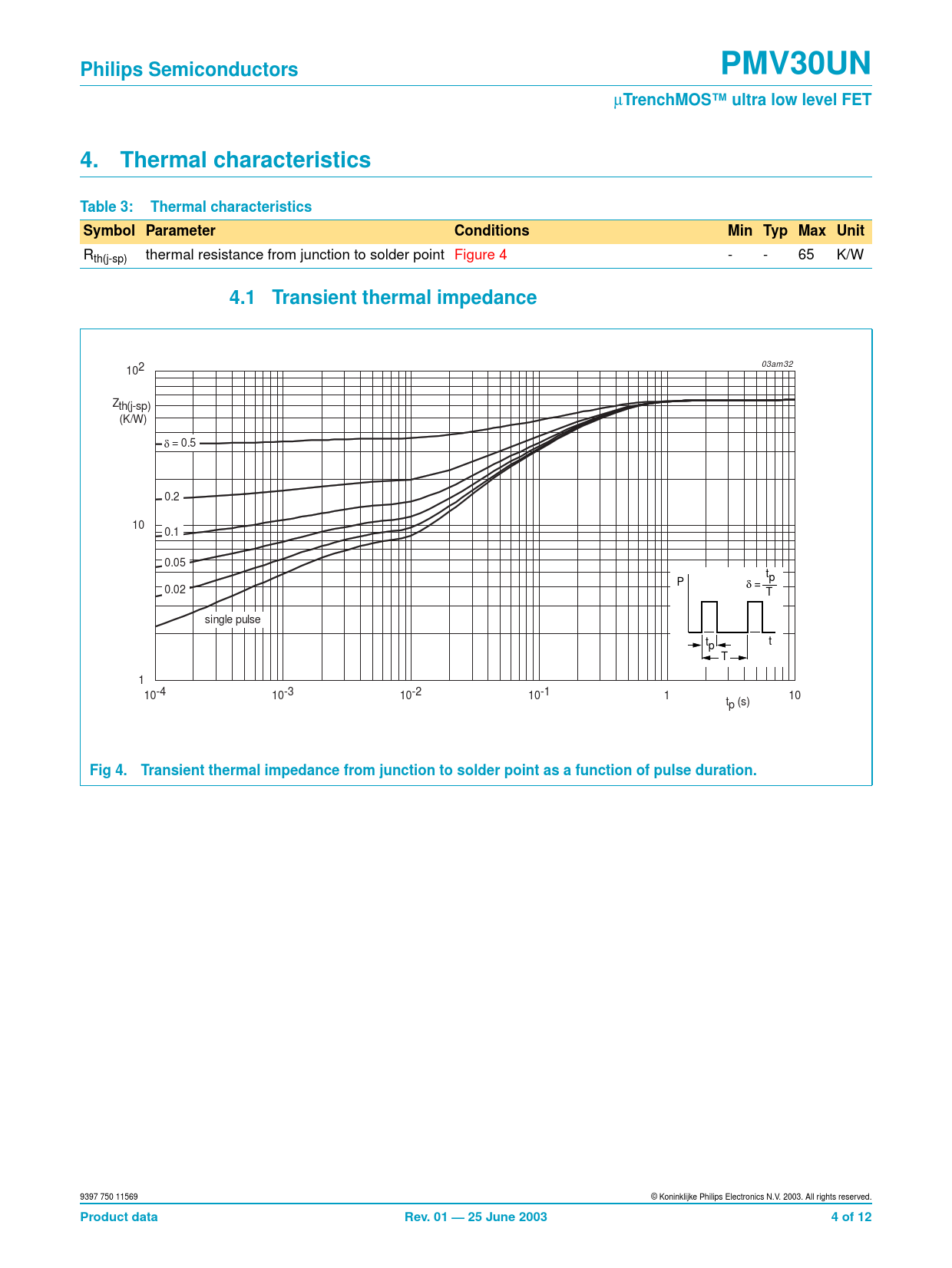

Philips Semiconductors PMV30UN
µ
TrenchMOS™ ultra low level FET 4. Thermal characteristics Table 3: Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-sp) thermal resistance from junction to solder point Figure 4 - - 65 K/W
4.1 Transient thermal impedance
03am32 102 Zth(j-sp) (K/W) δ = 0.5 0.2 10 0.1 0.05 tp P δ = 0.02 T single pulse tp t T 1 10-4 10-3 10-2 10-1 1 10 tp (s)
Fig 4. Transient thermal impedance from junction to solder point as a function of pulse duration.
9397 750 11569 © Koninklijke Philips Electronics N.V. 2003. All rights reserved.
Product data Rev. 01 — 25 June 2003 4 of 12
