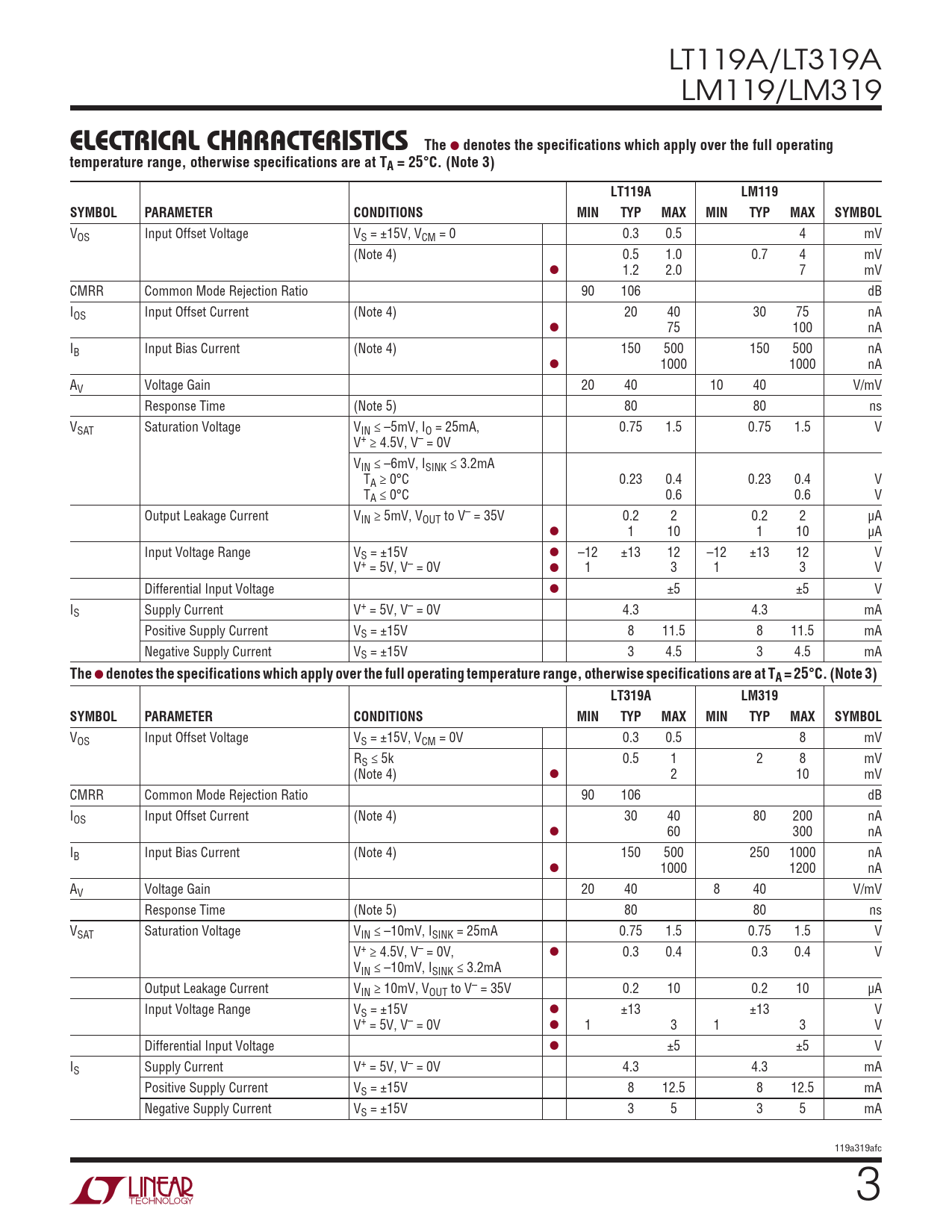

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT119A/LT319A LM119/LM319
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) LT119A LM119 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX SYMBOL
VOS Input Offset Voltage VS = ±15V, VCM = 0 0.3 0.5 4 mV (Note 4) 0.5 1.0 0.7 4 mV l 1.2 2.0 7 mV CMRR Common Mode Rejection Ratio 90 106 dB IOS Input Offset Current (Note 4) 20 40 30 75 nA l 75 100 nA IB Input Bias Current (Note 4) 150 500 150 500 nA l 1000 1000 nA AV Voltage Gain 20 40 10 40 V/mV Response Time (Note 5) 80 80 ns VSAT Saturation Voltage VIN ≤ –5mV, IO = 25mA, 0.75 1.5 0.75 1.5 V V+ ≥ 4.5V, V– = 0V VIN ≤ –6mV, ISINK ≤ 3.2mA TA ≥ 0°C 0.23 0.4 0.23 0.4 V TA ≤ 0°C 0.6 0.6 V Output Leakage Current VIN ≥ 5mV, VOUT to V– = 35V 0.2 2 0.2 2 µA l 1 10 1 10 µA Input Voltage Range VS = ±15V l –12 ±13 12 –12 ±13 12 V V+ = 5V, V– = 0V l 1 3 1 3 V Differential Input Voltage l ±5 ±5 V IS Supply Current V+ = 5V, V– = 0V 4.3 4.3 mA Positive Supply Current VS = ±15V 8 11.5 8 11.5 mA Negative Supply Current VS = ±15V 3 4.5 3 4.5 mA
The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) LT319A LM319 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX SYMBOL
VOS Input Offset Voltage VS = ±15V, VCM = 0V 0.3 0.5 8 mV RS ≤ 5k 0.5 1 2 8 mV (Note 4) l 2 10 mV CMRR Common Mode Rejection Ratio 90 106 dB IOS Input Offset Current (Note 4) 30 40 80 200 nA l 60 300 nA IB Input Bias Current (Note 4) 150 500 250 1000 nA l 1000 1200 nA AV Voltage Gain 20 40 8 40 V/mV Response Time (Note 5) 80 80 ns VSAT Saturation Voltage VIN ≤ –10mV, ISINK = 25mA 0.75 1.5 0.75 1.5 V V+ ≥ 4.5V, V– = 0V, l 0.3 0.4 0.3 0.4 V VIN ≤ –10mV, ISINK ≤ 3.2mA Output Leakage Current VIN ≥ 10mV, VOUT to V– = 35V 0.2 10 0.2 10 µA Input Voltage Range VS = ±15V l ±13 ±13 V V+ = 5V, V– = 0V l 1 3 1 3 V Differential Input Voltage l ±5 ±5 V IS Supply Current V+ = 5V, V– = 0V 4.3 4.3 mA Positive Supply Current VS = ±15V 8 12.5 8 12.5 mA Negative Supply Current VS = ±15V 3 5 3 5 mA 119a319afc 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Typical Applications Schematic Diagram Package Description Revision History Typical Application
