Datasheet LT319A (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | Dual Comparator |
| Seiten / Seite | 12 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). LT119A, LM119 OBSOLETE .. –55°C to … |
| Dateiformat / Größe | PDF / 197 Kb |
| Dokumentensprache | Englisch |
ABSOLUTE MAXIMUM RATINGS (Note 1). LT119A, LM119 OBSOLETE .. –55°C to 125°C. PIN CONFIGURATION. OBSOLETE PACKAGE
Modelllinie für dieses Datenblatt
Textversion des Dokuments

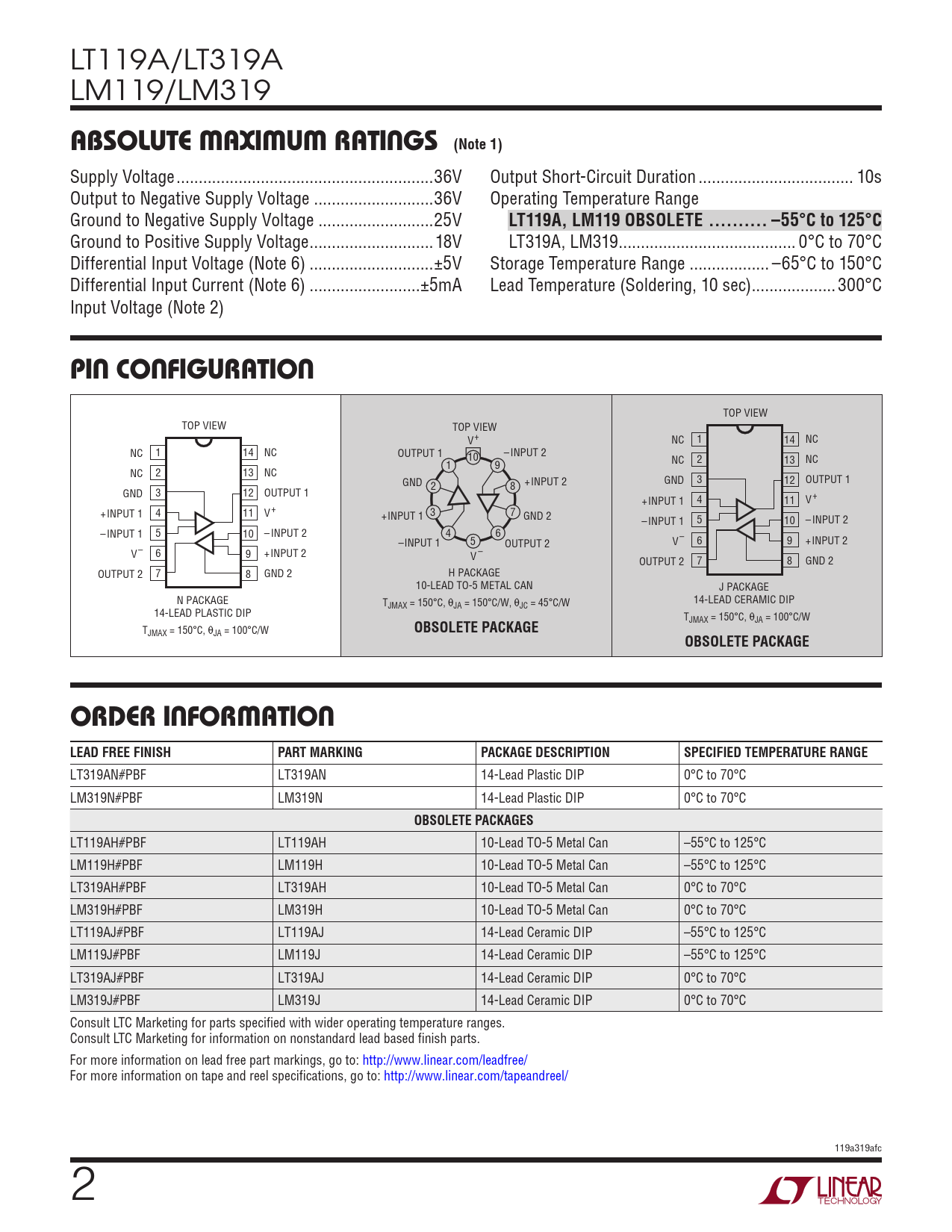

LT119A/LT319A LM119/LM319
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage ..36V Output Short-Circuit Duration ... 10s Output to Negative Supply Voltage ...36V Operating Temperature Range Ground to Negative Supply Voltage ..25V
LT119A, LM119 OBSOLETE .. –55°C to 125°C
Ground to Positive Supply Voltage ..18V LT319A, LM319 .. 0°C to 70°C Differential Input Voltage (Note 6) ..±5V Storage Temperature Range .. –65°C to 150°C Differential Input Current (Note 6) ...±5mA Lead Temperature (Soldering, 10 sec) ...300°C Input Voltage (Note 2)
PIN CONFIGURATION
TOP VIEW TOP VIEW TOP VIEW V+ NC 1 14 NC NC 1 14 NC OUTPUT 1 –INPUT 2 10 1 9 NC 2 13 NC NC 2 13 NC GND 2 8 +INPUT 2 GND 3 12 OUTPUT 1 GND 3 12 OUTPUT 1 +INPUT 1 4 11 V+ +INPUT 1 4 11 V+ 3 7 +INPUT 1 GND 2 –INPUT 1 5 10 –INPUT 2 –INPUT 1 5 10 –INPUT 2 4 6 –INPUT 1 5 OUTPUT 2 V– 6 9 +INPUT 2 V– 6 9 +INPUT 2 V – OUTPUT 2 7 8 GND 2 OUTPUT 2 7 8 GND 2 H PACKAGE 10-LEAD TO-5 METAL CAN J PACKAGE N PACKAGE T 14-LEAD CERAMIC DIP JMAX = 150°C, θJA = 150°C/W, θJC = 45°C/W 14-LEAD PLASTIC DIP TJMAX = 150°C, θJA = 100°C/W T
OBSOLETE PACKAGE
JMAX = 150°C, θJA = 100°C/W
OBSOLETE PACKAGE ORDER INFORMATION LEAD FREE FINISH PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT319AN#PBF LT319AN 14-Lead Plastic DIP 0°C to 70°C LM319N#PBF LM319N 14-Lead Plastic DIP 0°C to 70°C
OBSOLETE PACKAGES
LT119AH#PBF LT119AH 10-Lead TO-5 Metal Can –55°C to 125°C LM119H#PBF LM119H 10-Lead TO-5 Metal Can –55°C to 125°C LT319AH#PBF LT319AH 10-Lead TO-5 Metal Can 0°C to 70°C LM319H#PBF LM319H 10-Lead TO-5 Metal Can 0°C to 70°C LT119AJ#PBF LT119AJ 14-Lead Ceramic DIP –55°C to 125°C LM119J#PBF LM119J 14-Lead Ceramic DIP –55°C to 125°C LT319AJ#PBF LT319AJ 14-Lead Ceramic DIP 0°C to 70°C LM319J#PBF LM319J 14-Lead Ceramic DIP 0°C to 70°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part markings, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 119a319afc 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Typical Applications Schematic Diagram Package Description Revision History Typical Application
