Datasheet SLG46801 (Renesas) - 6
| Hersteller | Renesas |
| Beschreibung | GreenPAK Programmable Mixed-Signal IC, VDD Range: 1.71-5.5V, 10 GPIOs, 2 ACMPs, Multi-Time Programmable, I2C in STQFN-12 package |
| Seiten / Seite | 7 / 6 — SLG46801V Advance Datasheet. 4. Package Information. 4.1. Package Outline … |
| Dateiformat / Größe | PDF / 201 Kb |
| Dokumentensprache | Englisch |
SLG46801V Advance Datasheet. 4. Package Information. 4.1. Package Outline Drawings. 4.1.1
Modelllinie für dieses Datenblatt
Textversion des Dokuments
SLG46801V Advance Datasheet 4. Package Information 4.1 Package Outline Drawings 4.1.1 STQFN (1.6 mm x 1.6 mm x 0.55 mm, 0.4 mm Pitch)
. B . .

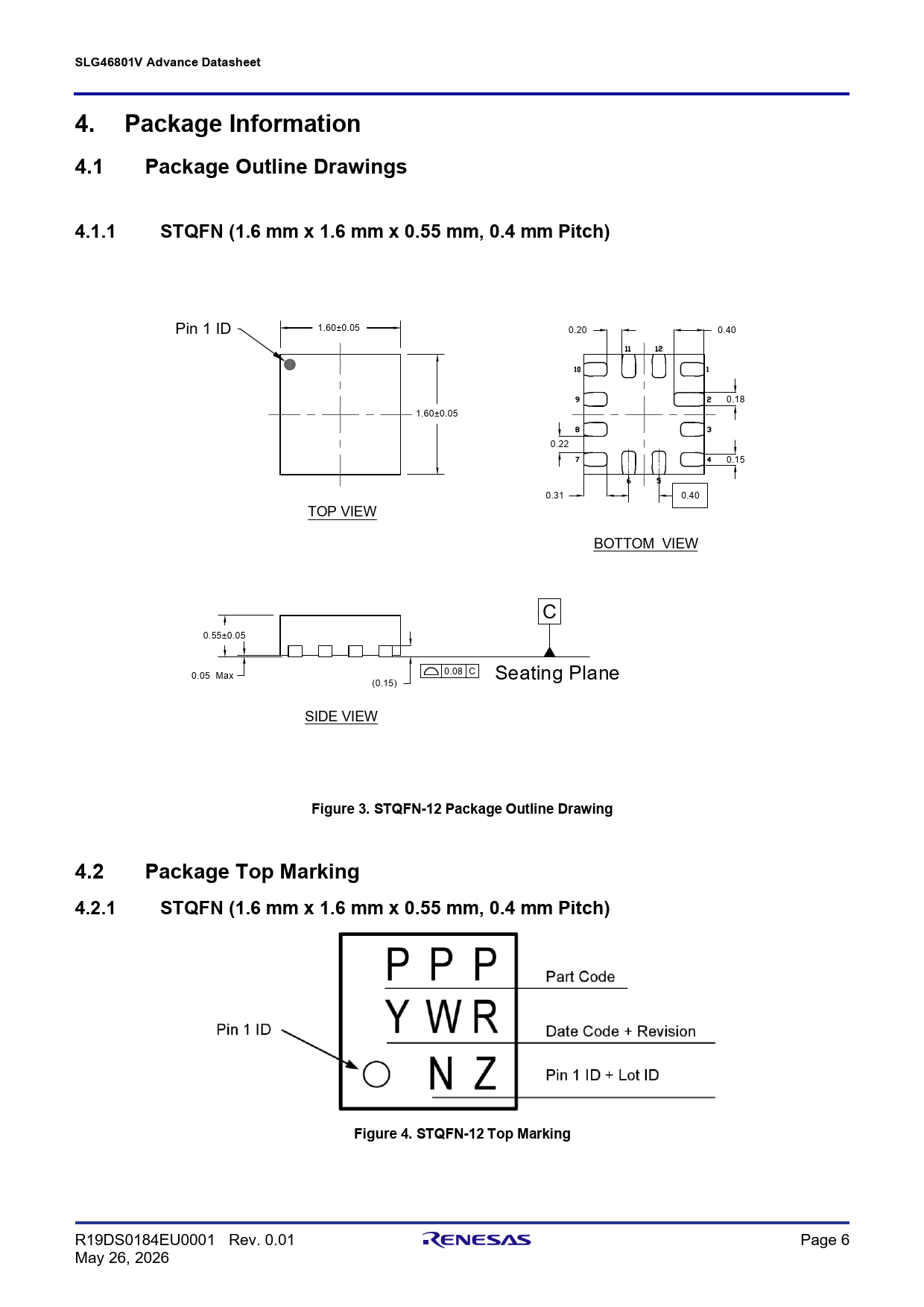

Figure 3. STQFN-12 Package Outline Drawing 4.2 Package Top Marking 4.2.1 STQFN (1.6 mm x 1.6 mm x 0.55 mm, 0.4 mm Pitch) Figure 4. STQFN-12 Top Marking
