Datasheet SLG46801 (Renesas) - 2
| Hersteller | Renesas |
| Beschreibung | GreenPAK Programmable Mixed-Signal IC, VDD Range: 1.71-5.5V, 10 GPIOs, 2 ACMPs, Multi-Time Programmable, I2C in STQFN-12 package |
| Seiten / Seite | 7 / 2 — SLG46801V Advance Datasheet. 1. Overview. 1.1. Block Diagram. Figure 1. … |
| Dateiformat / Größe | PDF / 201 Kb |
| Dokumentensprache | Englisch |

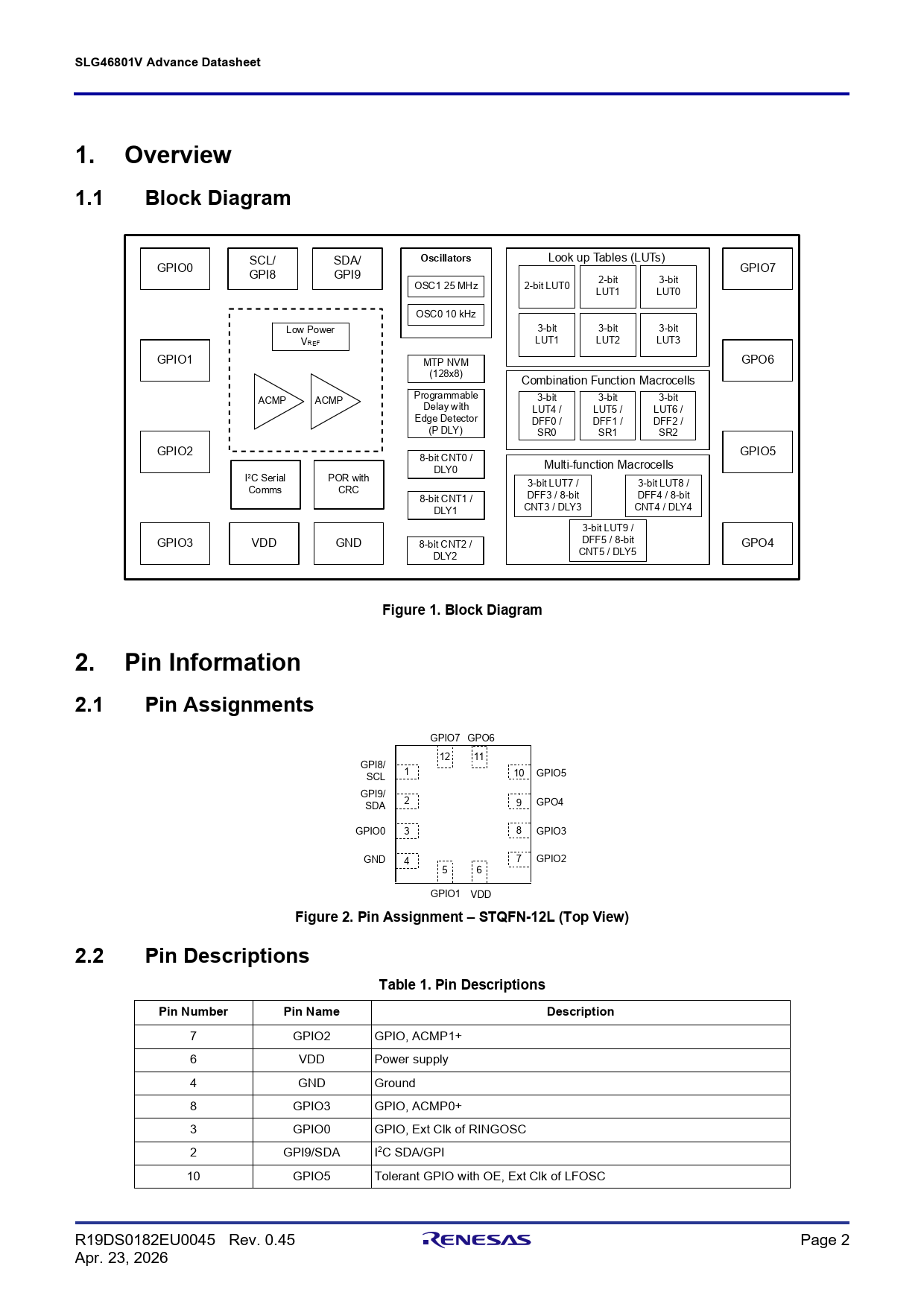

SLG46801V Advance Datasheet. 1. Overview. 1.1. Block Diagram. Figure 1. Block Diagram. 2. Pin Information. 2.1. Pin Assignments
Modelllinie für dieses Datenblatt
Textversion des Dokuments
SLG46801V Advance Datasheet 1. Overview 1.1 Block Diagram Figure 1. Block Diagram 2. Pin Information 2.1 Pin Assignments Figure 2. Pin Assignment – STQFN-12L (Top View) 2.2 Pin Descriptions Table 1. Pin Descriptions Pin Number Pin Name Description
7 GPIO2 GPIO, ACMP1+ 6 VDD Power supply 4 GND Ground 8 GPIO3 GPIO, ACMP0+ 3 GPIO0 GPIO, Ext Clk of RINGOSC 2 GPI9/SDA I2C SDA/GPI 10 GPIO5 Tolerant GPIO with OE, Ext Clk of LFOSC R19DS0182EU0045 Rev. 0.45 Page 2 Apr. 23, 2026
