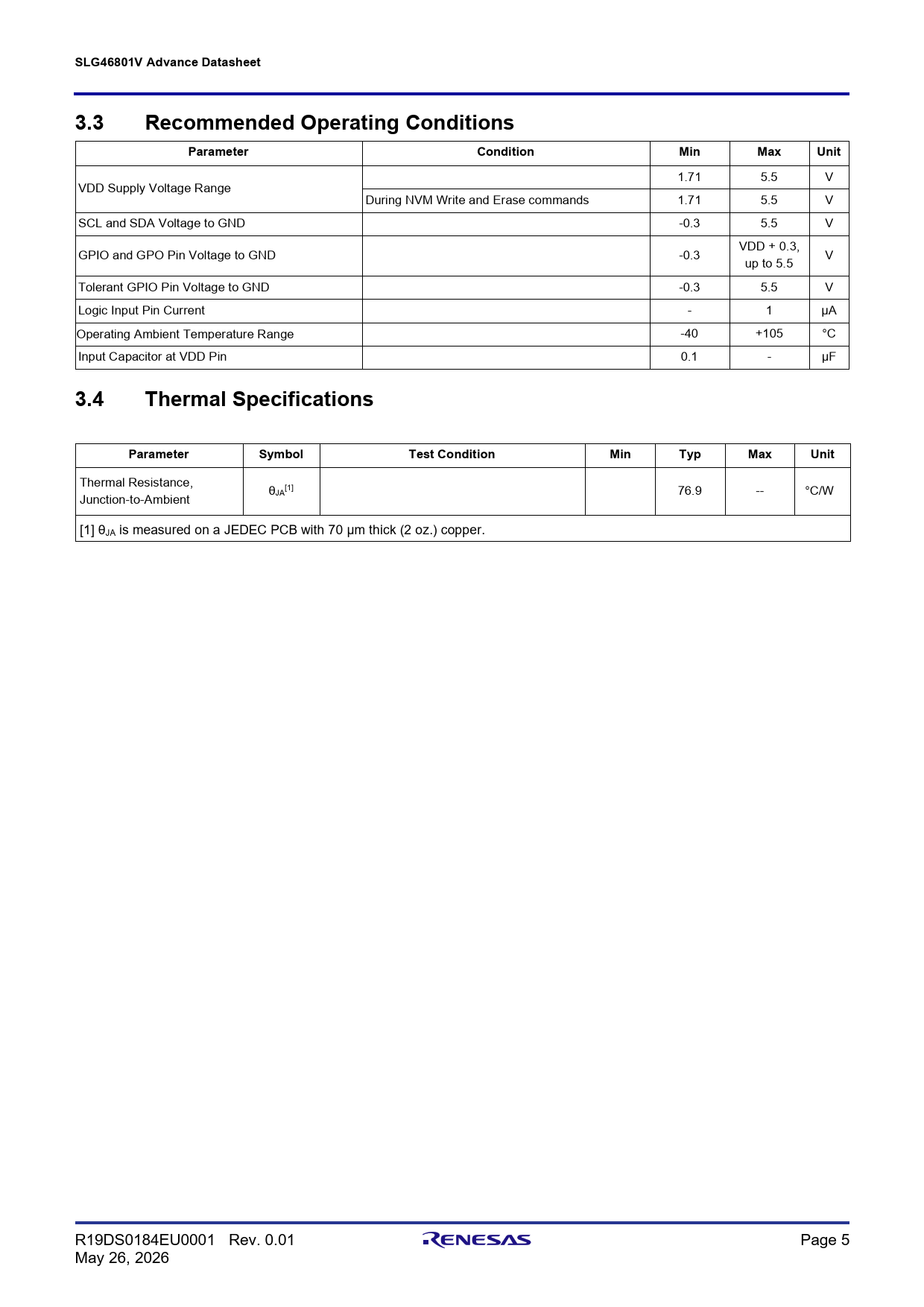

SLG46801V Advance Datasheet3.3Recommended Operating ConditionsParameterConditionMinMaxUnit 1.71 5.5 V VDD Supply Voltage Range During NVM Write and Erase commands 1.71 5.5 V SCL and SDA Voltage to GND -0.3 5.5 V VDD + 0.3, GPIO and GPO Pin Voltage to GND -0.3 V up to 5.5 Tolerant GPIO Pin Voltage to GND -0.3 5.5 V Logic Input Pin Current - 1 µA Operating Ambient Temperature Range -40 +105 °C Input Capacitor at VDD Pin 0.1 - µF 3.4Thermal SpecificationsParameterSymbolTest ConditionMinTypMaxUnit Thermal Resistance, θ [1] 76.9 -- °C/W Junction-to-Ambient JA [ ] θJA J B μ . R19DS0184EU0001 Rev. 0.01 Page 5 May 26, 2026
