Philips Semiconductors PMV30UN
µ
TrenchMOS™ ultra low level FET
03am37 03am39 20 5 V V I I GS = 0 V GS D = 5 A S (V) (A) Tj = 25 °C 4 15 VDD = 10 V 3 10 2 Tj = 25 °C 150 °C 5 1 0 0 0 0.5 1 1.5 0 2 4 6 8 10 Q V G (nC) SD (V) Tj = 25 oC and 150 oC; VGS = 0 V ID = 5 A; VDD = 10 V

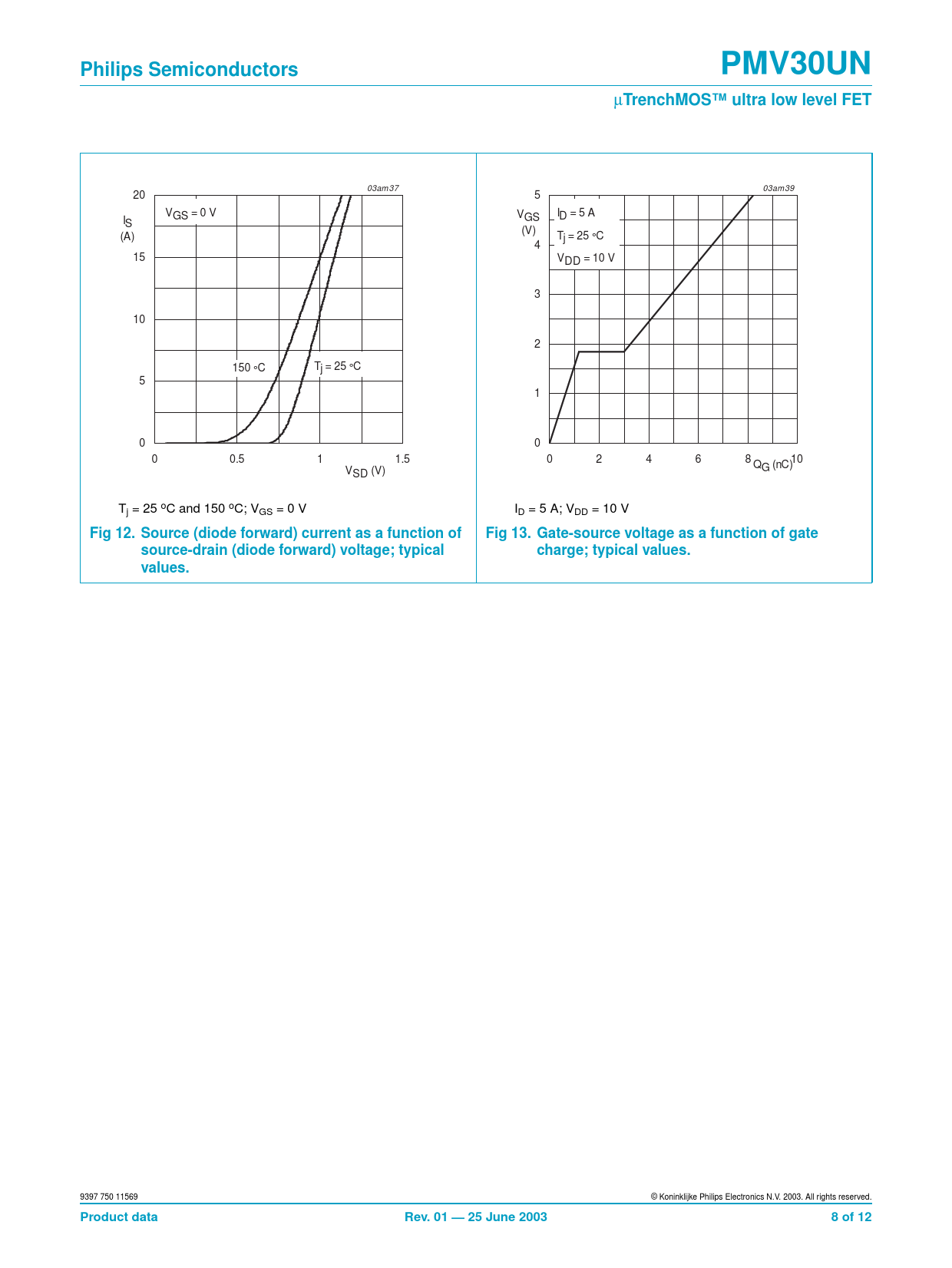

Fig 12. Source (diode forward) current as a function of Fig 13. Gate-source voltage as a function of gate source-drain (diode forward) voltage; typical charge; typical values. values.
9397 750 11569 © Koninklijke Philips Electronics N.V. 2003. All rights reserved.
Product data Rev. 01 — 25 June 2003 8 of 12
