| Beschreibung | 240V N-Channel Enhancement Mode Vertical DMOSFET in E-Line package |
| Seiten / Seite | 6 / 1 — Green. ZVN4424A. 240V N-CHANNEL ENHANCEMENT MODE VE. RTICAL DMOSFET. … |
| Dateiformat / Größe | PDF / 678 Kb |
| Dokumentensprache | Englisch |

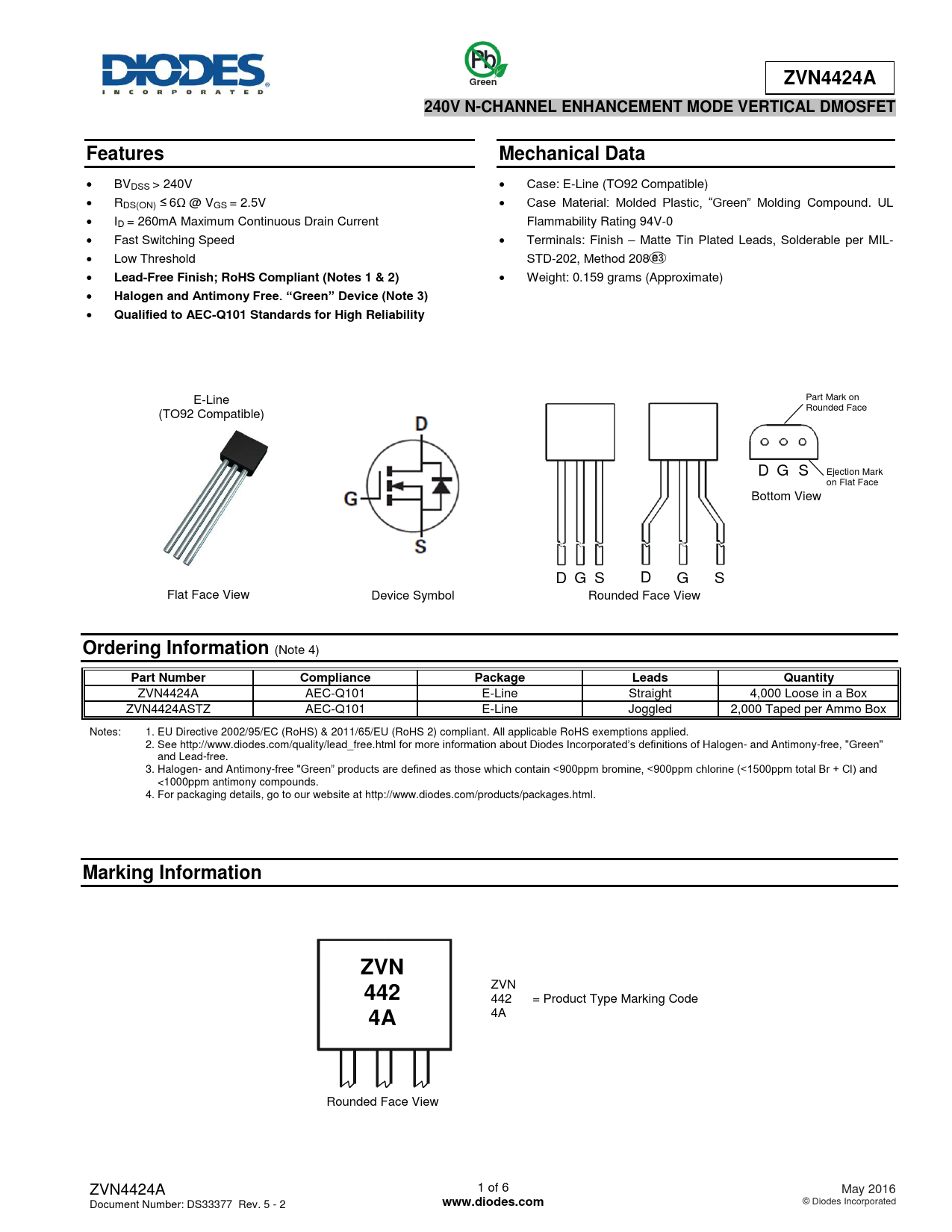

Green. ZVN4424A. 240V N-CHANNEL ENHANCEMENT MODE VE. RTICAL DMOSFET. Features. Mechanical Data
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Green ZVN4424A 240V N-CHANNEL ENHANCEMENT MODE VE RTICAL DMOSFET Features Mechanical Data
BVDSS > 240V Case: E-Line (TO92 Compatible) RDS(ON) ≤ 6Ω @ VGS = 2.5V Case Material: Molded Plastic, ―Green‖ Molding Compound. UL ID = 260mA Maximum Continuous Drain Current Flammability Rating 94V-0 Fast Switching Speed Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL- Low Threshold STD-202, Method 208
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Weight: 0.159 grams (Approximate)
Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability
Part Mark on E-Line Rounded Face (TO92 Compatible) S D G Ejection Mark on Flat Face D G S Bottom View D G S D G S Flat Face View Device Symbol Rounded Face View
Ordering Information
(Note 4)
Part Number Compliance Package Leads Quantity
ZVN4424A AEC-Q101 E-Line Straight 4,000 Loose in a Box ZVN4424ASTZ AEC-Q101 E-Line Joggled 2,000 Taped per Ammo Box Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information ZVN
ZVN
442
442 = Product Type Marking Code 4A
4A
Rounded Face View ZVN4424A 1 of 6 May 2016 Document Number: DS33377 Rev. 5 - 2
