T24. TYPICAL PERFORMANCE CHARACTERISTICS OF T24 CAPACITORS. ELECTRICAL CHARACTERISTICS ITEM. PERFORMANCE CHARACTERISTICS
Modelllinie für dieses Datenblatt
Textversion des Dokuments

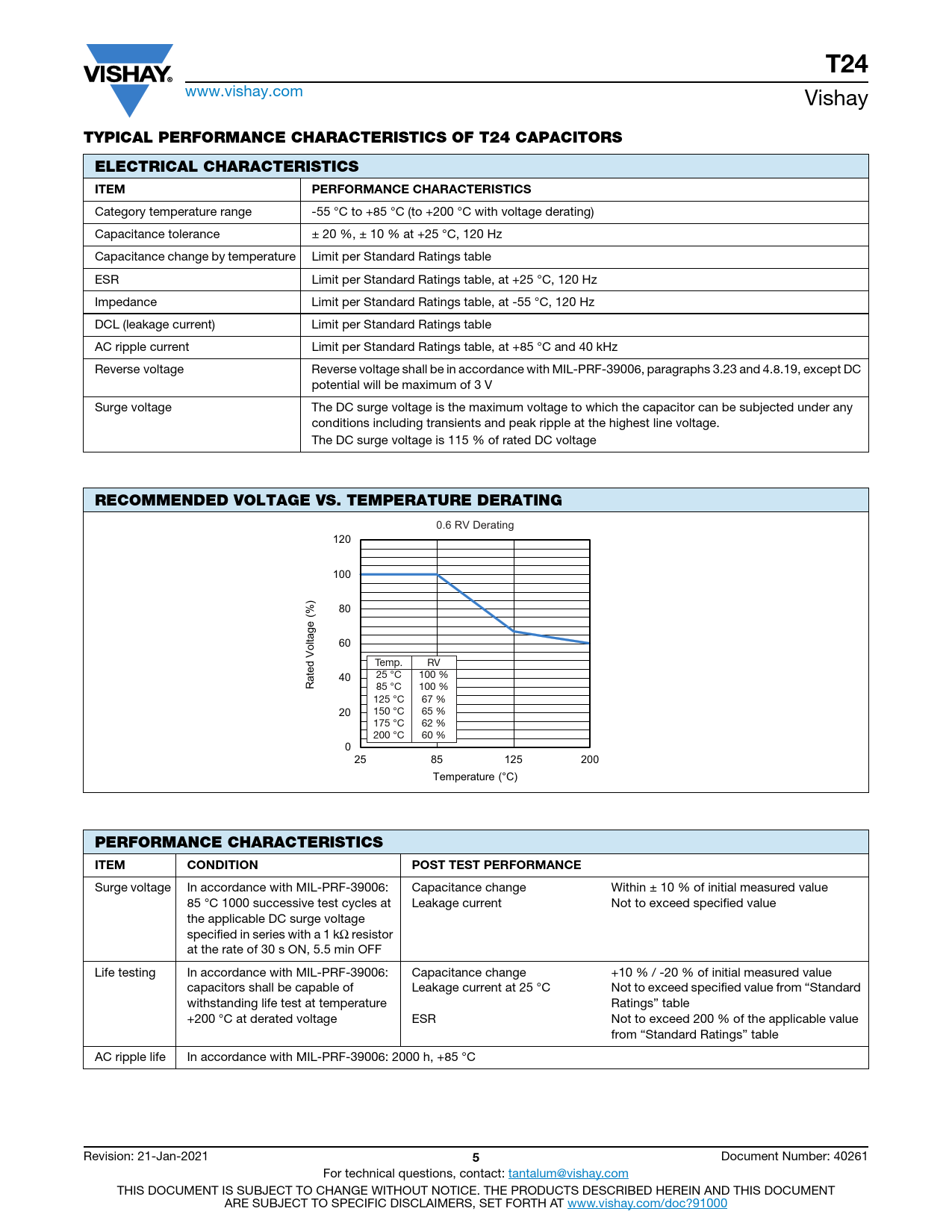

T24
www.vishay.com Vishay
TYPICAL PERFORMANCE CHARACTERISTICS OF T24 CAPACITORS ELECTRICAL CHARACTERISTICS ITEM PERFORMANCE CHARACTERISTICS
Category temperature range -55 °C to +85 °C (to +200 °C with voltage derating) Capacitance tolerance ± 20 %, ± 10 % at +25 °C, 120 Hz Capacitance change by temperature Limit per Standard Ratings table ESR Limit per Standard Ratings table, at +25 °C, 120 Hz Impedance Limit per Standard Ratings table, at -55 °C, 120 Hz DCL (leakage current) Limit per Standard Ratings table AC ripple current Limit per Standard Ratings table, at +85 °C and 40 kHz Reverse voltage Reverse voltage shall be in accordance with MIL-PRF-39006, paragraphs 3.23 and 4.8.19, except DC potential will be maximum of 3 V Surge voltage The DC surge voltage is the maximum voltage to which the capacitor can be subjected under any conditions including transients and peak ripple at the highest line voltage. The DC surge voltage is 115 % of rated DC voltage
RECOMMENDED VOLTAGE VS. TEMPERATURE DERATING
0.6 RV Derating 120 10000 100 ) 80 1000 ne ne ine ltage (% 60 o 1st li 2nd l 2nd li Temp. RV 40 25 °C 100 % 100 Rated V 85 °C 100 % 125 °C 67 % 20 150 °C 65 % 175 °C 62 % 200 °C 60 % 0 10 25 85 125 200 Temperature (°C)
PERFORMANCE CHARACTERISTICS ITEM CONDITION POST TEST PERFORMANCE
Surge voltage In accordance with MIL-PRF-39006: Capacitance change Within ± 10 % of initial measured value 85 °C 1000 successive test cycles at Leakage current Not to exceed specified value the applicable DC surge voltage specified in series with a 1 kΩ resistor at the rate of 30 s ON, 5.5 min OFF Life testing In accordance with MIL-PRF-39006: Capacitance change +10 % / -20 % of initial measured value capacitors shall be capable of Leakage current at 25 °C Not to exceed specified value from “Standard withstanding life test at temperature Ratings” table +200 °C at derated voltage ESR Not to exceed 200 % of the applicable value from “Standard Ratings” table AC ripple life In accordance with MIL-PRF-39006: 2000 h, +85 °C Revision: 21-Jan-2021
5
Document Number: 40261 For technical questions, contact: tantalum@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
