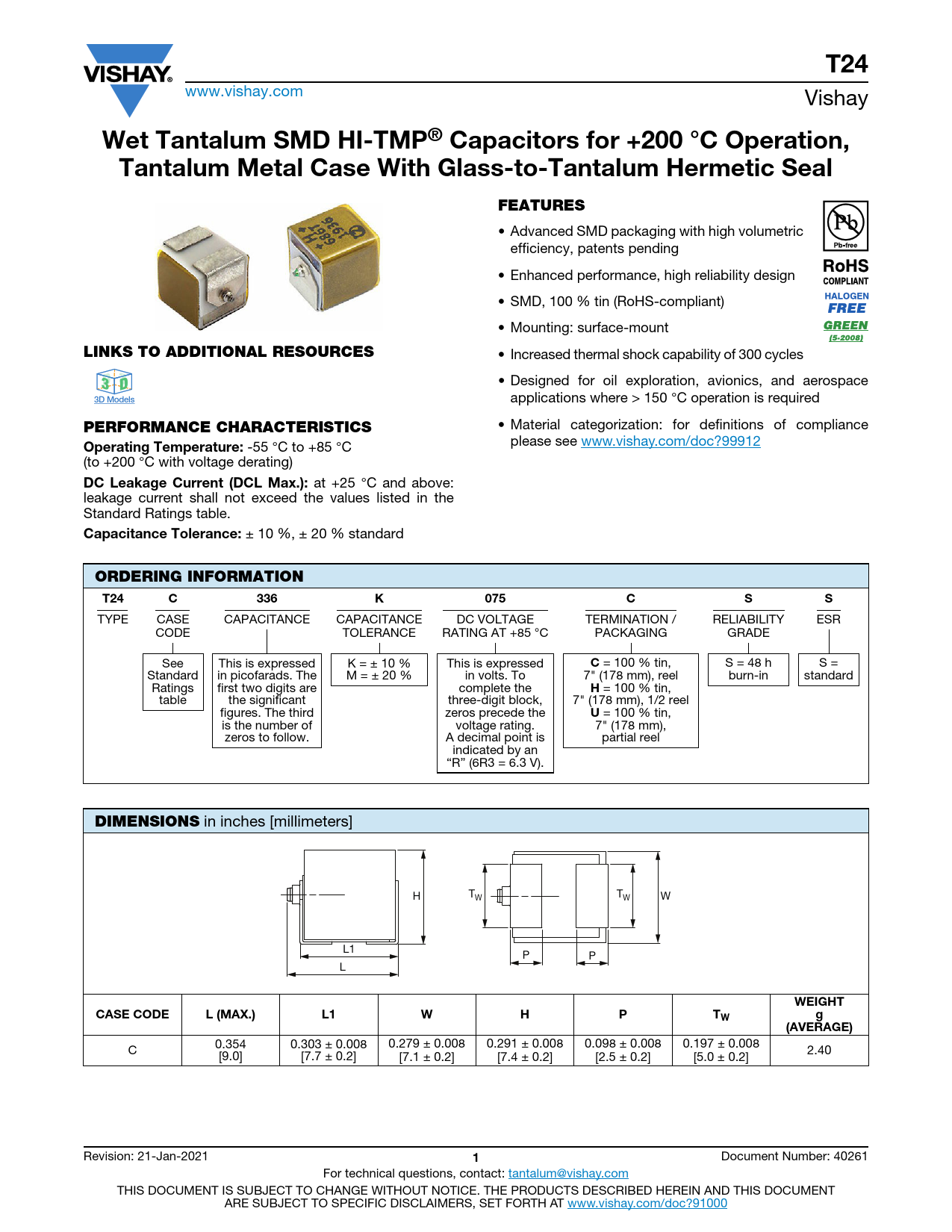

T24. Wet Tantalum SMD HI-TMP® Capacitors for +200 °C Operation,. Tantalum Metal Case With Glass-to-Tantalum Hermetic Seal
Modelllinie für dieses Datenblatt
Textversion des Dokuments
T24
www.vishay.com Vishay
Wet Tantalum SMD HI-TMP® Capacitors for +200 °C Operation, Tantalum Metal Case With Glass-to-Tantalum Hermetic Seal FEATURES
• Advanced SMD packaging with high volumetric efficiency, patents pending • Enhanced performance, high reliability design • SMD, 100 % tin (RoHS-compliant) • Mounting: surface-mount
LINKS TO ADDITIONAL RESOURCES
• Increased thermal shock capability of 300 cycles
D 3
• Designed for oil exploration, avionics, and aerospace
3 D 3D Models
applications where > 150 °C operation is required
PERFORMANCE CHARACTERISTICS
• Material categorization: for definitions of compliance
Operating Temperature:
-55 °C to +85 °C please see www.vishay.com/doc?99912 (to +200 °C with voltage derating)
DC Leakage Current (DCL Max.):
at +25 °C and above: leakage current shall not exceed the values listed in the Standard Ratings table.
Capacitance Tolerance:
± 10 %, ± 20 % standard
ORDERING INFORMATION T24 C 336 K 075 C S S
TYPE CASE CAPACITANCE CAPACITANCE DC VOLTAGE TERMINATION / RELIABILITY ESR CODE TOLERANCE RATING AT +85 °C PACKAGING GRADE See This is expressed K = ± 10 % This is expressed
C
= 100 % tin, S = 48 h S = Standard in picofarads. The M = ± 20 % in volts. To 7" (178 mm), reel burn-in standard Ratings first two digits are complete the
H
= 100 % tin, table the significant three-digit block, 7" (178 mm), 1/2 reel figures. The third zeros precede the
U
= 100 % tin, is the number of voltage rating. 7" (178 mm), zeros to follow. A decimal point is partial reel indicated by an “R” (6R3 = 6.3 V).
DIMENSIONS
in inches [millimeters] H T T W W W L1 P P L
WEIGHT CASE CODE L (MAX.) L1 W H P TW g (AVERAGE)
0.354 0.303 ± 0.008 0.279 ± 0.008 0.291 ± 0.008 0.098 ± 0.008 0.197 ± 0.008 C 2.40 [9.0] [7.7 ± 0.2] [7.1 ± 0.2] [7.4 ± 0.2] [2.5 ± 0.2] [5.0 ± 0.2] Revision: 21-Jan-2021
1
