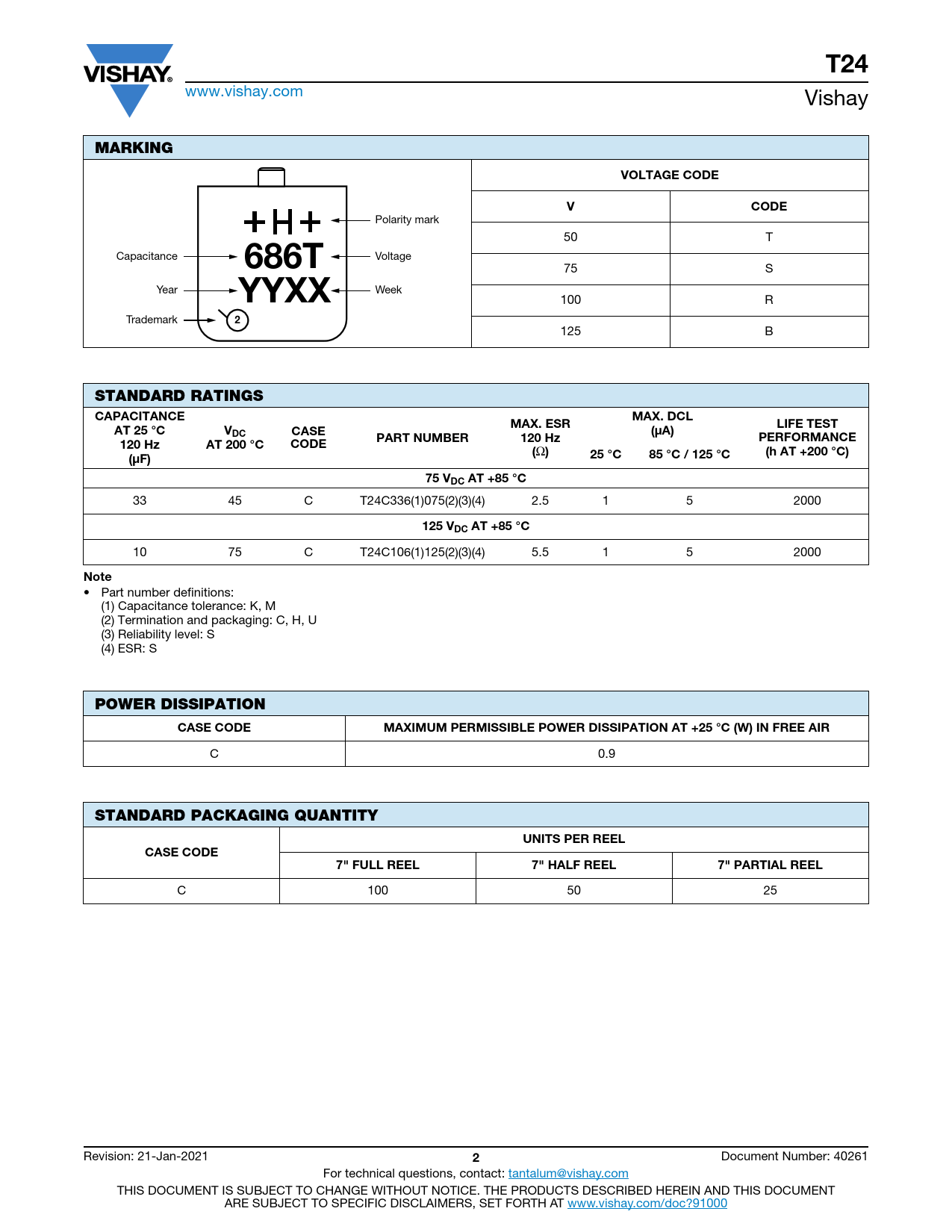

T24
www.vishay.com Vishay
MARKING VOLTAGE CODE V CODE
Polarity mark 50 T Capacitance
686T
Voltage 75 S Year
YYXX
Week 100 R Trademark
2
125 B
STANDARD RATINGS CAPACITANCE MAX. DCL MAX. ESR LIFE TEST AT 25 °C VDC CASE (μA) PART NUMBER 120 Hz PERFORMANCE 120 Hz AT 200 °C CODE (
Ω
) (h AT +200 °C) (μF) 25 °C 85 °C / 125 °C 75 VDC AT +85 °C
33 45 C T24C336(1)075(2)(3)(4) 2.5 1 5 2000
125 VDC AT +85 °C
10 75 C T24C106(1)125(2)(3)(4) 5.5 1 5 2000
Note
• Part number definitions: (1) Capacitance tolerance: K, M (2) Termination and packaging: C, H, U (3) Reliability level: S (4) ESR: S
POWER DISSIPATION CASE CODE MAXIMUM PERMISSIBLE POWER DISSIPATION AT +25 °C (W) IN FREE AIR
C 0.9
STANDARD PACKAGING QUANTITY UNITS PER REEL CASE CODE 7" FULL REEL 7" HALF REEL 7" PARTIAL REEL
C 100 50 25 Revision: 21-Jan-2021
2
Document Number: 40261 For technical questions, contact: tantalum@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
