Datasheet Diodes DXTN80060DFGQ-7 — Datenblatt

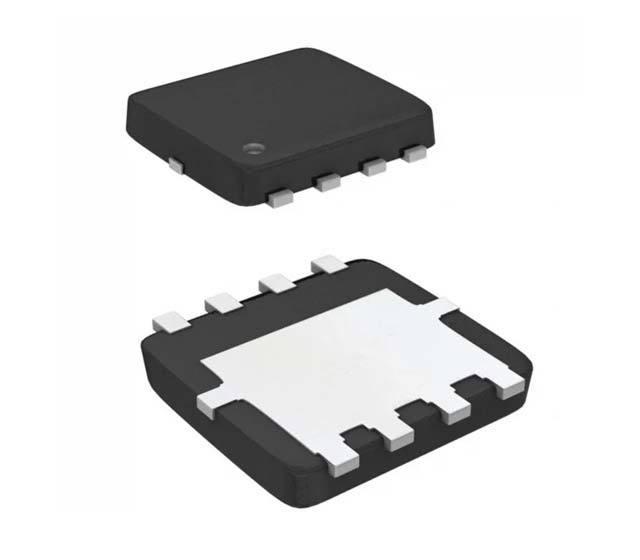

DXTN80060DFGQ Green 60V NPN ULTRA-LOW VCE(sat) TRANSISTOR IN PowerDI3333-8 Features Mechanical Data •
•
•
•
•
• BVCEO > 60V
BVEBO > 8V
Continuous Current IC to 6.5A
Peak Pulse Current ICM to 15A
Ultra-Low Saturation Voltage VCE(sat) < 40mV @ 1A
High Current RCE(sat) = 16mΩ Typical •
• • Small Form Factor Thermally Efficient Package
Enables Higher Density End Products
Wettable Flank for Improved Optical Inspection
Rated to +175°C – Ideal for High-Temperature Environments
Complementary PNP Type: DXTP80060DFGQ
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
The DXTN80060DFGQ is suitable for automotive
applications requiring specific change control; this part is
AEC-Q101 qualified, PPAP capable, and manufactured in
IATF 16949 certified facilities.
