Datasheet DXTN80060DFGQ (Diodes)
| Hersteller | Diodes |
| Beschreibung | NPN, 60V, 6.5A, PowerDI3333-8 |
| Seiten / Seite | 8 / 1 — DXTN80060DFGQ. Green. 60V NPN ULTRA-LOW VCE(sat) TRANSISTOR IN … |
| Dateiformat / Größe | PDF / 659 Kb |
| Dokumentensprache | Englisch |
DXTN80060DFGQ. Green. 60V NPN ULTRA-LOW VCE(sat) TRANSISTOR IN PowerDI3333-8. Features. Mechanical Data. Applications
Modelllinie für dieses Datenblatt
Textversion des Dokuments

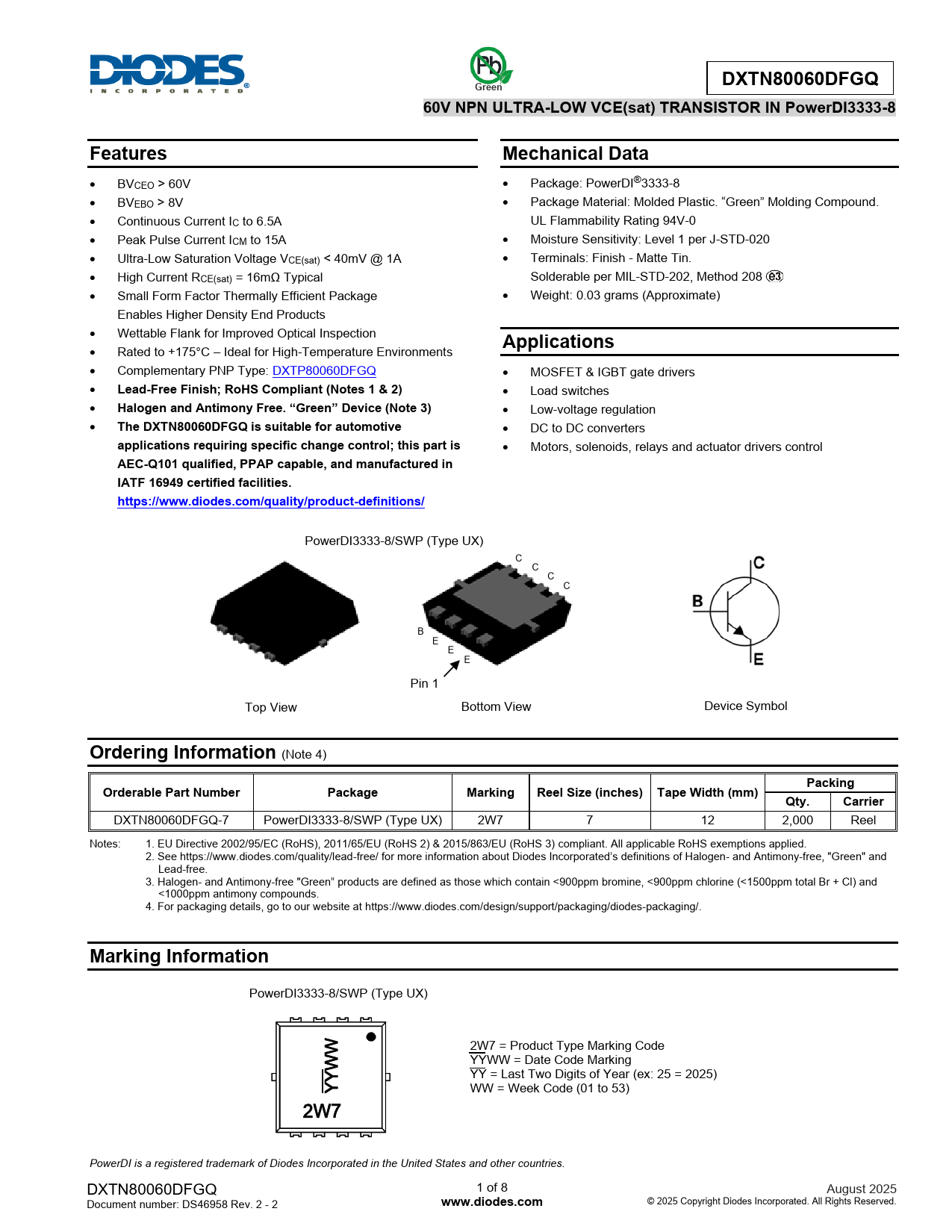

DXTN80060DFGQ Green 60V NPN ULTRA-LOW VCE(sat) TRANSISTOR IN PowerDI3333-8 Features Mechanical Data
• BVCEO > 60V • Package: PowerDI® 3333-8 • BVEBO > 8V • Package Material: Molded Plastic. “Green” Molding Compound. • Continuous Current IC to 6.5A UL Flammability Rating 94V-0 • Peak Pulse Current ICM to 15A • Moisture Sensitivity: Level 1 per J-STD-020 • Ultra-Low Saturation Voltage VCE(sat) < 40mV @ 1A • Terminals: Finish - Matte Tin. • High Current RCE(sat) = 16mΩ Typical Solderable per MIL-STD-202, Method 208 • Small Form Factor Thermally Efficient Package • Weight: 0.03 grams (Approximate) Enables Higher Density End Products • Wettable Flank for Improved Optical Inspection
Applications
• Rated to +175°C – Ideal for High-Temperature Environments • Complementary PNP Type: DXTP80060DFGQ • MOSFET & IGBT gate drivers •
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Load switches •
Halogen and Antimony Free. “Green” Device (Note 3)
• Low-voltage regulation •
The DXTN80060DFGQ is suitable for automotive
• DC to DC converters
applications requiring specific change control; this part is
• Motors, solenoids, relays and actuator drivers control
AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/
PowerDI3333-8/SWP (Type UX) C C C C B E E E Pin 1 Top View Bottom View Device Symbol
Ordering Information
(Note 4)
Packing Orderable Part Number Package Marking Reel Size (inches) Tape Width (mm) Qty. Carrier
DXTN80060DFGQ-7 PowerDI3333-8/SWP (Type UX) 2W7 7 12 2,000 Reel Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
PowerDI3333-8/SWP (Type UX) 2W7 = Product Type Marking Code W YYWW = Date Code Marking W Y YY = Last Two Digits of Year (ex: 25 = 2025) Y WW = Week Code (01 to 53) 2W7 PowerDI is a registered trademark of Diodes Incorporated in the United States and other countries. DXTN80060DFGQ 1 of 8 August 2025 Document number: DS46958 Rev. 2 - 2
www.diodes.com
© 2025 Copyright Diodes Incorporated. All Rights Reserved.
