Datasheet IRFD9020 (Vishay) - 3
| Hersteller | Vishay |
| Beschreibung | P-Channel Power MOSFET |
| Seiten / Seite | 9 / 3 — IRFD9020. TYPICAL CHARACTERISTICS. Fig. 1 - Typical Output … |
| Dateiformat / Größe | PDF / 266 Kb |
| Dokumentensprache | Englisch |
IRFD9020. TYPICAL CHARACTERISTICS. Fig. 1 - Typical Output Characteristics, TA = 25 °C
Modelllinie für dieses Datenblatt
Textversion des Dokuments
IRFD9020
www.vishay.com Vishay Siliconix
TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted) TA = 25 °C

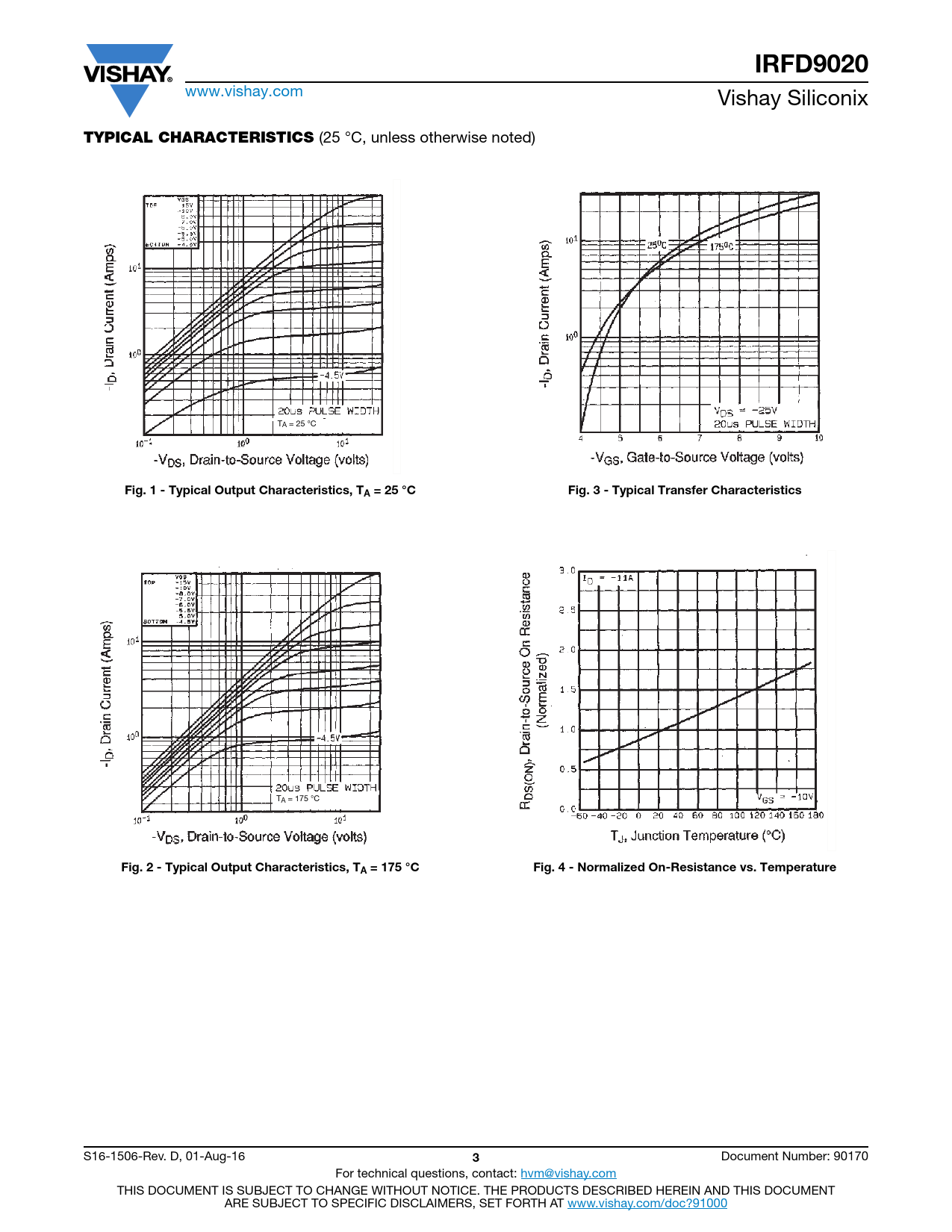

Fig. 1 - Typical Output Characteristics, TA = 25 °C Fig. 3 - Typical Transfer Characteristics
TA = 175 °C
Fig. 2 - Typical Output Characteristics, TA = 175 °C Fig. 4 - Normalized On-Resistance vs. Temperature
S16-1506-Rev. D, 01-Aug-16
3
Document Number: 90170 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Siliconix
TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted) TA = 25 °C
Fig. 1 - Typical Output Characteristics, TA = 25 °C Fig. 3 - Typical Transfer Characteristics
TA = 175 °C
Fig. 2 - Typical Output Characteristics, TA = 175 °C Fig. 4 - Normalized On-Resistance vs. Temperature
S16-1506-Rev. D, 01-Aug-16
3
Document Number: 90170 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
