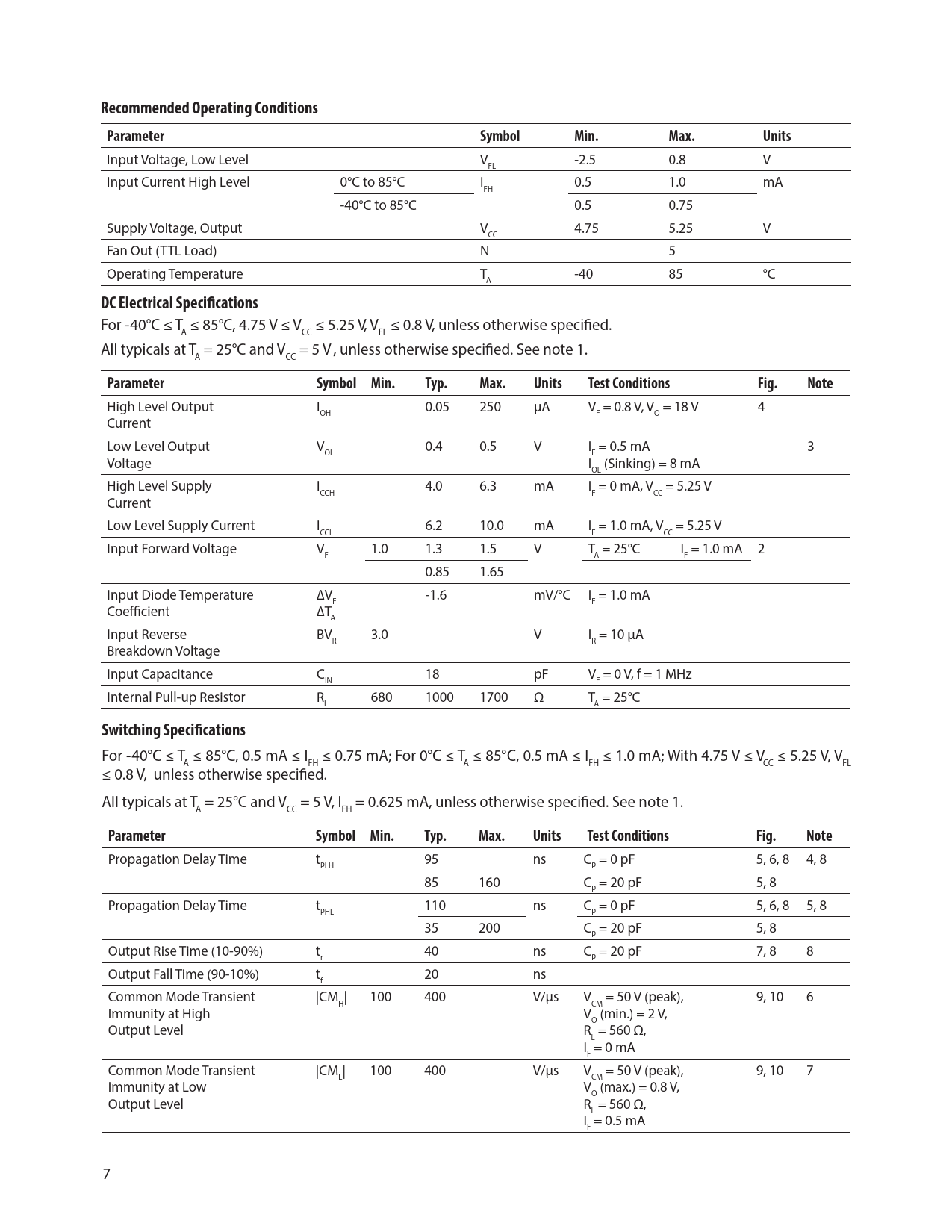

Recommended Operating Conditions. Parameter. Symbol. Min. Max. Units. DC Electrical Specifications. Symbol Min. Typ. Test Conditions. Fig
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Recommended Operating Conditions Parameter Symbol Min. Max. Units
Input Voltage, Low Level V -2.5 0.8 V FL Input Current High Level 0°C to 85°C I 0.5 1.0 mA FH -40°C to 85°C 0.5 0.75 Supply Voltage, Output V 4.75 5.25 V CC Fan Out (TTL Load) N 5 Operating Temperature T -40 85 °C A
DC Electrical Specifications
For -40°C ≤ T ≤ 85°C, 4.75 V ≤ V ≤ 5.25 V, V ≤ 0.8 V, unless otherwise specified. A CC FL All typicals at T = 25°C and V = 5 V , unless otherwise specified. See note 1. A CC
Parameter Symbol Min. Typ. Max. Units Test Conditions Fig. Note
High Level Output I 0.05 250 µA V = 0.8 V, V = 18 V 4 OH F O Current Low Level Output V 0.4 0.5 V I = 0.5 mA 3 OL F Voltage I (Sinking) = 8 mA OL High Level Supply I 4.0 6.3 mA I = 0 mA, V = 5.25 V CCH F CC Current Low Level Supply Current I 6.2 10.0 mA I = 1.0 mA, V = 5.25 V CCL F CC Input Forward Voltage V 1.0 1.3 1.5 V T = 25°C I = 1.0 mA 2 F A F 0.85 1.65 Input Diode Temperature ∆V -1.6 mV/°C I = 1.0 mA F F Coefficient ∆TA Input Reverse BV 3.0 V I = 10 µA R R Breakdown Voltage Input Capacitance C 18 pF V = 0 V, f = 1 MHz IN F Internal Pull-up Resistor R 680 1000 1700 Ω T = 25°C L A
Switching Specifications
For -40°C ≤ T ≤ 85°C, 0.5 mA ≤ I ≤ 0.75 mA; For 0°C ≤ T ≤ 85°C, 0.5 mA ≤ I ≤ 1.0 mA; With 4.75 V ≤ V ≤ 5.25 V, V A FH A FH CC FL ≤ 0.8 V, unless otherwise specified. All typicals at T = 25°C and V = 5 V, I = 0.625 mA, unless otherwise specified. See note 1. A CC FH
Parameter Symbol Min. Typ. Max. Units Test Conditions Fig. Note
Propagation Delay Time t 95 ns C = 0 pF 5, 6, 8 4, 8 PLH P 85 160 C = 20 pF 5, 8 P Propagation Delay Time t 110 ns C = 0 pF 5, 6, 8 5, 8 PHL P 35 200 C = 20 pF 5, 8 P Output Rise Time (10-90%) t 40 ns C = 20 pF 7, 8 8 r P Output Fall Time (90-10%) t 20 ns f Common Mode Transient |CM | 100 400 V/µs V = 50 V (peak), 9, 10 6 H CM Immunity at High V (min.) = 2 V, O Output Level R = 560 Ω, L I = 0 mA F Common Mode Transient |CM | 100 400 V/µs V = 50 V (peak), 9, 10 7 L CM Immunity at Low V (max.) = 0.8 V, O Output Level R = 560 Ω, L I = 0.5 mA F 7
