Datasheet HCPL-2300 (Broadcom) - 9
| Hersteller | Broadcom |
| Beschreibung | 8 MBd Low Input Current Optocoupler |
| Seiten / Seite | 14 / 9 — Figure 6. Typical propagation delay vs. forward. Figure 7. Typical rise, … |
| Dateiformat / Größe | PDF / 329 Kb |
| Dokumentensprache | Englisch |
Figure 6. Typical propagation delay vs. forward. Figure 7. Typical rise, fall time vs. temperature. current
Modelllinie für dieses Datenblatt
Textversion des Dokuments

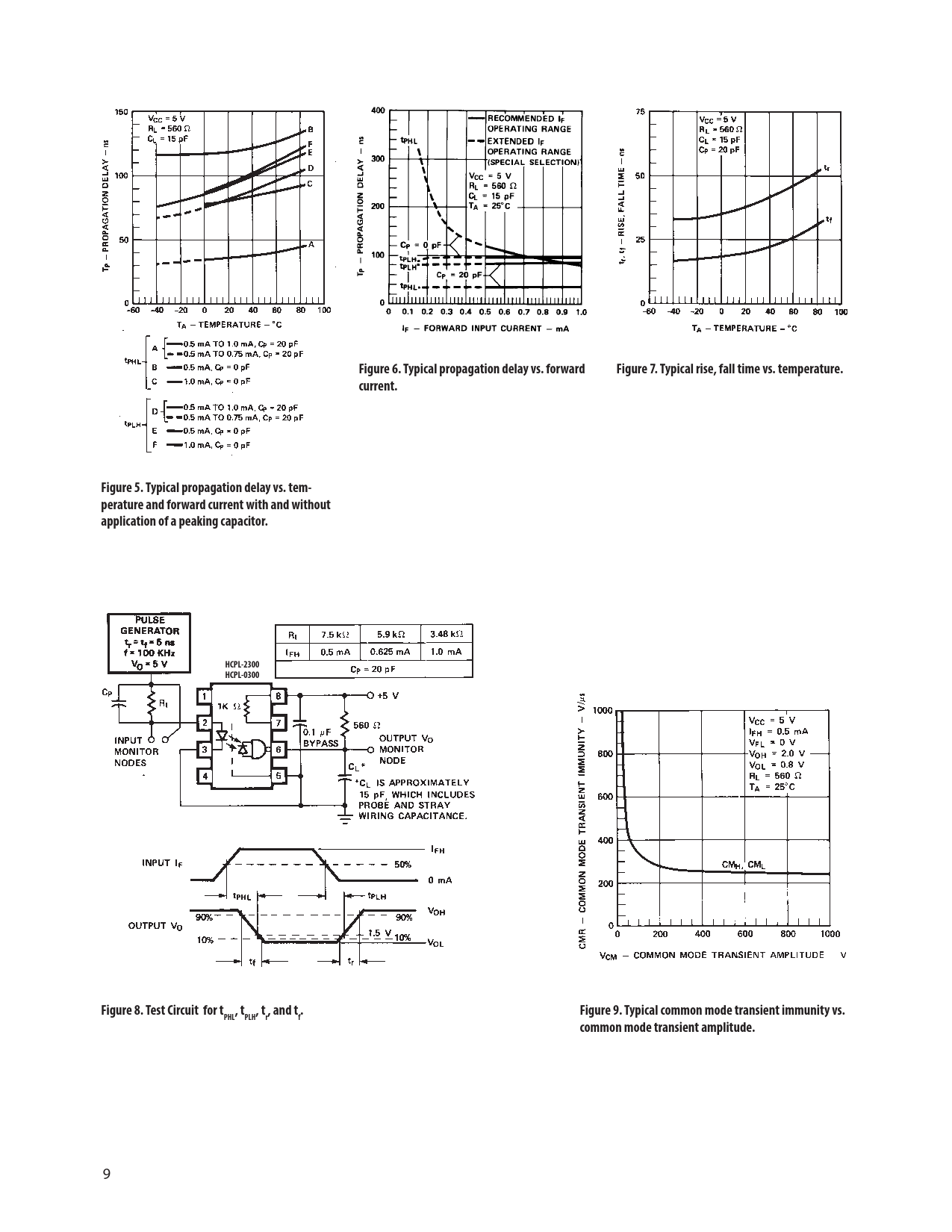

Figure 6. Typical propagation delay vs. forward Figure 7. Typical rise, fall time vs. temperature. current. Figure 5. Typical propagation delay vs. tem- perature and forward current with and without application of a peaking capacitor. HCPL-2300 HCPL-0300 Figure 8. Test Circuit for t , t , t , and t . Figure 9. Typical common mode transient immunity vs. PHL PLH r f common mode transient amplitude.
