eGaN® IC DATASHEET
EPC23110

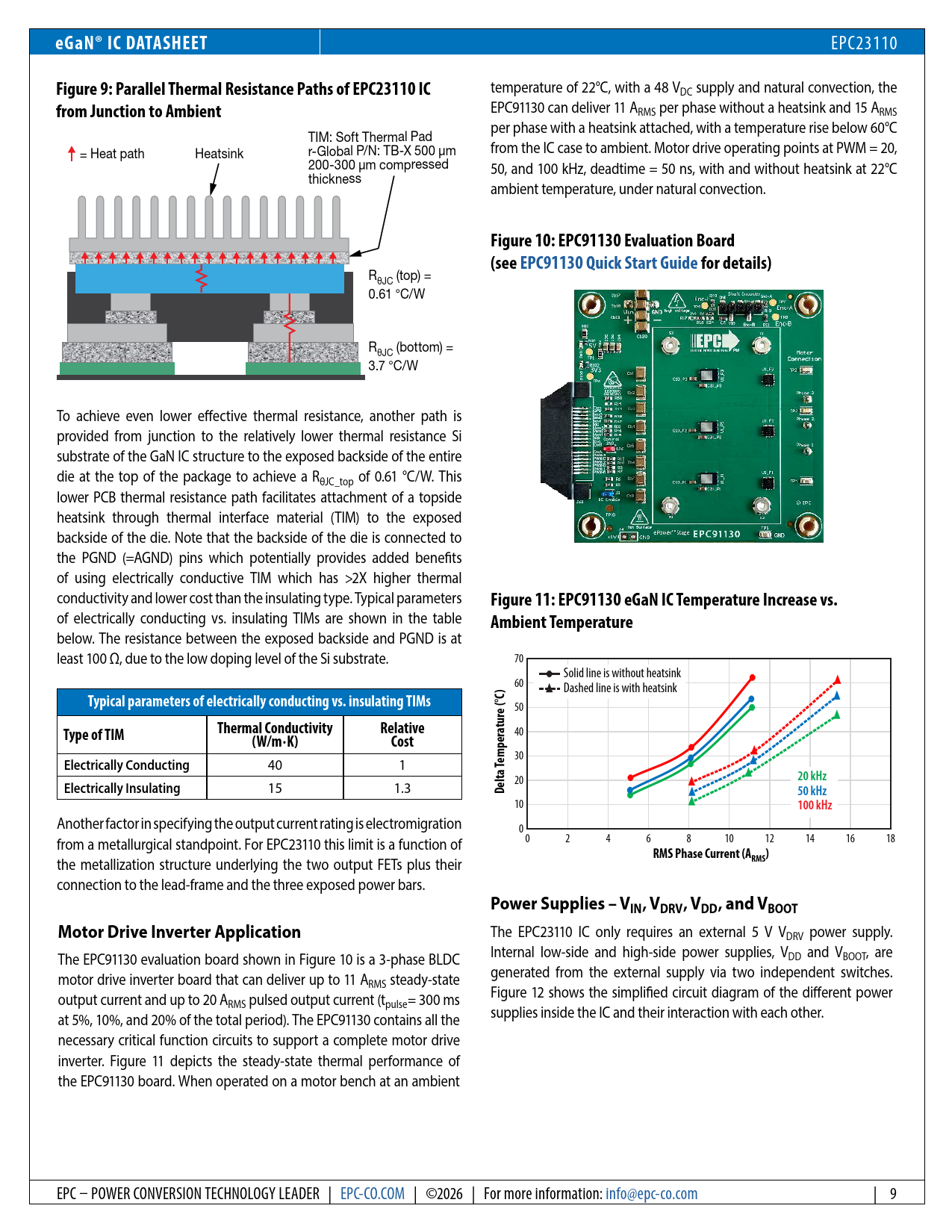

Figure 9: Parallel Thermal Resistance Paths of EPC23110 IC
temperature of 22°C, with a 48 VDC supply and natural convection, the
from Junction to Ambient
EPC91130 can deliver 11 ARMS per phase without a heatsink and 15 ARMS per phase with a heatsink attached, with a temperature rise below 60°C TIM: Soft Thermal Pad = Heat path Heatsink r-Global P/N: TB-X 500 µm from the IC case to ambient. Motor drive operating points at PWM = 20, 200-300 µm compressed 50, and 100 kHz, deadtime = 50 ns, with and without heatsink at 22°C thickness ambient temperature, under natural convection.
Figure 10: EPC91130 Evaluation Board (see EPC91130 Quick Start Guide for details)
RθJC (top) = 0.61 °C/W RθJC (bottom) = 3.7 °C/W To achieve even lower effective thermal resistance, another path is provided from junction to the relatively lower thermal resistance Si substrate of the GaN IC structure to the exposed backside of the entire die at the top of the package to achieve a RθJC_top of 0.61 °C/W. This lower PCB thermal resistance path facilitates attachment of a topside heatsink through thermal interface material (TIM) to the exposed backside of the die. Note that the backside of the die is connected to the PGND (=AGND) pins which potential y provides added benefits of using electrical y conductive TIM which has >2X higher thermal conductivity and lower cost than the insulating type. Typical parameters
Figure 11: EPC91130 eGaN IC Temperature Increase vs.
of electrical y conducting vs. insulating TIMs are shown in the table
Ambient Temperature
below. The resistance between the exposed backside and PGND is at
EPC23110 @ 26°C Ambient Temperature
least 100 Ω, due to the low doping level of the Si substrate. 70 Solid line is without heatsink 60
)
Dashed line is with heatsink
Typical parameters of electrically conducting vs. insulating TIMs e (°C
50
tur Type of TIM Thermal Conductivity Relative
40
(W/m · K) Cost
30
Electrically Conducting
40 1
empera 20 kHz Electrically Insulating
15 1.3 20
Delta T 50 kHz
10
100 kHz
Another factor in specifying the output current rating is electromigration 0 from a metal urgical standpoint. For EPC23110 this limit is a function of 0 2 4 6 8 10 12 14 16 18
RMS Phase Current (A
the metal ization structure underlying the two output FETs plus their
RMS)
connection to the lead-frame and the three exposed power bars.
Power Supplies – VIN , VDRV , VDD , and VBOOT Motor Drive Inverter Application
The EPC23110 IC only requires an external 5 V VDRV power supply. Internal low-side and high-side power supplies, VDD and VBOOT, are The EPC91130 evaluation board shown in Figure 10 is a 3-phase BLDC generated from the external supply via two independent switches. motor drive inverter board that can deliver up to 11 ARMS steady-state Figure 12 shows the simplified circuit diagram of the different power output current and up to 20 ARMS pulsed output current (tpulse= 300 ms supplies inside the IC and their interaction with each other. at 5%, 10%, and 20% of the total period). The EPC91130 contains all the necessary critical function circuits to support a complete motor drive inverter. Figure 11 depicts the steady-state thermal performance of the EPC91130 board. When operated on a motor bench at an ambient EPC – POWER CONVERSION TECHNOLOGY LEADER | EPC-CO.COM | ©2026 | For more information: info@epc-co.com | 9
