Datasheet 34 THE (Vishay) - 6
| Hersteller | Vishay |
| Beschreibung | Ten Turns Servo or Bushing Mount Hall Effect Sensor in Size 09 (22.2 mm) |
| Seiten / Seite | 7 / 6 — 34 THE. BUSHING AND SERVO TYPES. SINGLE SPI OUTPUT. REDUNDANT SPI OUTPUT. … |
| Dateiformat / Größe | PDF / 231 Kb |
| Dokumentensprache | Englisch |
34 THE. BUSHING AND SERVO TYPES. SINGLE SPI OUTPUT. REDUNDANT SPI OUTPUT. WIRE COLOR. OUTPUT
Modelllinie für dieses Datenblatt
Textversion des Dokuments

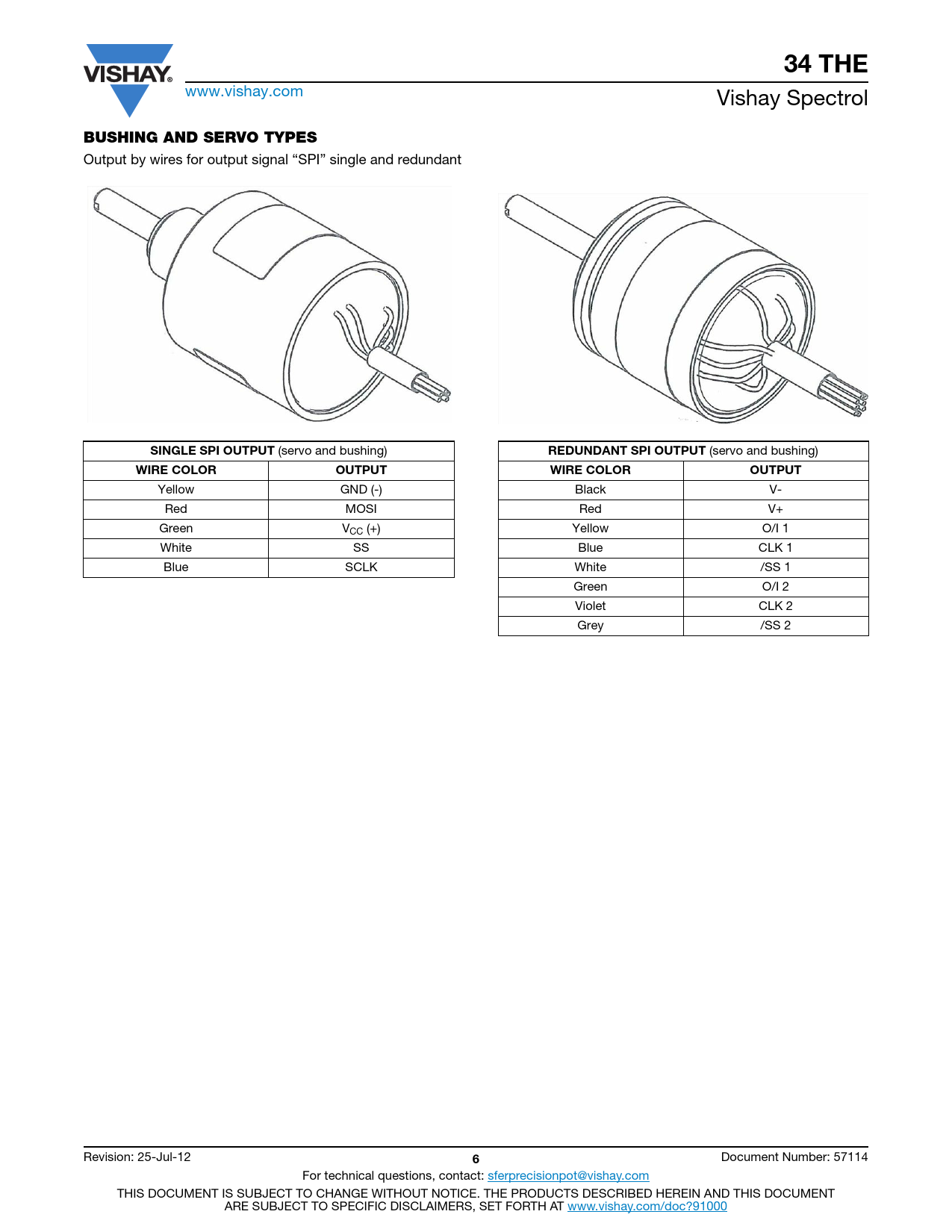

34 THE
www.vishay.com Vishay Spectrol
BUSHING AND SERVO TYPES
Output by wires for output signal “SPI” single and redundant
SINGLE SPI OUTPUT
(servo and bushing)
REDUNDANT SPI OUTPUT
(servo and bushing)
WIRE COLOR OUTPUT WIRE COLOR OUTPUT
Yellow GND (-) Black V- Red MOSI Red V+ Green VCC (+) Yellow O/I 1 White SS Blue CLK 1 Blue SCLK White /SS 1 Green O/I 2 Violet CLK 2 Grey /SS 2 Revision: 25-Jul-12
6
Document Number: 57114 For technical questions, contact: sferprecisionpot@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
