Datasheet A4988 (Allegro) - 5
| Hersteller | Allegro |
| Beschreibung | DMOS Microstepping Driver with Integrated Translator, 1/16th Step Resolution, and Automatic Decay Selection in 28-QFN (4x5) package |
| Seiten / Seite | 20 / 5 — DMOS Microstepping Driver. A4988. with Translator and Overcurrent … |
| Dateiformat / Größe | PDF / 1.2 Mb |
| Dokumentensprache | Englisch |

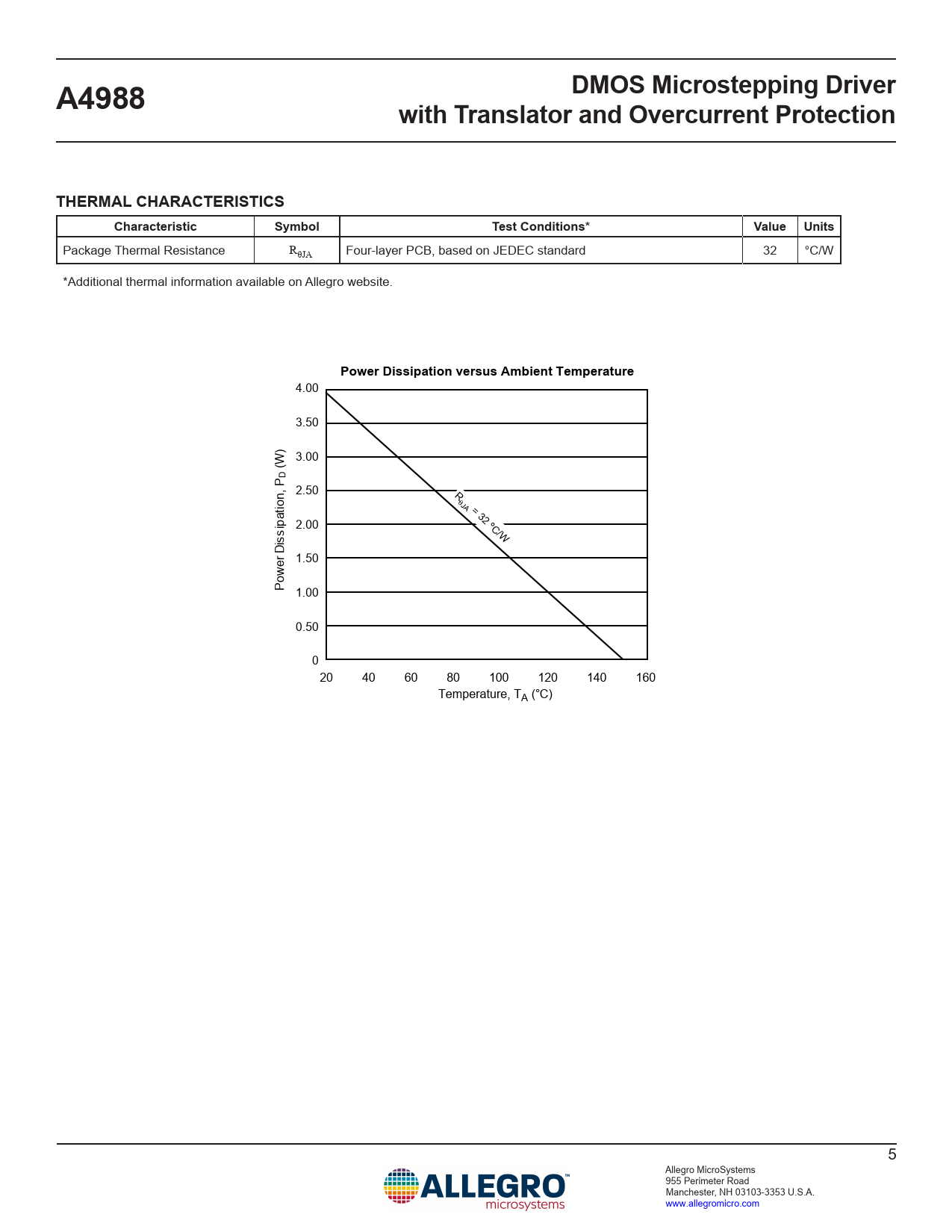

DMOS Microstepping Driver. A4988. with Translator and Overcurrent Protection. THERMAL CHARACTERISTICS. Characteristic. Symbol
Modelllinie für dieses Datenblatt
Textversion des Dokuments
DMOS Microstepping Driver A4988 with Translator and Overcurrent Protection THERMAL CHARACTERISTICS Characteristic Symbol Test Conditions* Value Units
Package Thermal Resistance RθJA Four-layer PCB, based on JEDEC standard 32 °C/W *Additional thermal information available on Allegro website.
Power Dissipation versus Ambient Temperature
4.00 3.50 3.00 (W)D 2.50 RθJA = 3 2.00 2 ºC/W Dissipation, P 1.50 Power 1.00 0.50 0 20 40 60 80 100 120 140 160 Temperature, TA (°C) 5 Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com
Package Thermal Resistance RθJA Four-layer PCB, based on JEDEC standard 32 °C/W *Additional thermal information available on Allegro website.
Power Dissipation versus Ambient Temperature
4.00 3.50 3.00 (W)D 2.50 RθJA = 3 2.00 2 ºC/W Dissipation, P 1.50 Power 1.00 0.50 0 20 40 60 80 100 120 140 160 Temperature, TA (°C) 5 Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com
