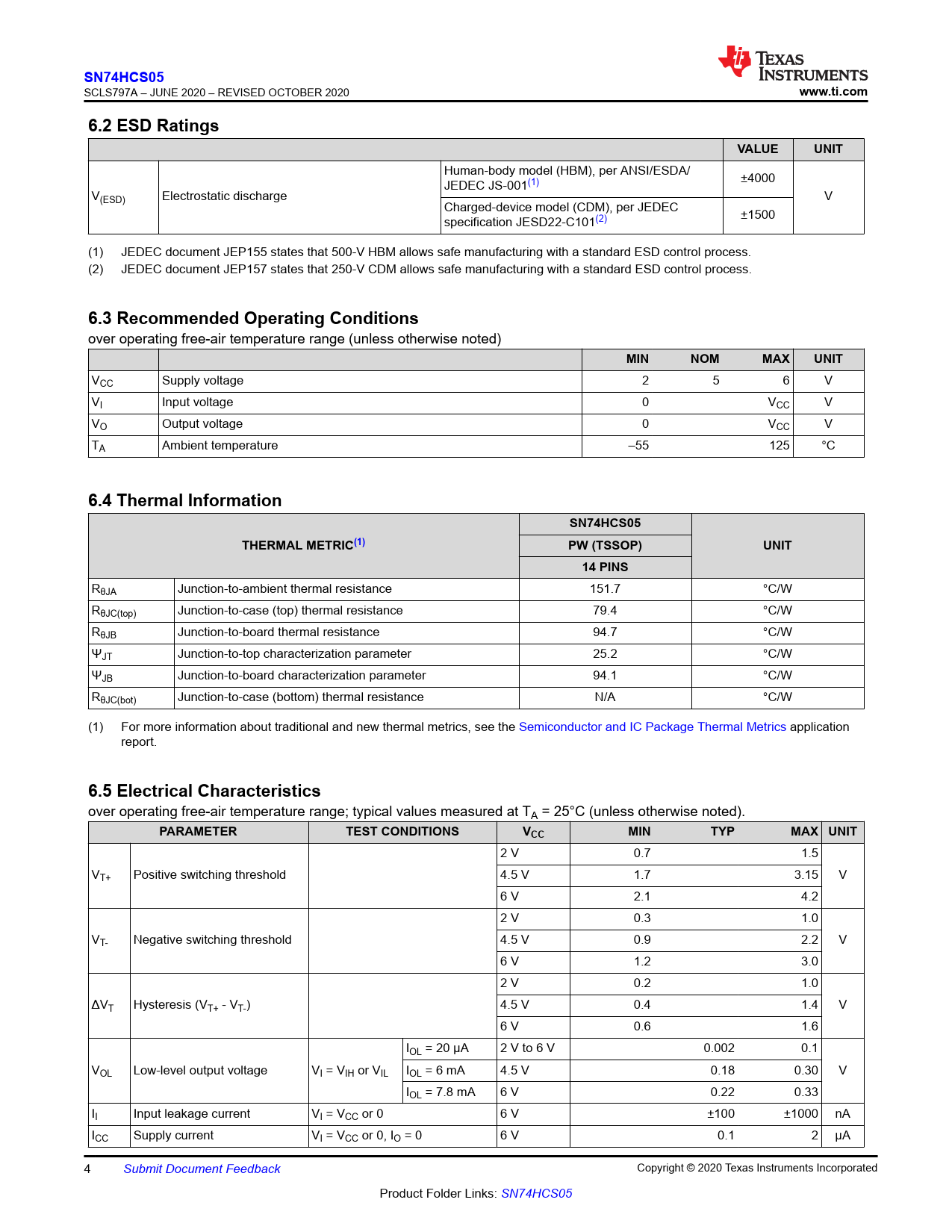

SN74HCS05
SCLS797A – JUNE 2020 – REVISED OCTOBER 2020
www.ti.com 6.2 ESD Ratings VALUE UNIT
Human-body model (HBM), per ANSI/ESDA/ JEDEC JS-001(1) ±4000 V(ESD) Electrostatic discharge V Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±1500 (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VCC Supply voltage 2 5 6 V VI Input voltage 0 VCC V VO Output voltage 0 VCC V TA Ambient temperature –55 125 °C
6.4 Thermal Information SN74HCS05 THERMAL METRIC(1) PW (TSSOP) UNIT 14 PINS
RθJA Junction-to-ambient thermal resistance 151.7 °C/W RθJC(top) Junction-to-case (top) thermal resistance 79.4 °C/W RθJB Junction-to-board thermal resistance 94.7 °C/W ΨJT Junction-to-top characterization parameter 25.2 °C/W ΨJB Junction-to-board characterization parameter 94.1 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
