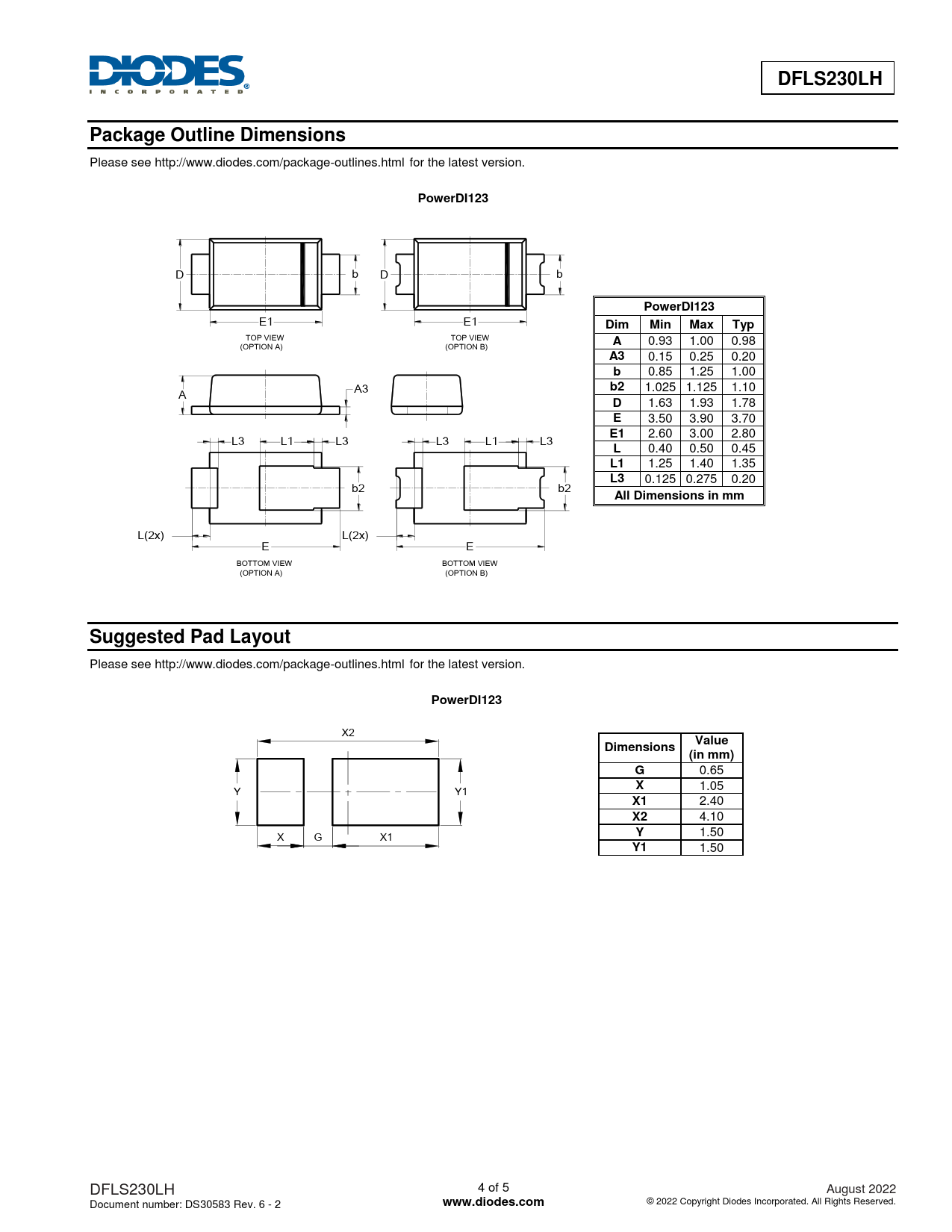

DFLS230LH Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123
D b D b
PowerDI123
E1 E1
Dim Min Max Typ
TOP VIEW TOP VIEW (OPTION A) (OPTION B)
A
0.93 1.00 0.98
A3
0.15 0.25 0.20
b
0.85 1.25 1.00 A A3
b2
1.025 1.125 1.10
D
1.63 1.93 1.78
E
3.50 3.90 3.70 L3 L1 L3 L3 L1 L3
E1
2.60 3.00 2.80
L
0.40 0.50 0.45
L1
1.25 1.40 1.35
L3
b2 b2 0.125 0.275 0.20
All Dimensions in mm
L(2x) L(2x) E E BOTTOM VIEW BOTTOM VIEW (OPTION A) (OPTION B)
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123
X2
Value Dimensions (in mm) G
0.65 Y Y1
X
1.05
X1
2.40
X2
4.10 X G X1
Y
1.50
Y1
1.50 DFLS230LH 4 of 5 August 2022 Document number: DS30583 Rev. 6 - 2
