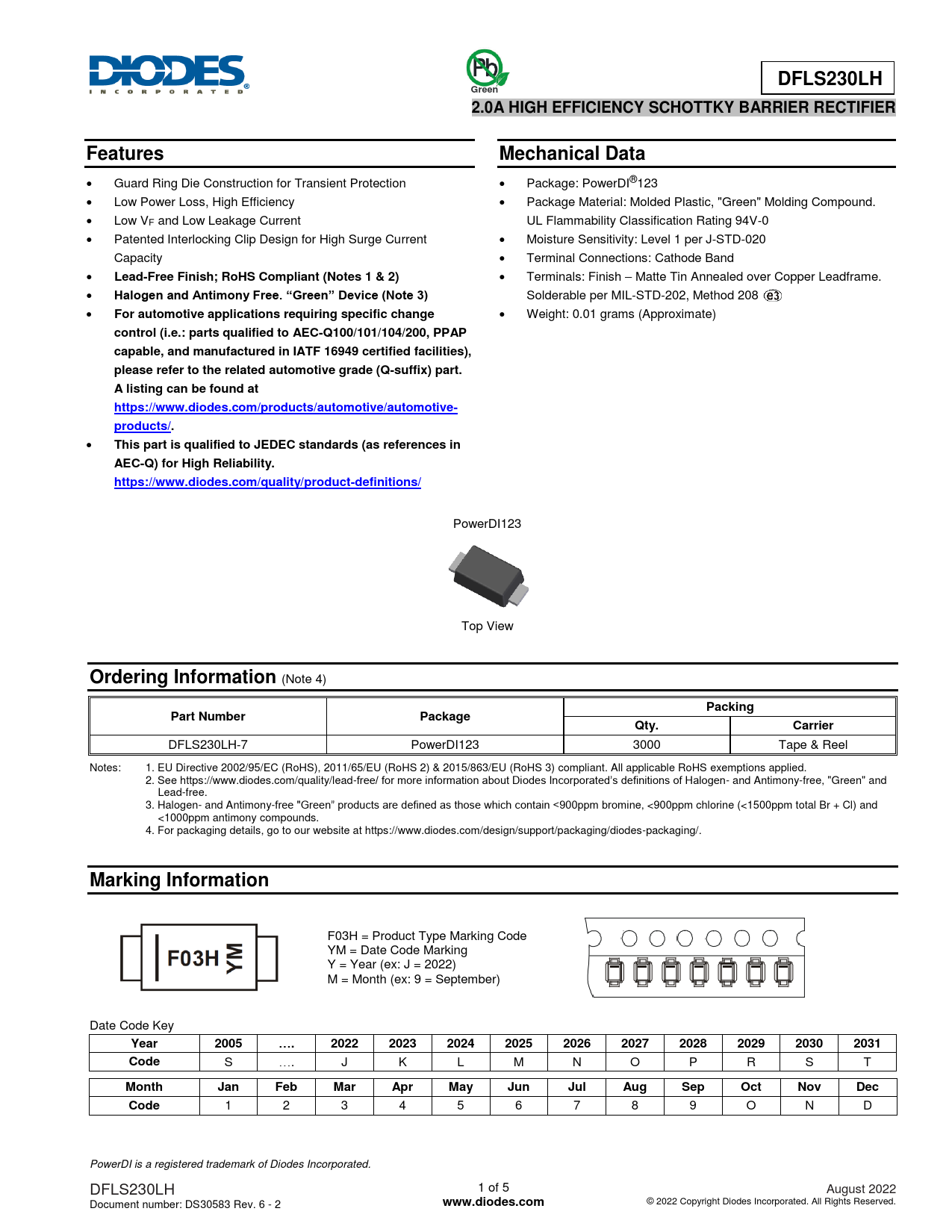

DFLS230LH. Green. 2.0A HIGH EFFICIENCY SCHOTTKY BARRIER RECTIFIER. Features. Mechanical Data
Modelllinie für dieses Datenblatt
Textversion des Dokuments
DFLS230LH Green 2.0A HIGH EFFICIENCY SCHOTTKY BARRIER RECTIFIER Features Mechanical Data
Guard Ring Die Construction for Transient Protection Package: PowerDI® 123 Low Power Loss, High Efficiency Package Material: Molded Plastic, "Green" Molding Compound. Low VF and Low Leakage Current UL Flammability Classification Rating 94V-0 Patented Interlocking Clip Design for High Surge Current Moisture Sensitivity: Level 1 per J-STD-020 Capacity Terminal Connections: Cathode Band
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Halogen and Antimony Free. “Green” Device (Note 3)
Solderable per MIL-STD-202, Method 208
For automotive applications requiring specific change
Weight: 0.01 grams (Approximate)
control (i.e.: parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://www.diodes.com/products/automotive/automotive- products/. This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/
PowerDI123 Top View
Ordering Information
(Note 4)
Packing Part Number Package Qty. Carrier
DFLS230LH-7 PowerDI123 3000 Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
F03H = Product Type Marking Code YM = Date Code Marking Y = Year (ex: J = 2022) M = Month (ex: 9 = September) Date Code Key
Year 2005 …. 2022 2023 2024 2025 2026 2027 2028 2029 2030 2031 Code
S …. J K L M N O P R S T
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D PowerDI is a registered trademark of Diodes Incorporated. DFLS230LH 1 of 5 August 2022 Document number: DS30583 Rev. 6 - 2
www.diodes.com
© 2022 Copyright Diodes Incorporated. All Rights Reserved.
