HT75Rxx-7. 30V, 150mA TinyPowerTM LDO with Protections. Features. Applications. General Description
Modelllinie für dieses Datenblatt
Textversion des Dokuments

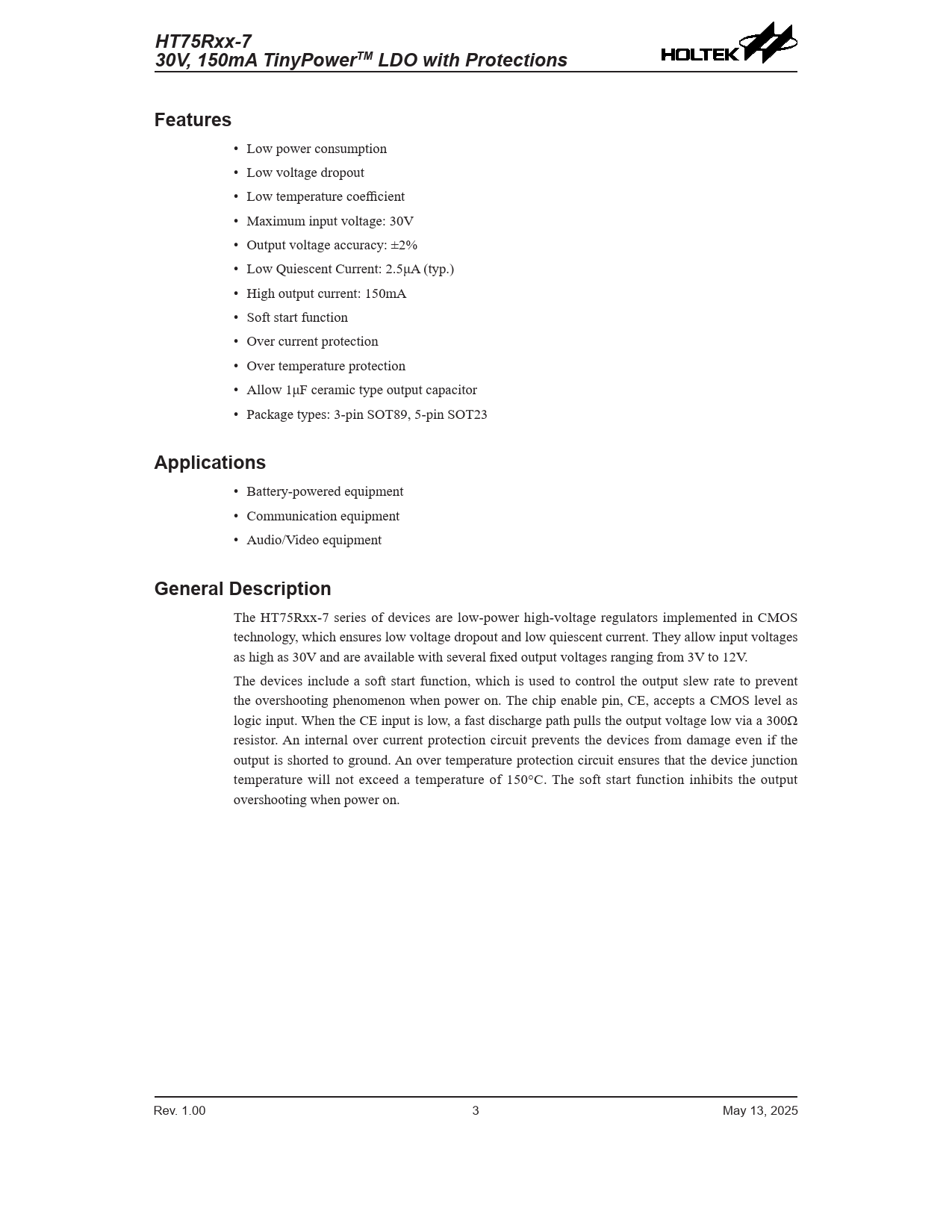

HT75Rxx-7 30V, 150mA TinyPowerTM LDO with Protections Features
• Low power consumption • Low voltage dropout • Low temperature coefficient • Maximum input voltage: 30V • Output voltage accuracy: ±2% • Low Quiescent Current: 2.5μA (typ.) • High output current: 150mA • Soft start function • Over current protection • Over temperature protection • Allow 1μF ceramic type output capacitor • Package types: 3-pin SOT89, 5-pin SOT23
Applications
• Battery-powered equipment • Communication equipment • Audio/Video equipment
General Description
The HT75Rxx-7 series of devices are low-power high-voltage regulators implemented in CMOS technology, which ensures low voltage dropout and low quiescent current. They allow input voltages as high as 30V and are available with several fixed output voltages ranging from 3V to 12V. The devices include a soft start function, which is used to control the output slew rate to prevent the overshooting phenomenon when power on. The chip enable pin, CE, accepts a CMOS level as logic input. When the CE input is low, a fast discharge path pulls the output voltage low via a 300Ω resistor. An internal over current protection circuit prevents the devices from damage even if the output is shorted to ground. An over temperature protection circuit ensures that the device junction temperature will not exceed a temperature of 150°C. The soft start function inhibits the output overshooting when power on. Rev. 1.00 3 May 13, 2025 Document Outline Features Applications General Description Selection Table Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings Recommended Operating Range Electrical Characteristics Typical Performance Characteristics Application Circuits Basic Circuit High Output Current Positive Voltage Regulator Circuit for Increasing Output Voltage Constant Current Regulator Dual Supply Circuit Application Information External Circuit OCP and OTP Protections Fast Output Discharging Function Input Capacitor CIN Considerations Output Capacitor COUT Considerations Thermal Considerations Power Dissipation Calculation Package Information 3-pin SOT89 Outline Dimensions 5-pin SOT23 Outline Dimensions
• Low power consumption • Low voltage dropout • Low temperature coefficient • Maximum input voltage: 30V • Output voltage accuracy: ±2% • Low Quiescent Current: 2.5μA (typ.) • High output current: 150mA • Soft start function • Over current protection • Over temperature protection • Allow 1μF ceramic type output capacitor • Package types: 3-pin SOT89, 5-pin SOT23
Applications
• Battery-powered equipment • Communication equipment • Audio/Video equipment
General Description
The HT75Rxx-7 series of devices are low-power high-voltage regulators implemented in CMOS technology, which ensures low voltage dropout and low quiescent current. They allow input voltages as high as 30V and are available with several fixed output voltages ranging from 3V to 12V. The devices include a soft start function, which is used to control the output slew rate to prevent the overshooting phenomenon when power on. The chip enable pin, CE, accepts a CMOS level as logic input. When the CE input is low, a fast discharge path pulls the output voltage low via a 300Ω resistor. An internal over current protection circuit prevents the devices from damage even if the output is shorted to ground. An over temperature protection circuit ensures that the device junction temperature will not exceed a temperature of 150°C. The soft start function inhibits the output overshooting when power on. Rev. 1.00 3 May 13, 2025 Document Outline Features Applications General Description Selection Table Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings Recommended Operating Range Electrical Characteristics Typical Performance Characteristics Application Circuits Basic Circuit High Output Current Positive Voltage Regulator Circuit for Increasing Output Voltage Constant Current Regulator Dual Supply Circuit Application Information External Circuit OCP and OTP Protections Fast Output Discharging Function Input Capacitor CIN Considerations Output Capacitor COUT Considerations Thermal Considerations Power Dissipation Calculation Package Information 3-pin SOT89 Outline Dimensions 5-pin SOT23 Outline Dimensions
