VIA2000SD
www.vishay.com Vishay Semiconductors

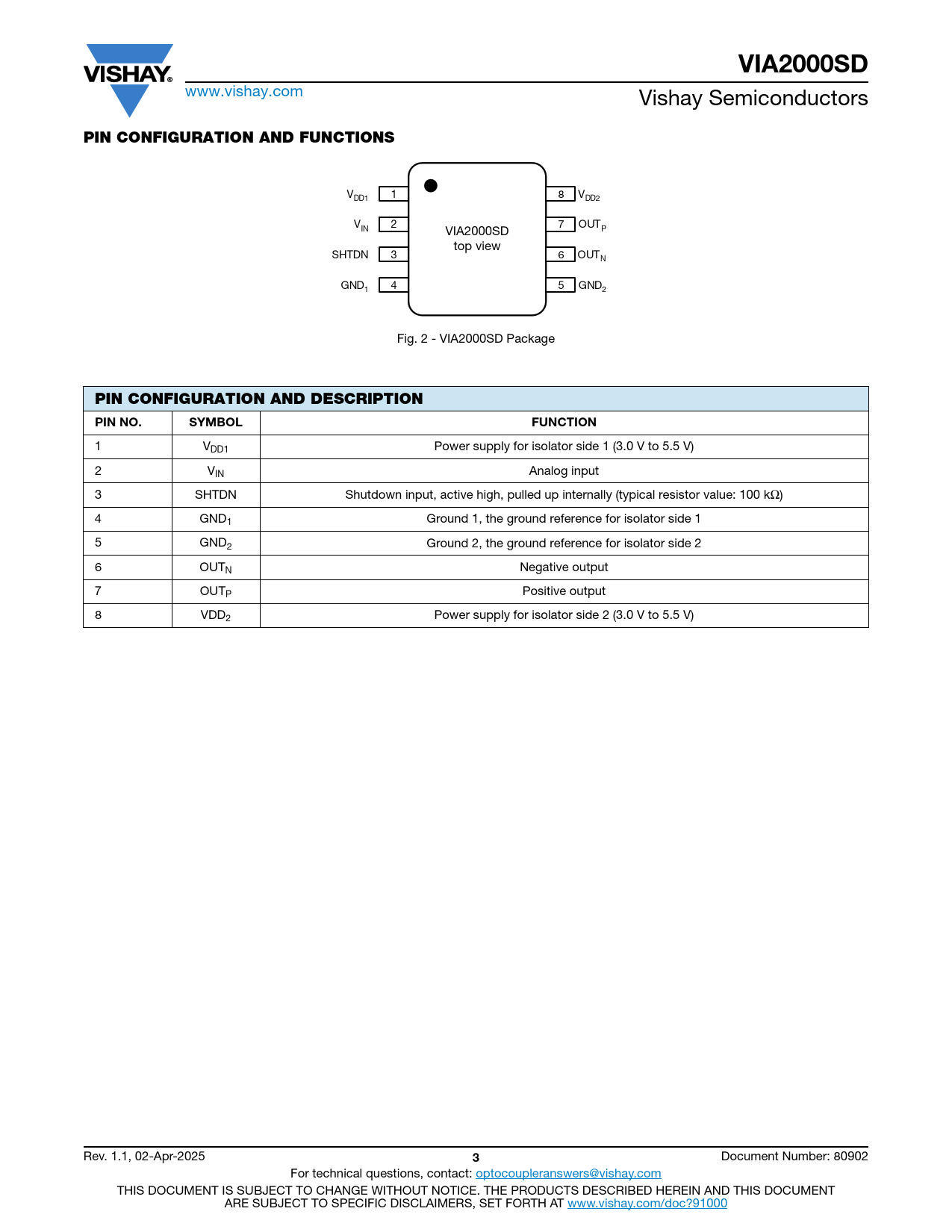

PIN CONFIGURATION AND FUNCTIONS
V 1 8 V DD1 DD2 V 2 7 OUT IN P VIA2000SD top view SHTDN 3 6 OUTN GND 4 5 GND 1 2 Fig. 2 - VIA2000SD Package
PIN CONFIGURATION AND DESCRIPTION PIN NO. SYMBOL FUNCTION
1 VDD1 Power supply for isolator side 1 (3.0 V to 5.5 V) 2 VIN Analog input 3 SHTDN Shutdown input, active high, pulled up internally (typical resistor value: 100 kΩ) 4 GND1 Ground 1, the ground reference for isolator side 1 5 GND2 Ground 2, the ground reference for isolator side 2 6 OUTN Negative output 7 OUTP Positive output 8 VDD2 Power supply for isolator side 2 (3.0 V to 5.5 V) Rev. 1.1, 02-Apr-2025
3
Document Number: 80902 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
