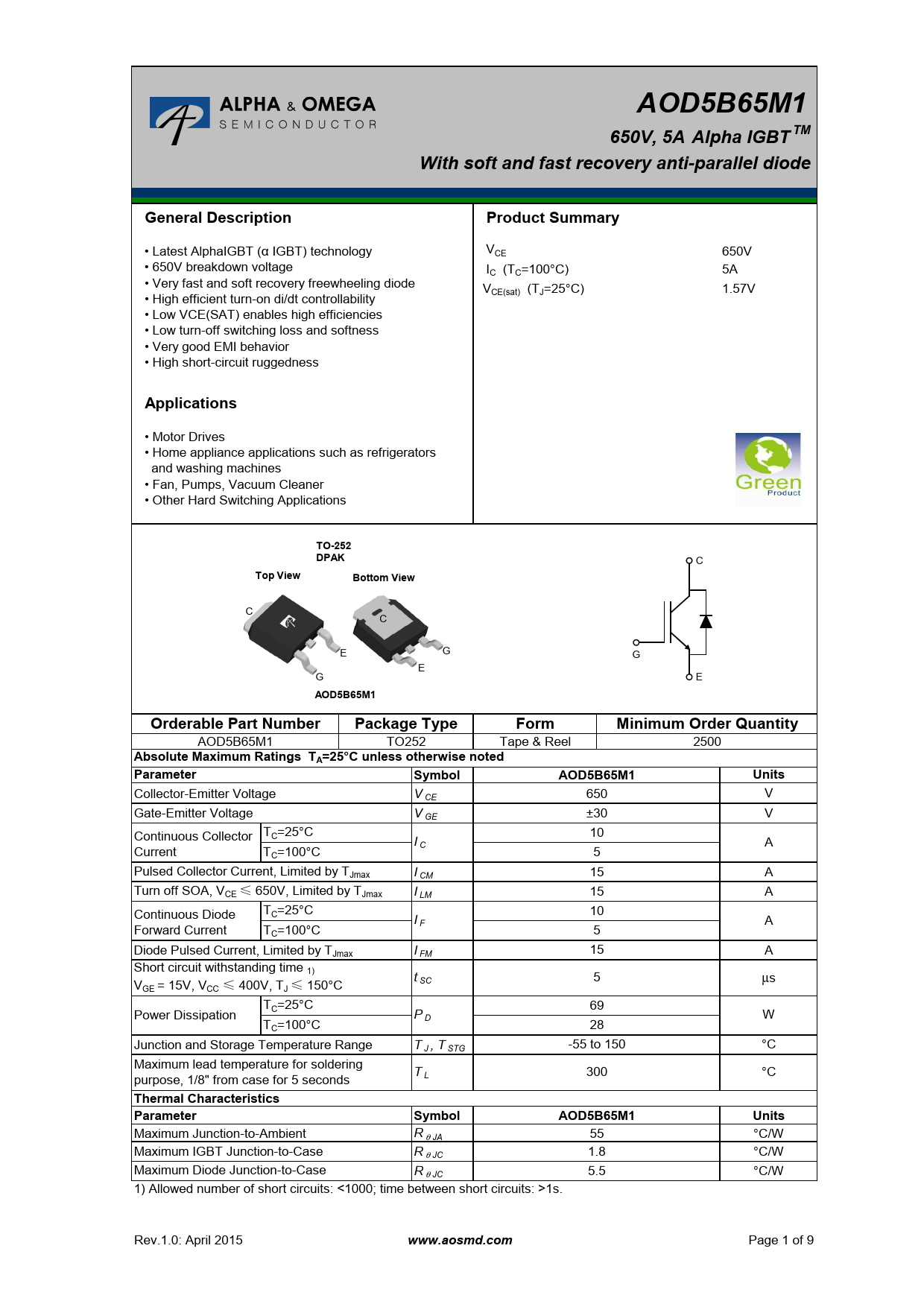

AOD5B65M1 650V, 5A Alpha IGBT TM With soft and fast recovery anti-parallel diode General Description Product Summary
• Latest AlphaIGBT (α IGBT) technology VCE 650V • 650V breakdown voltage IC (TC=100°C) 5A • Very fast and soft recovery freewheeling diode VCE(sat) (TJ=25°C) 1.57V • High efficient turn-on di/dt controllability • Low VCE(SAT) enables high efficiencies • Low turn-off switching loss and softness • Very good EMI behavior • High short-circuit ruggedness
Applications
• Motor Drives • Home appliance applications such as refrigerators and washing machines • Fan, Pumps, Vacuum Cleaner • Other Hard Switching Applications
TO-252 DPAK
C
Top View Bottom View
C C E G G E G E
AOD5B65M1 Orderable Part Number Package Type Form Minimum Order Quantity
AOD5B65M1 TO252 Tape & Reel 2500
Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol AOD5B65M1 Units
Collector-Emitter Voltage V CE 650 V Gate-Emitter Voltage V GE ±30 V Continuous Collector TC=25°C 10 I C A Current TC=100°C 5 Pulsed Collector Current, Limited by TJmax I CM 15 A Turn off SOA, VCE 650V, Limited by T ≤ Jmax I LM 15 A Continuous Diode TC=25°C 10 I F A Forward Current TC=100°C 5 Diode Pulsed Current, Limited by TJmax I FM 15 A Short circuit withstanding time 1) t SC 5 µs VGE = 15V, VCC 400V, T 150°C ≤ J ≤ TC=25°C 69 Power Dissipation P D W TC=100°C 28 Junction and Storage Temperature Range T J , T STG -55 to 150 °C Maximum lead temperature for soldering T L 300 °C purpose, 1/8" from case for 5 seconds
Thermal Characteristics Parameter Symbol AOD5B65M1 Units
Maximum Junction-to-Ambient R θ JA 55 °C/W Maximum IGBT Junction-to-Case R θ JC 1.8 °C/W Maximum Diode Junction-to-Case R θ JC 5.5 °C/W 1) Allowed number of short circuits: <1000; time between short circuits: >1s. Rev.1.0: April 2015
www.aosmd.com
Page 1 of 9
