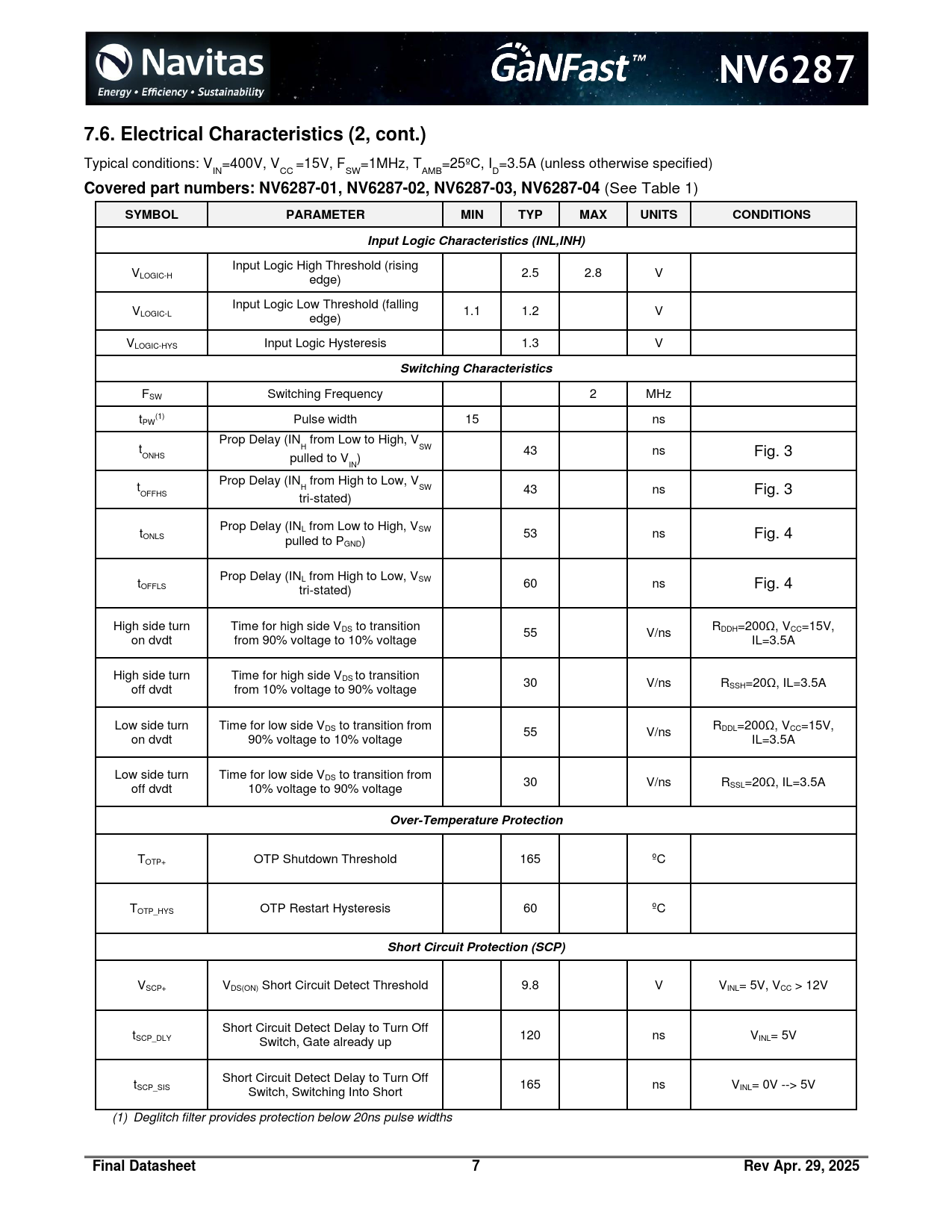

NV6287 7.6. Electrical Characteristics (2, cont.)
Typical conditions: V =400V, V =15V, F =1MHz, T =25ºC, I =3.5A (unless otherwise specified) IN CC SW AMB D
Covered part numbers: NV6287-01, NV6287-02, NV6287-03, NV6287-04
(See Table 1)
SYMBOL PARAMETER MIN TYP MAX UNITS CONDITIONS Input Logic Characteristics (INL,INH)
Input Logic High Threshold (rising VLOGIC-H 2.5 2.8 V edge) Input Logic Low Threshold (falling VLOGIC-L 1.1 1.2 V edge) VLOGIC-HYS Input Logic Hysteresis 1.3 V
Switching Characteristics
FSW Switching Frequency 2 MHz t (1) PW Pulse width 15 ns Prop Delay (IN from Low to High, V t H SW 43 ns Fig. 3 ONHS pulled to V ) IN Prop Delay (IN from High to Low, V t H SW 43 ns Fig. 3 OFFHS tri-stated) Prop Delay (IN t L from Low to High, VSW ONLS 53 ns Fig. 4 pulled to PGND) Prop Delay (IN t L from High to Low, VSW OFFLS 60 ns Fig. 4 tri-stated) High side turn Time for high side VDS to transition R 55 V/ns DDH=200Ω, VCC=15V, on dvdt from 90% voltage to 10% voltage IL=3.5A High side turn Time for high side VDS to transition 30 V/ns R off dvdt from 10% voltage to 90% voltage SSH=20Ω, IL=3.5A Low side turn Time for low side VDS to transition from R 55 V/ns DDL=200Ω, VCC=15V, on dvdt 90% voltage to 10% voltage IL=3.5A Low side turn Time for low side VDS to transition from 30 V/ns R off dvdt 10% voltage to 90% voltage SSL=20Ω, IL=3.5A
Over-Temperature Protection
TOTP+ OTP Shutdown Threshold 165 ºC TOTP_HYS OTP Restart Hysteresis 60 ºC
Short Circuit Protection (SCP)
VSCP+ VDS(ON) Short Circuit Detect Threshold 9.8 V VINL= 5V, VCC > 12V Short Circuit Detect Delay to Turn Off tSCP_DLY 120 ns V Switch, Gate already up INL= 5V Short Circuit Detect Delay to Turn Off tSCP_SIS 165 ns V Switch, Switching Into Short INL= 0V --> 5V (1) Deglitch filter provides protection below 20ns pulse widths
