Datasheet QSE113, QSE114 (Fairchild)
| Hersteller | Fairchild |
| Beschreibung | Plastic Silicon Infrared Phototransistor |
| Seiten / Seite | 4 / 1 — PLASTIC SILICON. INFRARED PHOTOTRANSISTOR. QSE113 QSE114. PACKAGE … |
| Dateiformat / Größe | PDF / 340 Kb |
| Dokumentensprache | Englisch |
PLASTIC SILICON. INFRARED PHOTOTRANSISTOR. QSE113 QSE114. PACKAGE DIMENSIONS. SCHEMATIC. DESCRIPTION. FEATURES
Modelllinie für dieses Datenblatt
Textversion des Dokuments

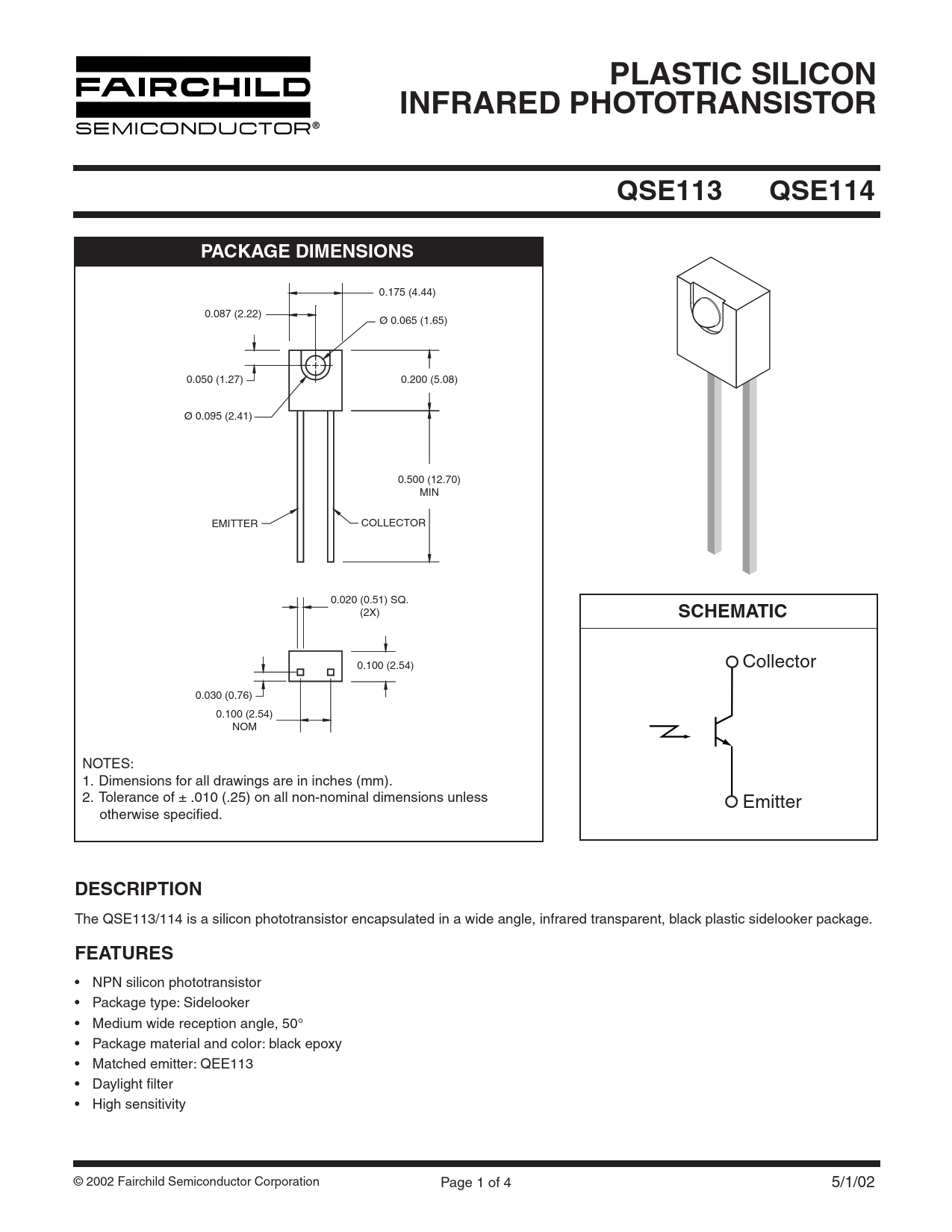

PLASTIC SILICON INFRARED PHOTOTRANSISTOR QSE113 QSE114 PACKAGE DIMENSIONS
0.175 (4.44) 0.087 (2.22) Ø 0.065 (1.65) 0.050 (1.27) 0.200 (5.08) Ø 0.095 (2.41) 0.500 (12.70) MIN EMITTER COLLECTOR 0.020 (0.51) SQ. (2X)
SCHEMATIC
0.100 (2.54) Collector 0.030 (0.76) 0.100 (2.54) NOM NOTES: 1. Dimensions for all drawings are in inches (mm). 2. Tolerance of ± .010 (.25) on all non-nominal dimensions unless Emitter otherwise specified.
DESCRIPTION
The QSE113/114 is a silicon phototransistor encapsulated in a wide angle, infrared transparent, black plastic sidelooker package.
FEATURES
• NPN silicon phototransistor • Package type: Sidelooker • Medium wide reception angle, 50° • Package material and color: black epoxy • Matched emitter: QEE113 • Daylight filter • High sensitivity © 2002 Fairchild Semiconductor Corporation Page 1 of 4 5/1/02
