Datasheet EL5100, EL5101, EL5300 (Renesas) - 4
| Hersteller | Renesas |
| Beschreibung | 200MHz Slew Enhanced VFA |
| Seiten / Seite | 15 / 4 — Absolute Maximum Ratings. Thermal Information. DC Electrical … |
| Dateiformat / Größe | PDF / 767 Kb |
| Dokumentensprache | Englisch |
Absolute Maximum Ratings. Thermal Information. DC Electrical Specifications. PARAMETER. DESCRIPTION. CONDITIONS. MIN. TYP. MAX. UNIT
Modelllinie für dieses Datenblatt
Textversion des Dokuments

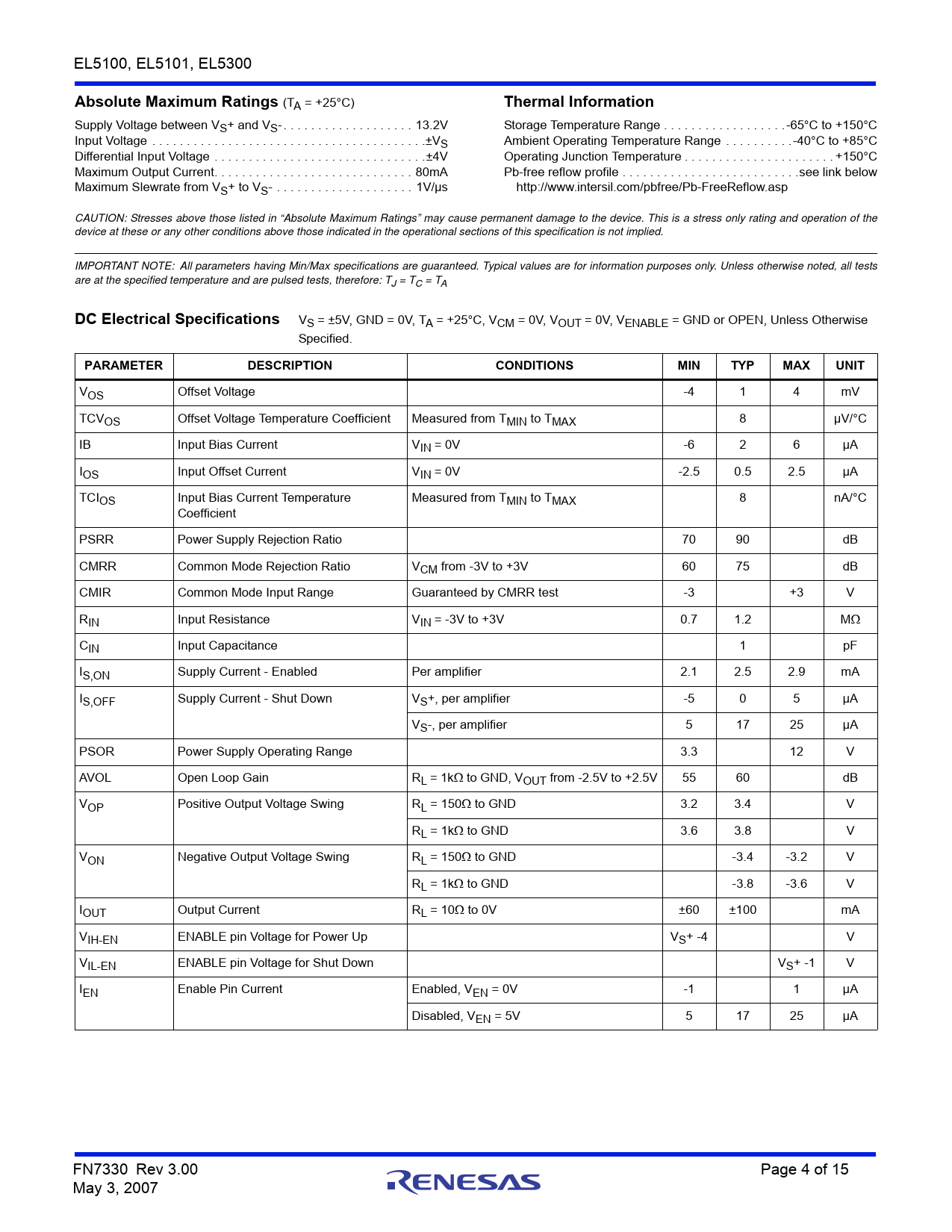

EL5100, EL5101, EL5300
Absolute Maximum Ratings
(TA = +25°C)
Thermal Information
Supply Voltage between VS+ and VS-. 13.2V Storage Temperature Range . .-65°C to +150°C Input Voltage . .±VS Ambient Operating Temperature Range . .-40°C to +85°C Differential Input Voltage . .±4V Operating Junction Temperature . +150°C Maximum Output Current. 80mA Pb-free reflow profile . .see link below Maximum Slewrate from VS+ to VS- . 1V/µs http://www.intersil.com/pbfree/Pb-FreeReflow.asp CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. IMPORTANT NOTE: All parameters having Min/Max specifications are guaranteed. Typical values are for information purposes only. Unless otherwise noted, all tests are at the specified temperature and are pulsed tests, therefore: TJ = TC = TA
DC Electrical Specifications
VS = ±5V, GND = 0V, TA = +25°C, VCM = 0V, VOUT = 0V, VENABLE = GND or OPEN, Unless Otherwise Specified.
PARAMETER DESCRIPTION CONDITIONS MIN TYP MAX UNIT
VOS Offset Voltage -4 1 4 mV TCVOS Offset Voltage Temperature Coefficient Measured from TMIN to TMAX 8 µV/°C IB Input Bias Current VIN = 0V -6 2 6 µA IOS Input Offset Current VIN = 0V -2.5 0.5 2.5 µA TCIOS Input Bias Current Temperature Measured from TMIN to TMAX 8 nA/°C Coefficient PSRR Power Supply Rejection Ratio 70 90 dB CMRR Common Mode Rejection Ratio VCM from -3V to +3V 60 75 dB CMIR Common Mode Input Range Guaranteed by CMRR test -3 +3 V RIN Input Resistance VIN = -3V to +3V 0.7 1.2 M CIN Input Capacitance 1 pF IS,ON Supply Current - Enabled Per amplifier 2.1 2.5 2.9 mA IS,OFF Supply Current - Shut Down VS+, per amplifier -5 0 5 µA VS-, per amplifier 5 17 25 µA PSOR Power Supply Operating Range 3.3 12 V AVOL Open Loop Gain RL = 1k to GND, VOUT from -2.5V to +2.5V 55 60 dB VOP Positive Output Voltage Swing RL = 150 to GND 3.2 3.4 V RL = 1k to GND 3.6 3.8 V VON Negative Output Voltage Swing RL = 150 to GND -3.4 -3.2 V RL = 1k to GND -3.8 -3.6 V IOUT Output Current RL = 10 to 0V ±60 ±100 mA VIH-EN ENABLE pin Voltage for Power Up VS+ -4 V VIL-EN ENABLE pin Voltage for Shut Down VS+ -1 V IEN Enable Pin Current Enabled, VEN = 0V -1 1 µA Disabled, VEN = 5V 5 17 25 µA FN7330 Rev 3.00 Page 4 of 15 May 3, 2007
