Datasheet ULN2001, ULN2002 ULN2003, ULN2004 (STMicroelectronics) - 5

HerstellerSTMicroelectronics
BeschreibungSeven Darlington Arrays
Seiten / Seite21 / 5 — ULN2001, ULN2002, ULN2003, ULN2004. Maximum ratings. Table 1. Absolute …
Dateiformat / GrößePDF / 846 Kb
DokumentenspracheEnglisch

ULN2001, ULN2002, ULN2003, ULN2004. Maximum ratings. Table 1. Absolute maximum ratings. Symbol. Parameter. Value. Unit

ULN2001, ULN2002, ULN2003, ULN2004 Maximum ratings Table 1 Absolute maximum ratings Symbol Parameter Value Unit

Modelllinie für dieses Datenblatt

Textversion des Dokuments

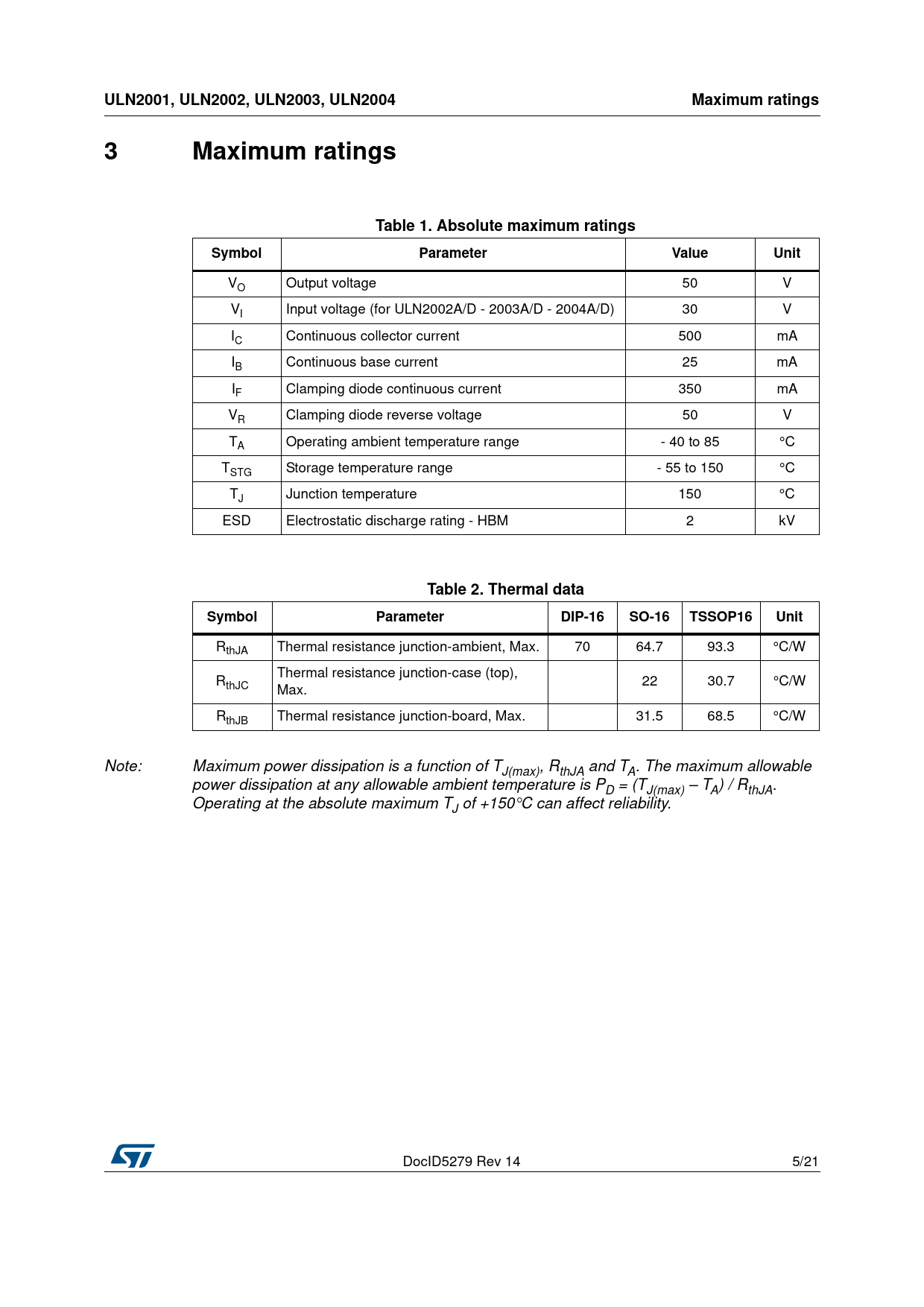

ULN2001, ULN2002, ULN2003, ULN2004 Maximum ratings 3 Maximum ratings Table 1. Absolute maximum ratings Symbol Parameter Value Unit
VO Output voltage 50 V VI Input voltage (for ULN2002A/D - 2003A/D - 2004A/D) 30 V IC Continuous collector current 500 mA IB Continuous base current 25 mA IF Clamping diode continuous current 350 mA VR Clamping diode reverse voltage 50 V TA Operating ambient temperature range - 40 to 85 °C TSTG Storage temperature range - 55 to 150 °C TJ Junction temperature 150 °C ESD Electrostatic discharge rating - HBM 2 kV
Table 2. Thermal data Symbol Parameter DIP-16 SO-16 TSSOP16 Unit
RthJA Thermal resistance junction-ambient, Max. 70 64.7 93.3 °C/W Thermal resistance junction-case (top), RthJC 22 30.7 °C/W Max. RthJB Thermal resistance junction-board, Max. 31.5 68.5 °C/W Note: Maximum power dissipation is a function of TJ(max), RthJA and TA. The maximum allowable power dissipation at any allowable ambient temperature is PD = (TJ(max) – TA) / RthJA. Operating at the absolute maximum TJ of +150°C can affect reliability. DocID5279 Rev 14 5/21 21 Document Outline 1 Diagram Figure 1. Schematic diagram 2 Pin configuration Figure 2. Pin connections (top view) 3 Maximum ratings Table 1. Absolute maximum ratings Table 2. Thermal data 4 Electrical characteristics Table 3. Electrical characteristics 5 Test circuits Figure 3. Output leakage current Figure 4. Output leakage current (for ULN2002 only) Figure 5. Collector-emitter saturation voltage Figure 6. Input current (ON) Figure 7. Input current (OFF) Figure 8. Input voltage Figure 9. Clamp diode leakage current Figure 10. Clamp diode forward voltage 6 Typical performance characteristics Figure 11. Collector current vs. saturation voltage (TJ = 25 °C) Figure 12. Collector current vs. saturation voltage Figure 13. Input current vs. input voltage Figure 14. Input current vs. input voltage (Ta = 25 °C) Figure 15. Collector current vs. input current Figure 16. hFE vs. output current Figure 17. Peak collector current vs. duty cycle (DIP-16) Figure 18. Peak collector current vs. duty cycle (SO-16) 7 Package information 7.1 DIP-16L package information Figure 19. DIP-16L package outline Table 4. DIP-16L mechanical data 7.2 SO-16 Narrow package information Figure 20. SO-16 package outline Table 5. SO-16 Narrow mechanical data Figure 21. SO-16 Narrow tape and reel drawing Table 6. SO-16 Narrow tape and reel mechanical data 7.3 TSSOP16 package information Figure 22. TSSOP16 package outline Table 7. TSSOP16 mechanical data Figure 23. TSSOP16 recommended footprint (dimensions are in mm) Figure 24. TSSOP16 tape and reel drawing Table 8. TSSOP16 tape and reel mechanical data 8 Order codes Table 9. Order codes 9 Revision history Table 10. Revision history
