Datasheet ULN2001, ULN2002 ULN2003, ULN2004 (STMicroelectronics)

HerstellerSTMicroelectronics
BeschreibungSeven Darlington Arrays
Seiten / Seite21 / 1 — ULN2001, ULN2002 ULN2003, ULN2004. Datasheet. production data. …
Dateiformat / GrößePDF / 846 Kb
Dokumentenspracheenglisch

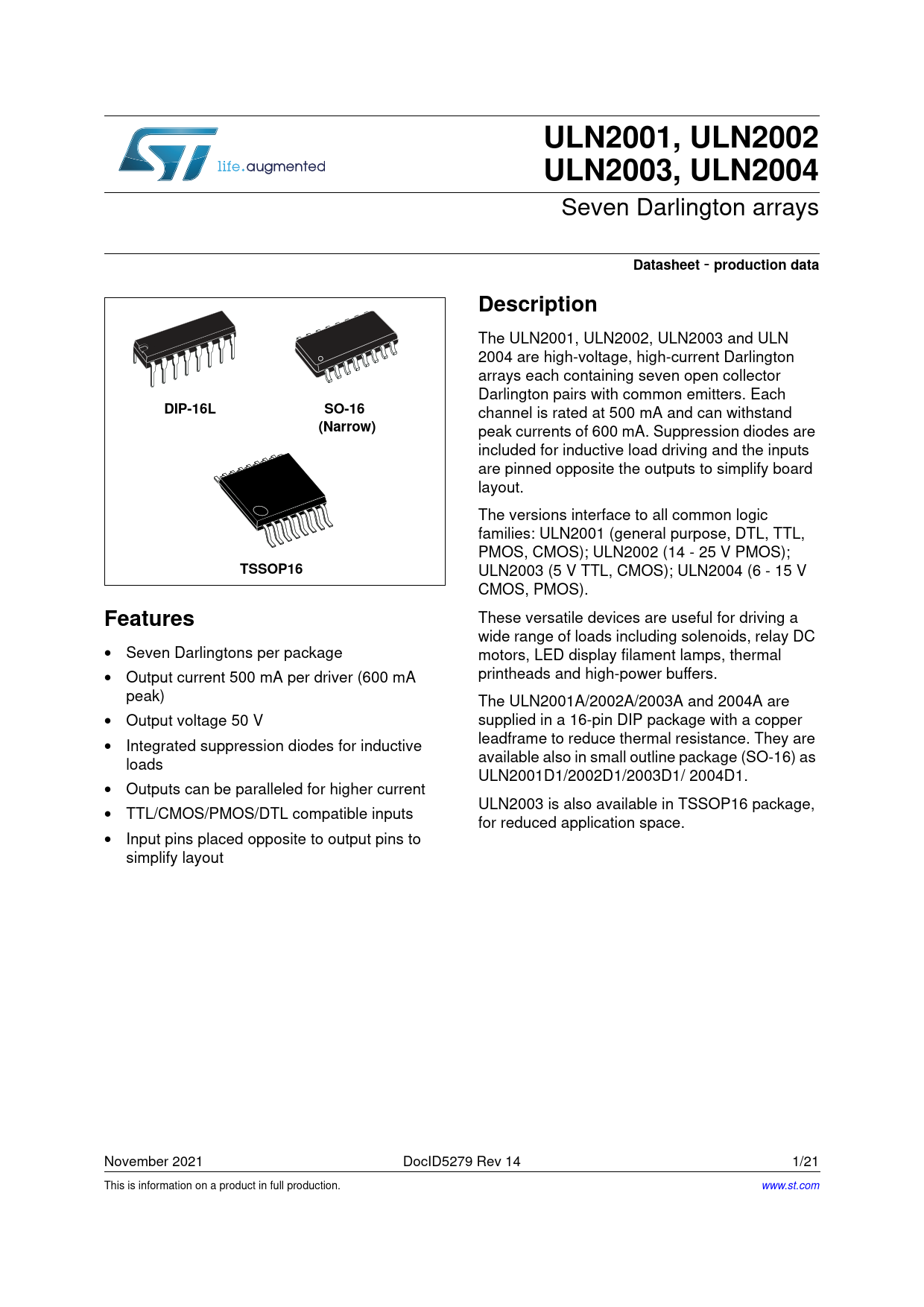

ULN2001, ULN2002 ULN2003, ULN2004. Datasheet. production data. Description. DIP-16L. SO-16. (Narrow). TSSOP16. Features

Datasheet ULN2001, ULN2002 ULN2003, ULN2004 STMicroelectronics

Modelllinie für dieses Datenblatt

Textversion des Dokuments

ULN2001, ULN2002 ULN2003, ULN2004
Seven Darlington arrays
Datasheet
-
production data Description
The ULN2001, ULN2002, ULN2003 and ULN 2004 are high-voltage, high-current Darlington arrays each containing seven open collector Darlington pairs with common emitters. Each
DIP-16L SO-16
channel is rated at 500 mA and can withstand
(Narrow)
peak currents of 600 mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout. The versions interface to all common logic families: ULN2001 (general purpose, DTL, TTL, PMOS, CMOS); ULN2002 (14 - 25 V PMOS);
TSSOP16
ULN2003 (5 V TTL, CMOS); ULN2004 (6 - 15 V CMOS, PMOS).
