Datasheet ADG636 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | 1 pC Charge Injection, 100 pA Leakage, CMOS, ±5 V/+5 V/+3 V Dual SPDT Switch |
| Seiten / Seite | 16 / 4 — ADG636. Parameter. +25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test … |
| Revision | B |
| Dateiformat / Größe | PDF / 505 Kb |
| Dokumentensprache | Englisch |

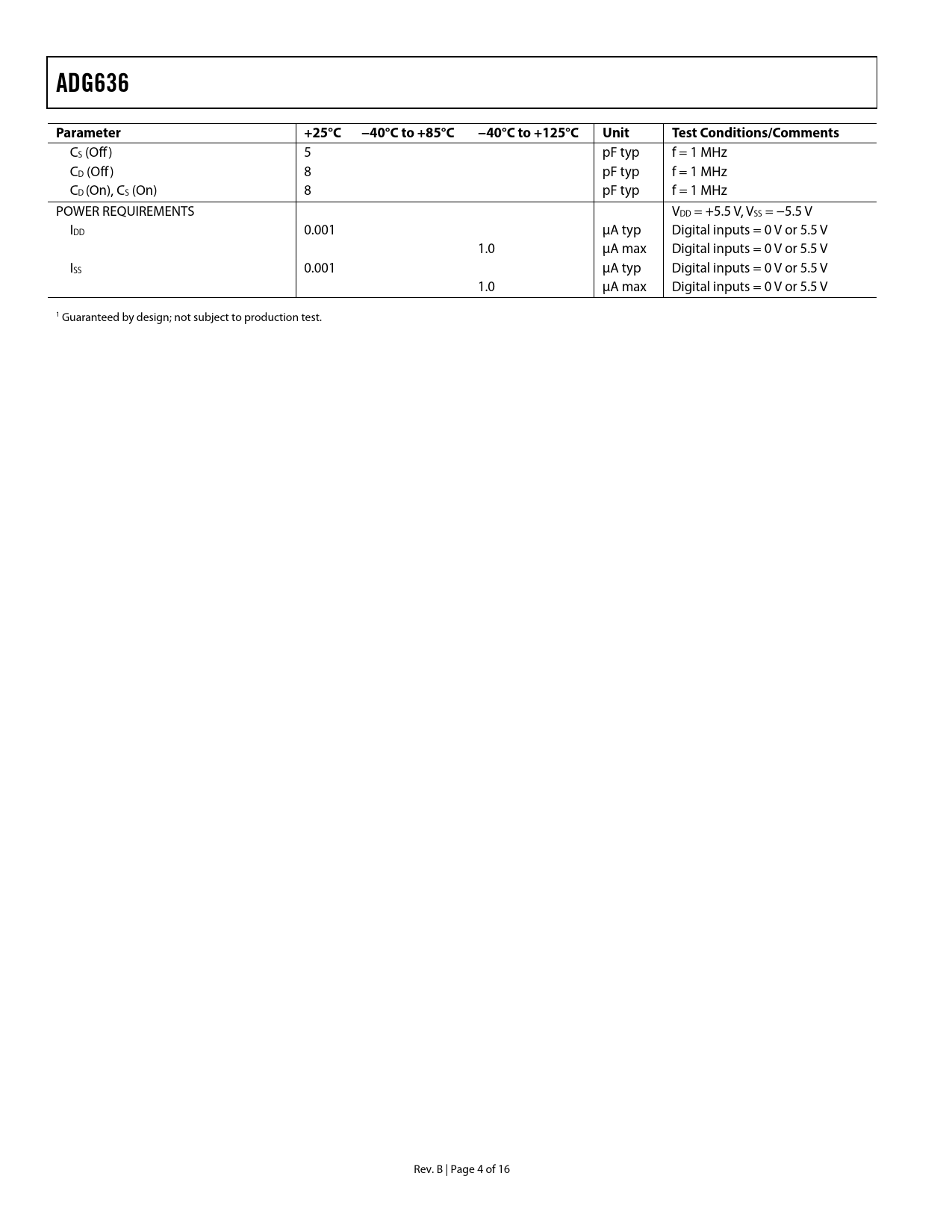

ADG636. Parameter. +25°C. −40°C to +85°C. −40°C to +125°C. Unit. Test Conditions/Comments
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ADG636 Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
CS (Off ) 5 pF typ f = 1 MHz CD (Off ) 8 pF typ f = 1 MHz CD (On), CS (On) 8 pF typ f = 1 MHz POWER REQUIREMENTS VDD = +5.5 V, VSS = −5.5 V IDD 0.001 μA typ Digital inputs = 0 V or 5.5 V 1.0 μA max Digital inputs = 0 V or 5.5 V ISS 0.001 μA typ Digital inputs = 0 V or 5.5 V 1.0 μA max Digital inputs = 0 V or 5.5 V 1 Guaranteed by design; not subject to production test. Rev. B | Page 4 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
