Datasheet ADG1611, ADG1612, ADG1613 (Analog Devices) - 7

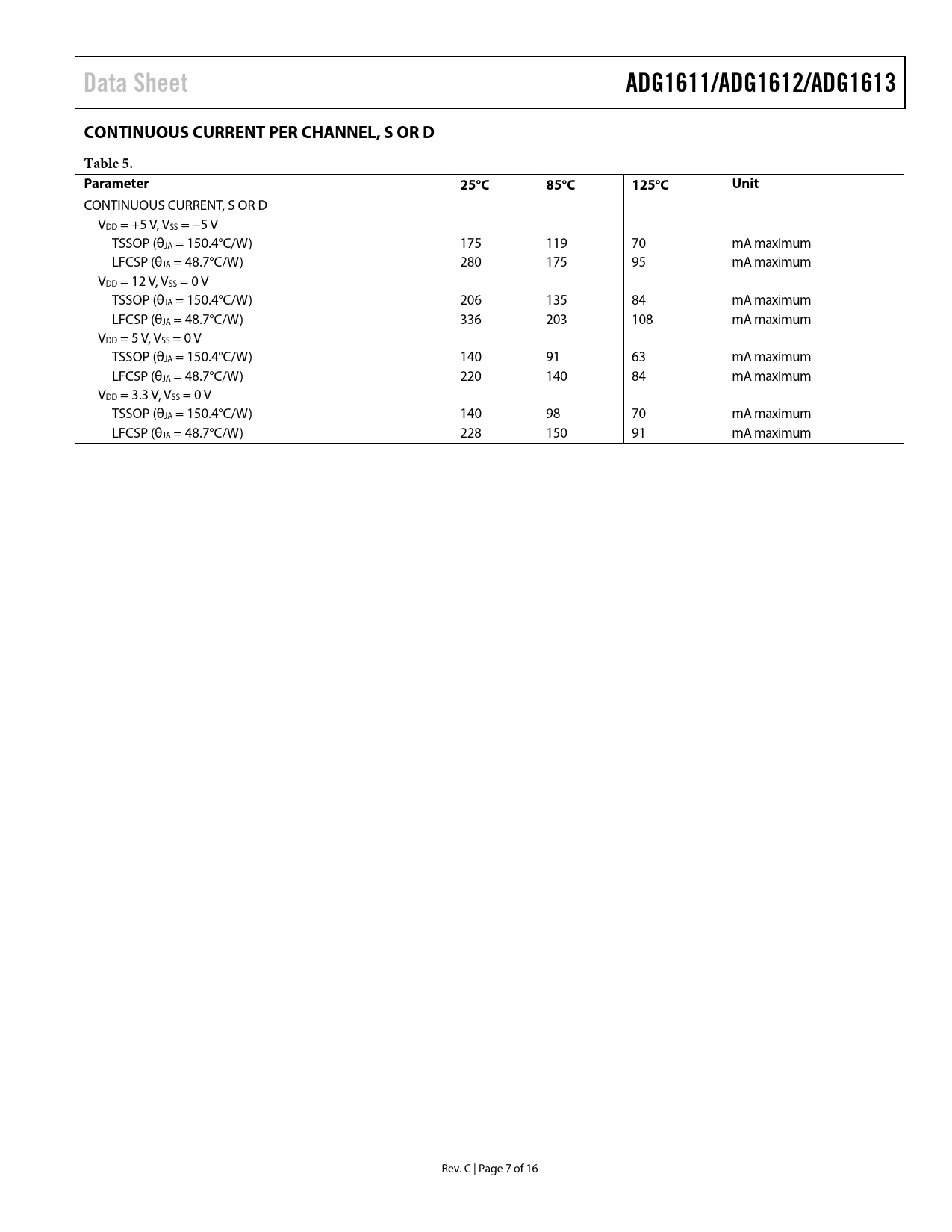

Data Sheet ADG1611/ADG1612/ADG1613 CONTINUOUS CURRENT PER CHANNEL, S OR D Table 5. Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, S OR D

VDD = +5 V, VSS = −5 V TSSOP (θJA = 150.4°C/W) 175 119 70 mA maximum LFCSP (θJA = 48.7°C/W) 280 175 95 mA maximum VDD = 12 V, VSS = 0 V TSSOP (θJA = 150.4°C/W) 206 135 84 mA maximum LFCSP (θJA = 48.7°C/W) 336 203 108 mA maximum VDD = 5 V, VSS = 0 V TSSOP (θJA = 150.4°C/W) 140 91 63 mA maximum LFCSP (θJA = 48.7°C/W) 220 140 84 mA maximum VDD = 3.3 V, VSS = 0 V TSSOP (θJA = 150.4°C/W) 140 98 70 mA maximum LFCSP (θJA = 48.7°C/W) 228 150 91 mA maximum Rev. C | Page 7 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
