Datasheet ADG1611, ADG1612, ADG1613 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | 1 Ω Typical On Resistance, ±5 V, +12 V, +5 V, and +3.3 V Quad SPST Switches |
| Seiten / Seite | 16 / 6 — ADG1611/ADG1612/ADG1613. Data Sheet. 3.3 V SINGLE SUPPLY. Table 4. −40°C … |
| Revision | C |
| Dateiformat / Größe | PDF / 489 Kb |
| Dokumentensprache | Englisch |
ADG1611/ADG1612/ADG1613. Data Sheet. 3.3 V SINGLE SUPPLY. Table 4. −40°C to −40°C to. Parameter. 25°C +85°C. +125°C. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 13 link to page 13 link to page 13 link to page 13 link to page 14 link to page 14 link to page 14 link to page 14 link to page 13 link to page 13 link to page 14 link to page 13

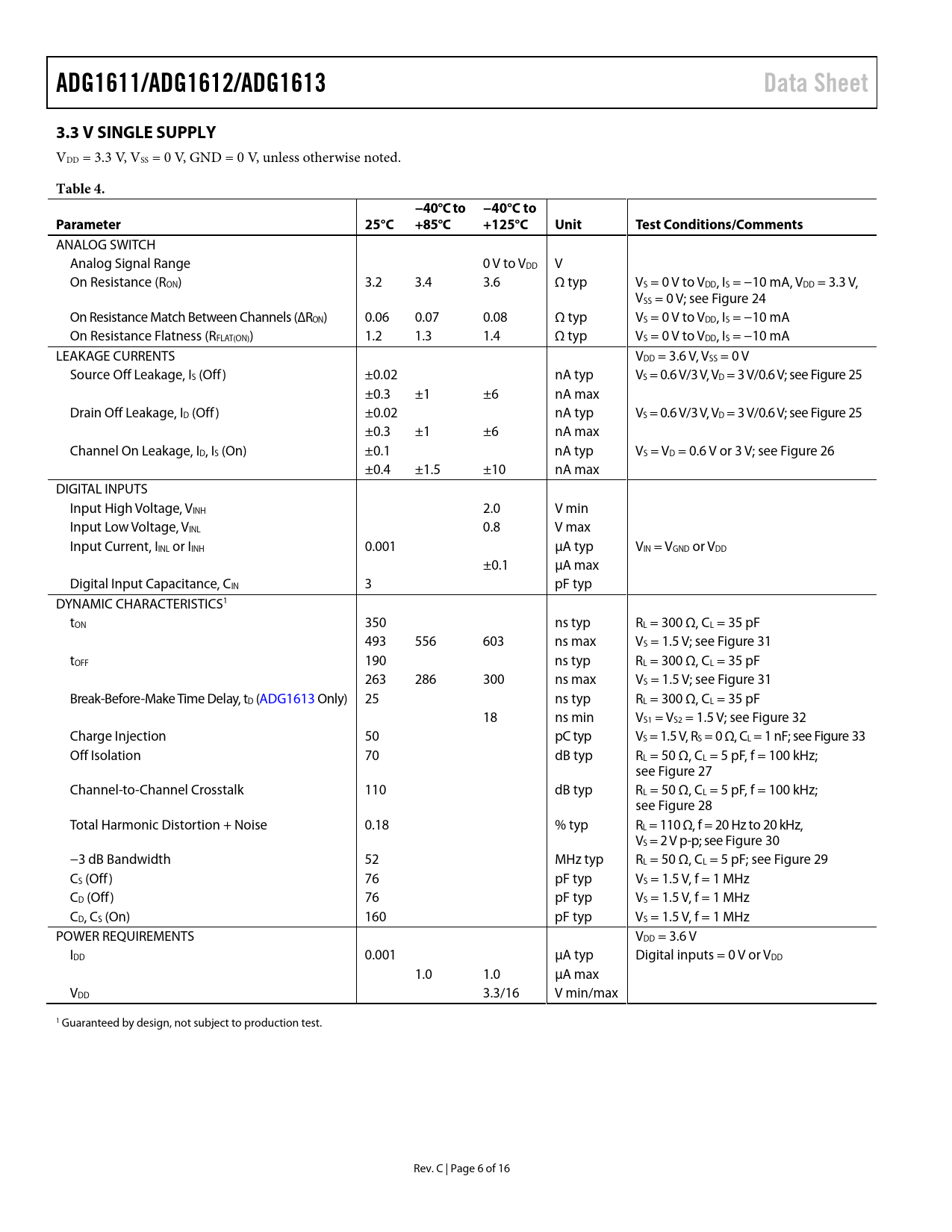

ADG1611/ADG1612/ADG1613 Data Sheet 3.3 V SINGLE SUPPLY
VDD = 3.3 V, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 3.2 3.4 3.6 Ω typ VS = 0 V to VDD, IS = −10 mA, VDD = 3.3 V, VSS = 0 V; see Figure 24 On Resistance Match Between Channels (∆RON) 0.06 0.07 0.08 Ω typ VS = 0 V to VDD, IS = −10 mA On Resistance Flatness (RFLAT(ON)) 1.2 1.3 1.4 Ω typ VS = 0 V to VDD, IS = −10 mA LEAKAGE CURRENTS VDD = 3.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.02 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V; see Figure 25 ±0.3 ±1 ±6 nA max Drain Off Leakage, ID (Off) ±0.02 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V; see Figure 25 ±0.3 ±1 ±6 nA max Channel On Leakage, ID, IS (On) ±0.1 nA typ VS = VD = 0.6 V or 3 V; see Figure 26 ±0.4 ±1.5 ±10 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.001 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 tON 350 ns typ RL = 300 Ω, CL = 35 pF 493 556 603 ns max VS = 1.5 V; see Figure 31 tOFF 190 ns typ RL = 300 Ω, CL = 35 pF 263 286 300 ns max VS = 1.5 V; see Figure 31 Break-Before-Make Time Delay, tD (ADG1613 Only) 25 ns typ RL = 300 Ω, CL = 35 pF 18 ns min VS1 = VS2 = 1.5 V; see Figure 32 Charge Injection 50 pC typ VS = 1.5 V, RS = 0 Ω, CL = 1 nF; see Figure 33 Off Isolation 70 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 27 Channel-to-Channel Crosstalk 110 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 28 Total Harmonic Distortion + Noise 0.18 % typ RL = 110 Ω, f = 20 Hz to 20 kHz, VS = 2 V p-p; see Figure 30 −3 dB Bandwidth 52 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 29 CS (Off) 76 pF typ VS = 1.5 V, f = 1 MHz CD (Off) 76 pF typ VS = 1.5 V, f = 1 MHz CD, CS (On) 160 pF typ VS = 1.5 V, f = 1 MHz POWER REQUIREMENTS VDD = 3.6 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 1.0 µA max VDD 3.3/16 V min/max 1 Guaranteed by design, not subject to production test. Rev. C | Page 6 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
ADG1611/ADG1612/ADG1613 Data Sheet 3.3 V SINGLE SUPPLY
VDD = 3.3 V, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 4. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 3.2 3.4 3.6 Ω typ VS = 0 V to VDD, IS = −10 mA, VDD = 3.3 V, VSS = 0 V; see Figure 24 On Resistance Match Between Channels (∆RON) 0.06 0.07 0.08 Ω typ VS = 0 V to VDD, IS = −10 mA On Resistance Flatness (RFLAT(ON)) 1.2 1.3 1.4 Ω typ VS = 0 V to VDD, IS = −10 mA LEAKAGE CURRENTS VDD = 3.6 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.02 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V; see Figure 25 ±0.3 ±1 ±6 nA max Drain Off Leakage, ID (Off) ±0.02 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V; see Figure 25 ±0.3 ±1 ±6 nA max Channel On Leakage, ID, IS (On) ±0.1 nA typ VS = VD = 0.6 V or 3 V; see Figure 26 ±0.4 ±1.5 ±10 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.001 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS1 tON 350 ns typ RL = 300 Ω, CL = 35 pF 493 556 603 ns max VS = 1.5 V; see Figure 31 tOFF 190 ns typ RL = 300 Ω, CL = 35 pF 263 286 300 ns max VS = 1.5 V; see Figure 31 Break-Before-Make Time Delay, tD (ADG1613 Only) 25 ns typ RL = 300 Ω, CL = 35 pF 18 ns min VS1 = VS2 = 1.5 V; see Figure 32 Charge Injection 50 pC typ VS = 1.5 V, RS = 0 Ω, CL = 1 nF; see Figure 33 Off Isolation 70 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 27 Channel-to-Channel Crosstalk 110 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 28 Total Harmonic Distortion + Noise 0.18 % typ RL = 110 Ω, f = 20 Hz to 20 kHz, VS = 2 V p-p; see Figure 30 −3 dB Bandwidth 52 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 29 CS (Off) 76 pF typ VS = 1.5 V, f = 1 MHz CD (Off) 76 pF typ VS = 1.5 V, f = 1 MHz CD, CS (On) 160 pF typ VS = 1.5 V, f = 1 MHz POWER REQUIREMENTS VDD = 3.6 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 1.0 µA max VDD 3.3/16 V min/max 1 Guaranteed by design, not subject to production test. Rev. C | Page 6 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
