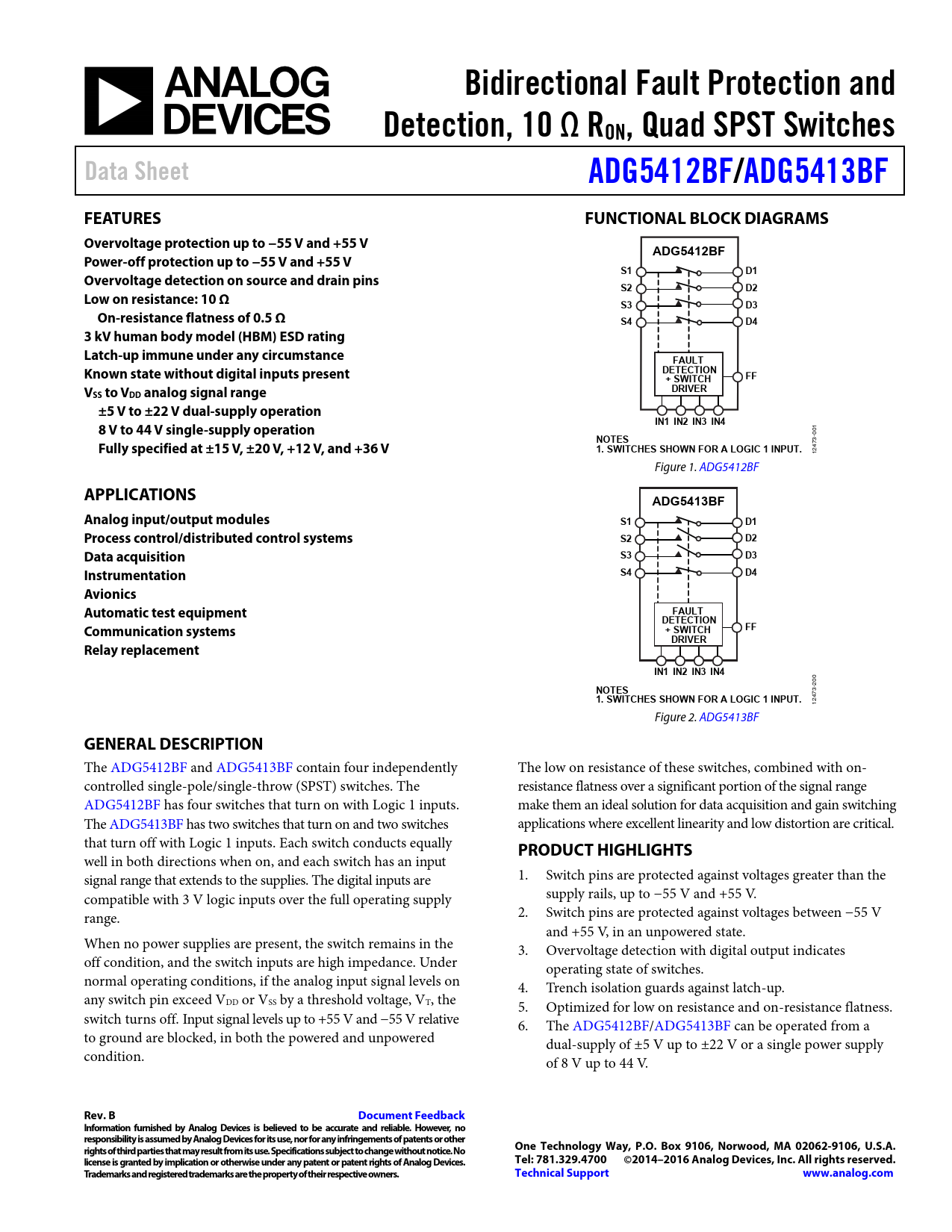

Datasheet ADG5412BF, ADG5413BF (Analog Devices)

Bidirectional Fault Protection and Detection, 10 Ω RON, Quad SPST Switches Data Sheet ADG5412BF /ADG5413BF FEATURES FUNCTIONAL BLOCK DIAGRAMS Overvoltage protection up to −55 V and +55 V ADG5412BF Power-off protection up to −55 V and +55 V S1 D1 Overvoltage detection on source and drain pins S2 D2 Low on resistance: 10 Ω S3 D3 On-resistance flatness of 0.5 Ω S4 D4 3 kV human body model (HBM) ESD rating Latch-up immune under any circumstance FAULT Known state without digital inputs present DETECTION FF + SWITCH V DRIVER SS to VDD analog signal range ±5 V to ±22 V dual-supply operation IN1 IN2 IN3 IN4 8 V to 44 V single-supply operation
001
NOTES
3-
Fully specified at ±15 V, ±20 V, +12 V, and +36 V 1. SWITCHES SHOWN FOR A LOGIC 1 INPUT.
1247

Figure 1. ADG5412BF
APPLICATIONS ADG5413BF Analog input/output modules S1 D1 Process control/distributed control systems S2 D2 Data acquisition S3 D3 Instrumentation S4 D4 Avionics Automatic test equipment FAULT DETECTION Communication systems FF + SWITCH DRIVER Relay replacement IN1 IN2 IN3 IN4
200 3-
NOTES 1. SWITCHES SHOWN FOR A LOGIC 1 INPUT.
1247 Figure 2. ADG5413BF
GENERAL DESCRIPTION
The ADG5412BF and ADG5413BF contain four independently The low on resistance of these switches, combined with on- controlled single-pole/single-throw (SPST) switches. The resistance flatness over a significant portion of the signal range ADG5412BF has four switches that turn on with Logic 1 inputs. make them an ideal solution for data acquisition and gain switching The ADG5413BF has two switches that turn on and two switches applications where excellent linearity and low distortion are critical. that turn off with Logic 1 inputs. Each switch conducts equally
PRODUCT HIGHLIGHTS
well in both directions when on, and each switch has an input signal range that extends to the supplies. The digital inputs are 1. Switch pins are protected against voltages greater than the compatible with 3 V logic inputs over the full operating supply supply rails, up to −55 V and +55 V. range. 2. Switch pins are protected against voltages between −55 V and +55 V, in an unpowered state. When no power supplies are present, the switch remains in the 3. Overvoltage detection with digital output indicates off condition, and the switch inputs are high impedance. Under operating state of switches. normal operating conditions, if the analog input signal levels on 4. Trench isolation guards against latch-up. any switch pin exceed VDD or VSS by a threshold voltage, VT, the 5. Optimized for low on resistance and on-resistance flatness. switch turns off. Input signal levels up to +55 V and −55 V relative 6. The ADG5412BF/ADG5413BF can be operated from a to ground are blocked, in both the powered and unpowered dual-supply of ±5 V up to ±22 V or a single power supply condition. of 8 V up to 44 V.
Rev. B Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2014–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL-SUPPLY ±20 V DUAL-SUPPLY 12 V SINGLE-SUPPLY 36 V SINGLE-SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation FAULT PROTECTION Power-On Protection Power-Off Protection Digital Input Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE LOW IMPEDANCE CHANNEL PROTECTION HIGH VOLTAGE SURGE SUPPRESSION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS OUTLINE DIMENSIONS ORDERING GUIDE
