Seiten / Seite8 / 2 — Rev. 2.2. BSP89. Thermal Characteristics Parameter. Symbol. Values. Unit. …
Revision02_02
Dateiformat / GrößePDF / 668 Kb
DokumentenspracheEnglisch

Rev. 2.2. BSP89. Thermal Characteristics Parameter. Symbol. Values. Unit. min. typ. max. Characteristics. Electrical Characteristics

Rev 2.2 BSP89 Thermal Characteristics Parameter Symbol Values Unit min typ max Characteristics Electrical Characteristics

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Rev. 2.2 BSP89 Thermal Characteristics Parameter Symbol Values Unit min. typ. max. Characteristics

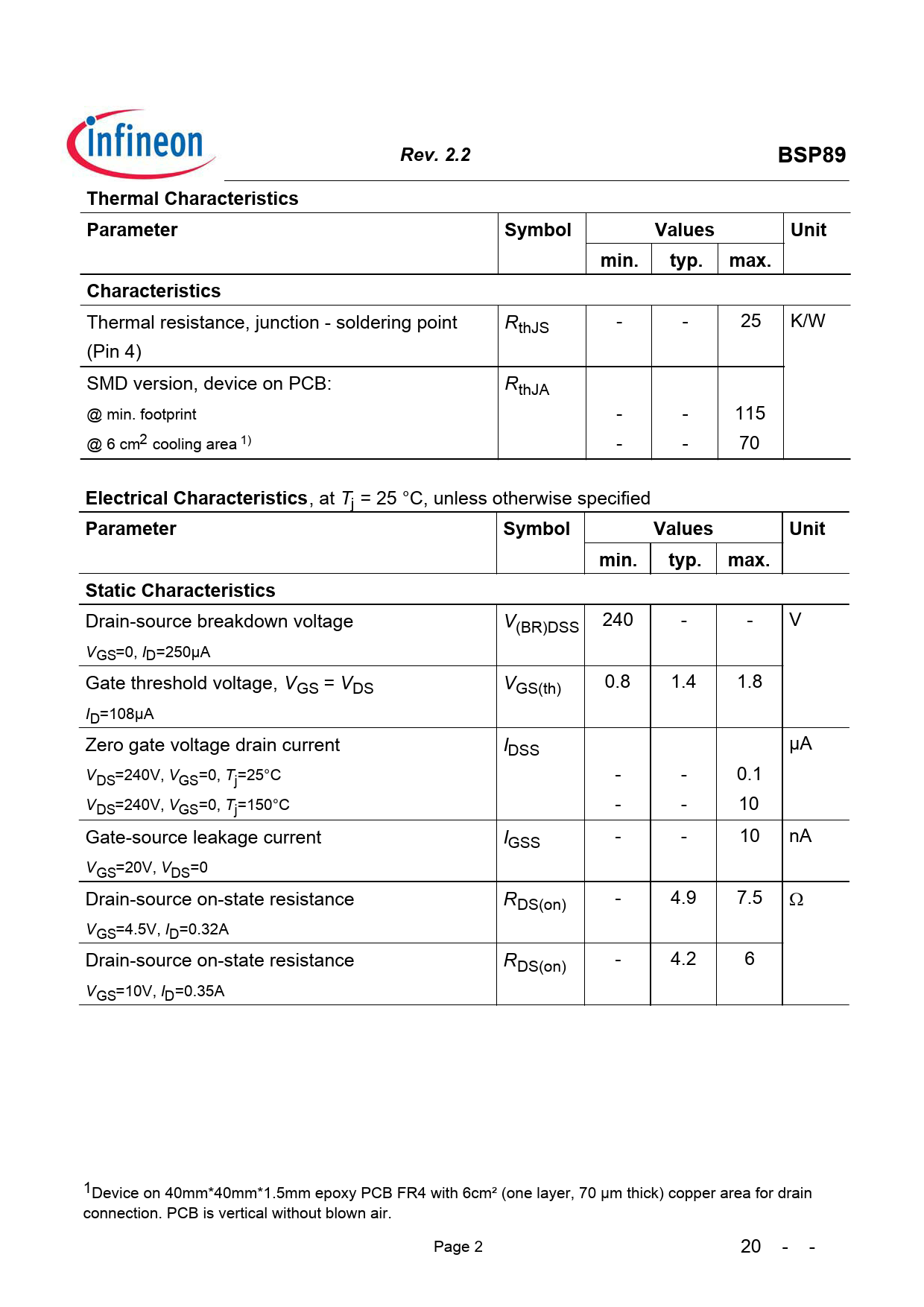

Thermal resistance, junction - soldering point RthJS - - 25 K/W (Pin 4) SMD version, device on PCB: RthJA @ min. footprint - - 115 @ 6 cm2 cooling area 1) - - 70
Electrical Characteristics
, at Tj = 25 °C, unless otherwise specified
Parameter Symbol Values Unit min. typ. max. Static Characteristics
Drain-source breakdown voltage V(BR)DSS 240 - - V VGS=0, ID=250µA Gate threshold voltage, VGS = VDS VGS(th) 0.8 1.4 1.8 ID=108µA Zero gate voltage drain current IDSS µA VDS=240V, VGS=0, Tj=25°C - - 0.1 VDS=240V, VGS=0, Tj=150°C - - 10 Gate-source leakage current IGSS - - 10 nA VGS=20V, VDS=0 Drain-source on-state resistance RDS(on) - 4.9 7.5 W VGS=4.5V, ID=0.32A Drain-source on-state resistance RDS(on) - 4.2 6 VGS=10V, ID=0.35A 1Device on 40mm*40mm*1.5mm epoxy PCB FR4 with 6cm² (one layer, 70 µm thick) copper area for drain connection. PCB is vertical without blown air. Page 2 2012-11-29
