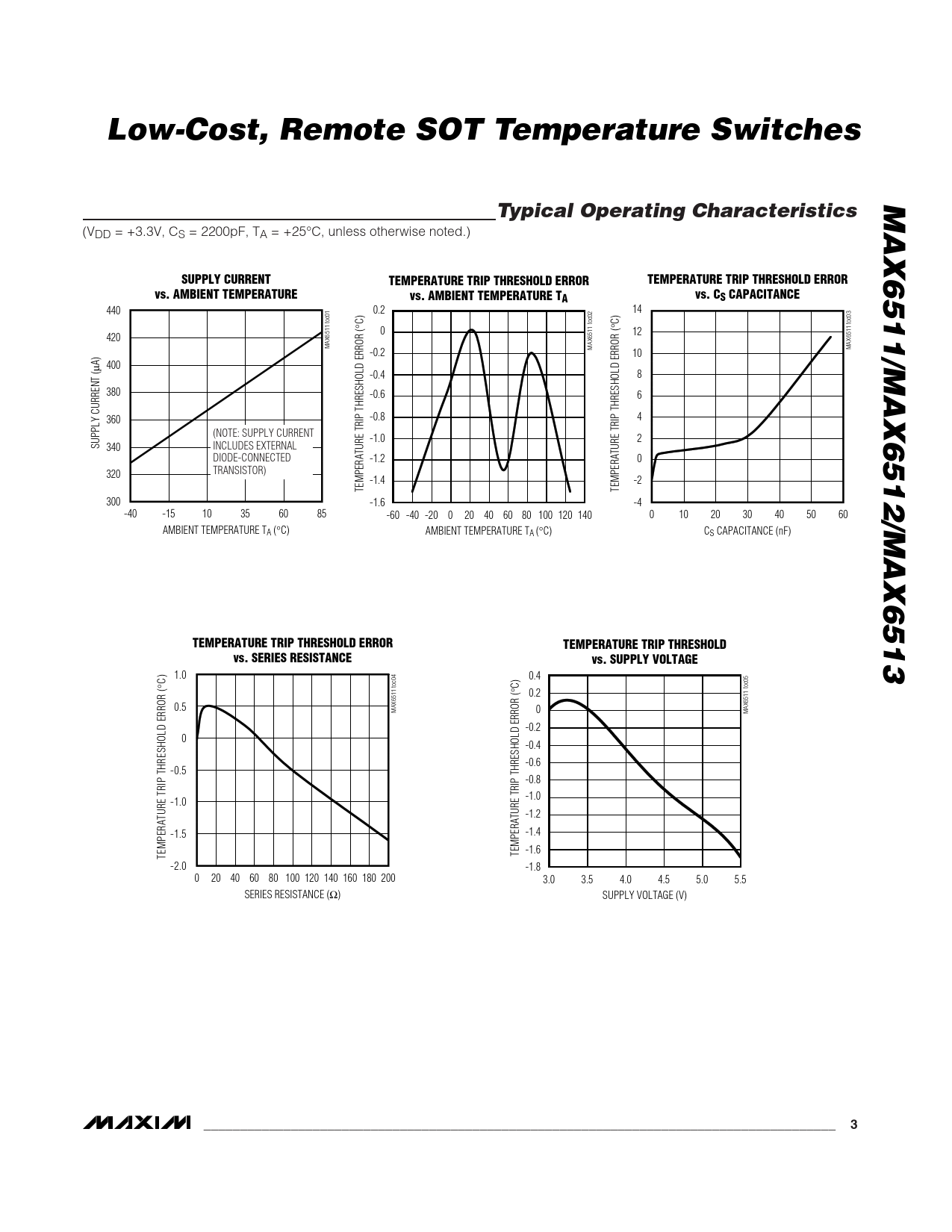

Low-Cost, Remote SOT Temperature Switches. MAX6511/MAX6512/MAX6513. Typical Operating Characteristics. SUPPLY CURRENT

Low-Cost, Remote SOT Temperature Switches MAX6511/MAX6512/MAX6513 Typical Operating Characteristics SUPPLY CURRENT

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Low-Cost, Remote SOT Temperature Switches MAX6511/MAX6512/MAX6513 Typical Operating Characteristics
(VDD = +3.3V, CS = 2200pF, TA = +25°C, unless otherwise noted.)
SUPPLY CURRENT TEMPERATURE TRIP THRESHOLD ERROR TEMPERATURE TRIP THRESHOLD ERROR vs. AMBIENT TEMPERATURE vs. AMBIENT TEMPERATURE TA vs. CS CAPACITANCE
440 0.2 14 °C) °C) 0 12 420 MAX6511 toc01 MAX6511 toc03 -0.2 MAX6511 toc02 10 400 µA) -0.4 8 380 -0.6 6 360 -0.8 4 (NOTE: SUPPLY CURRENT -1.0 2 SUPPLY CURRENT ( 340 INCLUDES EXTERNAL DIODE-CONNECTED -1.2 0 320 TRANSISTOR) -1.4 -2 TEMPERATURE TRIP THRESHOLD ERROR ( TEMPERATURE TRIP THRESHOLD ERROR ( 300 -1.6 -4 -40 -15 10 35 60 85 -60 -40 -20 0 20 40 60 80 100 120 140 0 10 20 30 40 50 60 AMBIENT TEMPERATURE TA (°C) AMBIENT TEMPERATURE TA (°C) CS CAPACITANCE (nF)
TEMPERATURE TRIP THRESHOLD ERROR TEMPERATURE TRIP THRESHOLD vs. SERIES RESISTANCE vs. SUPPLY VOLTAGE
1.0 0.4 °C) °C) 0.2 0.5 MAX6511 toc04 0 MAX6511 toc05 -0.2 0 -0.4 -0.6 -0.5 -0.8 -1.0 -1.0 -1.2 -1.5 -1.4 -1.6 TEMPERATURE TRIP THRESHOLD ERROR ( TEMPERATURE TRIP THRESHOLD ERROR ( -2.0 -1.8 0 20 40 60 80 100 120 140 160 180 200 3.0 3.5 4.0 4.5 5.0 5.5 SERIES RESISTANCE (Ω) SUPPLY VOLTAGE (V)
