Datasheet EPC21603 (Efficient Power Conversion) - 8
| Hersteller | Efficient Power Conversion |
| Beschreibung | 40 V, 10 A, LVDS Logic, eToF Laser Driver IC |
| Seiten / Seite | 9 / 8 — EPC21603 – 40 V, 10 A eToF. Laser Driver IC –. PRELIMINARY. Recommended … |
| Dateiformat / Größe | PDF / 838 Kb |
| Dokumentensprache | Englisch |

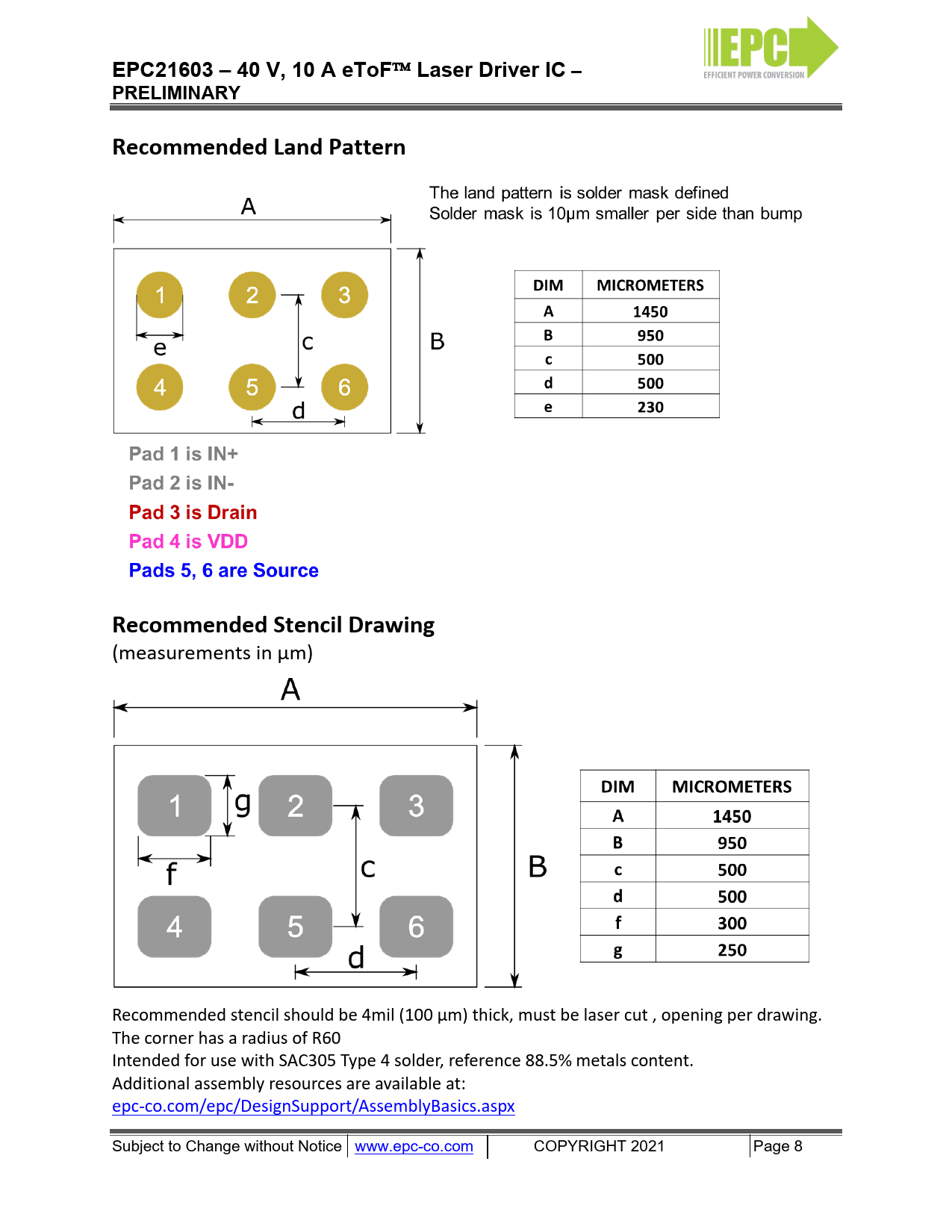

EPC21603 – 40 V, 10 A eToF. Laser Driver IC –. PRELIMINARY. Recommended Land Pattern. Recommended Stencil Drawing
Modelllinie für dieses Datenblatt
Textversion des Dokuments
EPC21603 – 40 V, 10 A eToF
Laser Driver IC – PRELIMINARY Recommended Land Pattern Recommended Stencil Drawing
(measurements in µm)
Recommended stencil should be 4mil (100 µm) thick, must be laser cut , opening per drawing. The corner has a radius of R60 Intended for use with SAC305 Type 4 solder, reference 88.5% metals content. Additional assembly resources are available at: epc-co.com/epc/DesignSupport/AssemblyBasics.aspx Subject to Change without Notice www.epc-co.com COPYRIGHT 2021 Page 8
Laser Driver IC – PRELIMINARY Recommended Land Pattern Recommended Stencil Drawing
(measurements in µm)
Recommended stencil should be 4mil (100 µm) thick, must be laser cut , opening per drawing. The corner has a radius of R60 Intended for use with SAC305 Type 4 solder, reference 88.5% metals content. Additional assembly resources are available at: epc-co.com/epc/DesignSupport/AssemblyBasics.aspx Subject to Change without Notice www.epc-co.com COPYRIGHT 2021 Page 8
