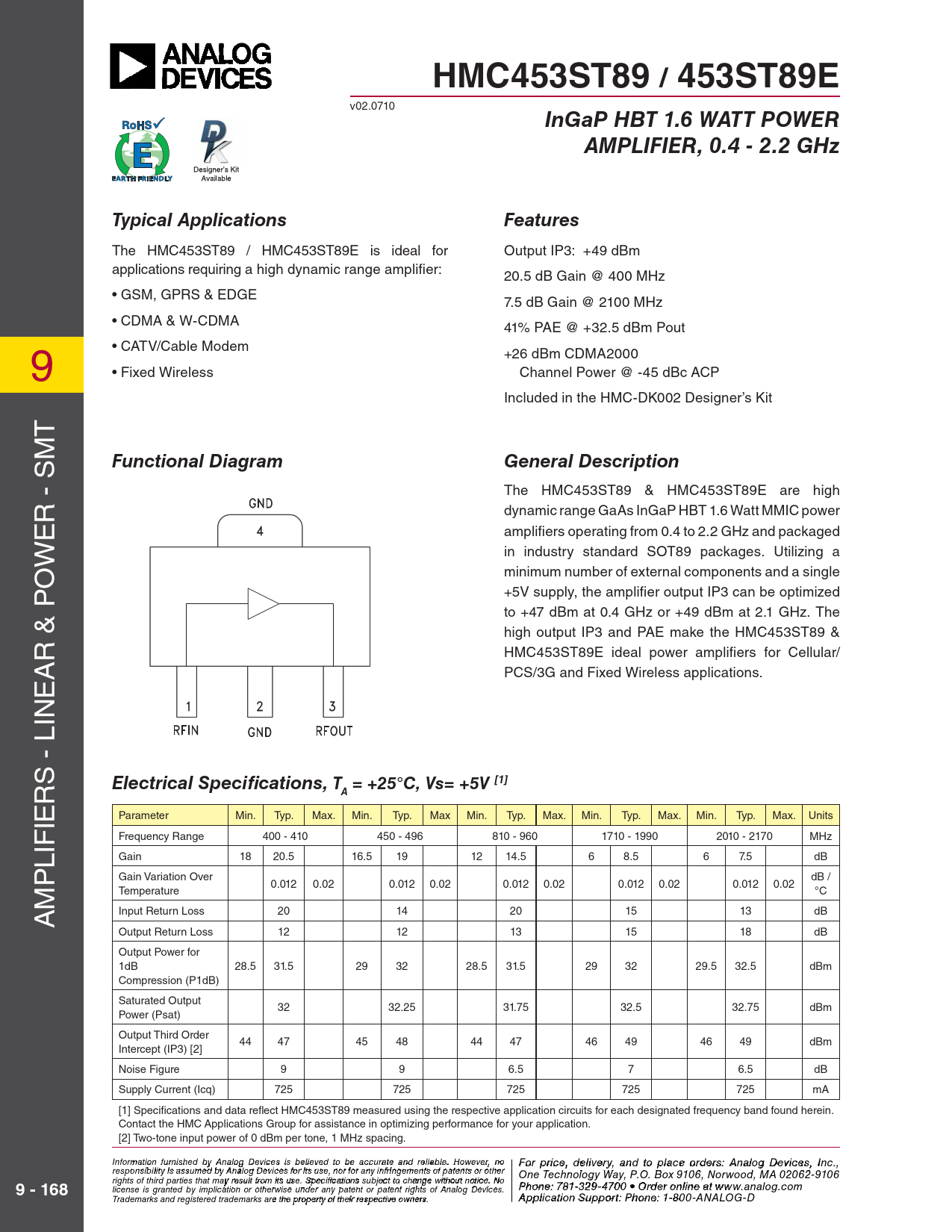

HMC453ST89 / 453ST89E
v02.0710
InGaP HBT 1.6 WATT POWER AMPLIFIER, 0.4 - 2.2 GHz Typical Applications Features
The HMC453ST89 / HMC453ST89E is ideal for Output IP3: +49 dBm applications requiring a high dynamic range amplifi er: 20.5 dB Gain @ 400 MHz • GSM, GPRS & EDGE 7.5 dB Gain @ 2100 MHz • CDMA & W-CDMA 41% PAE @ +32.5 dBm Pout • CATV/Cable Modem 9 +26 dBm CDMA2000 • Fixed Wireless Channel Power @ -45 dBc ACP Included in the HMC-DK002 Designer’s Kit T
Functional Diagram General Description
The HMC453ST89 & HMC453ST89E are high R - SM dynamic range GaAs InGaP HBT 1.6 Watt MMIC power E amplifi ers operating from 0.4 to 2.2 GHz and packaged W in industry standard SOT89 packages. Utilizing a O minimum number of external components and a single +5V supply, the amplifi er output IP3 can be optimized to +47 dBm at 0.4 GHz or +49 dBm at 2.1 GHz. The high output IP3 and PAE make the HMC453ST89 & R & P HMC453ST89E ideal power amplifi ers for Cellular/ A PCS/3G and Fixed Wireless applications. E IN S - L R
Electrical Specifi cations, T = +25°C, Vs= +5V [1] A
IE Parameter Min. Typ. Max. Min. Typ. Max Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units IF Frequency Range 400 - 410 450 - 496 810 - 960 1710 - 1990 2010 - 2170 MHz L Gain 18 20.5 16.5 19 12 14.5 6 8.5 6 7.5 dB P Gain Variation Over dB / 0.012 0.02 0.012 0.02 0.012 0.02 0.012 0.02 0.012 0.02 M Temperature °C A Input Return Loss 20 14 20 15 13 dB Output Return Loss 12 12 13 15 18 dB Output Power for 1dB 28.5 31.5 29 32 28.5 31.5 29 32 29.5 32.5 dBm Compression (P1dB) Saturated Output 32 32.25 31.75 32.5 32.75 dBm Power (Psat) Output Third Order 44 47 45 48 44 47 46 49 46 49 dBm Intercept (IP3) [2] Noise Figure 9 9 6.5 7 6.5 dB Supply Current (Icq) 725 725 725 725 725 mA [1] Specifi cations and data refl ect HMC453ST89 measured using the respective application circuits for each designated frequency band found herein. Contact the HMC Applications Group for assistance in optimizing performance for your application. [2] Two-tone input power of 0 dBm per tone, 1 MHz spacing. Info F rmoatr pr ion f iurcne, de ished b ly iv A e n r al y o a g D n evd to p ices is bla eli c eve o ed t rde o be ras: H ccuratite tiatne M d reli iacr ble ow . Ho av wev e C er, n o o rpo Fora r t p iro ic n e ,, 2 d 0 eli A ve lrpha R y, and toad, C o place hoel rd m er s s fo : Ard, MA 01 nalog Devic 8 e 2 s 4 , Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rde hone r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .ehit r o t nilte in .c e ao t m
9 - 168
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plica r app tion Su s p @ po h rt itt : P ite ho .c ne o : 1m -800-ANALOG-D
