| Hersteller | Analog Devices |
| Beschreibung | GaAs, pHEMT, MMIC,1 W Power Amplifier, 20 GHz to 44 GHz |
| Seiten / Seite | 23 / 4 — ADPA7005CHIP. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL … |
| Dateiformat / Größe | PDF / 522 Kb |
| Dokumentensprache | Englisch |

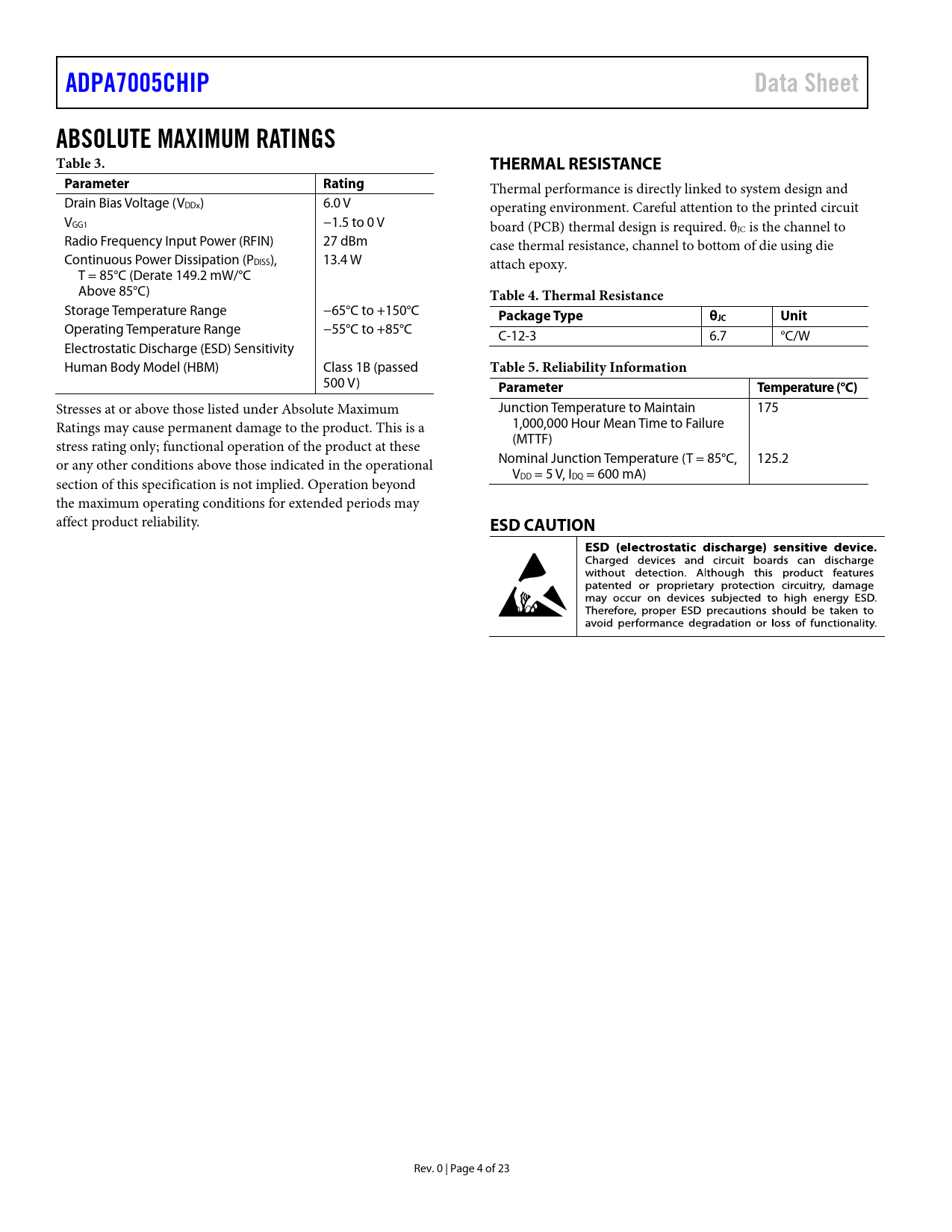

ADPA7005CHIP. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE. Parameter. Rating. Table 4. Thermal Resistance
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ADPA7005CHIP Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
Thermal performance is directly linked to system design and Drain Bias Voltage (VDDx) 6.0 V operating environment. Careful attention to the printed circuit VGG1 −1.5 to 0 V board (PCB) thermal design is required. θJC is the channel to Radio Frequency Input Power (RFIN) 27 dBm case thermal resistance, channel to bottom of die using die Continuous Power Dissipation (PDISS), 13.4 W attach epoxy. T = 85°C (Derate 149.2 mW/°C Above 85°C)
Table 4. Thermal Resistance
Storage Temperature Range −65°C to +150°C
Package Type θJC Unit
Operating Temperature Range −55°C to +85°C C-12-3 6.7 °C/W Electrostatic Discharge (ESD) Sensitivity Human Body Model (HBM) Class 1B (passed
Table 5. Reliability Information
500 V)
Parameter Temperature (°C)
Stresses at or above those listed under Absolute Maximum Junction Temperature to Maintain 175 Ratings may cause permanent damage to the product. This is a 1,000,000 Hour Mean Time to Failure stress rating only; functional operation of the product at these (MTTF) or any other conditions above those indicated in the operational Nominal Junction Temperature (T = 85°C, 125.2 V section of this specification is not implied. Operation beyond DD = 5 V, IDQ = 600 mA) the maximum operating conditions for extended periods may affect product reliability.
