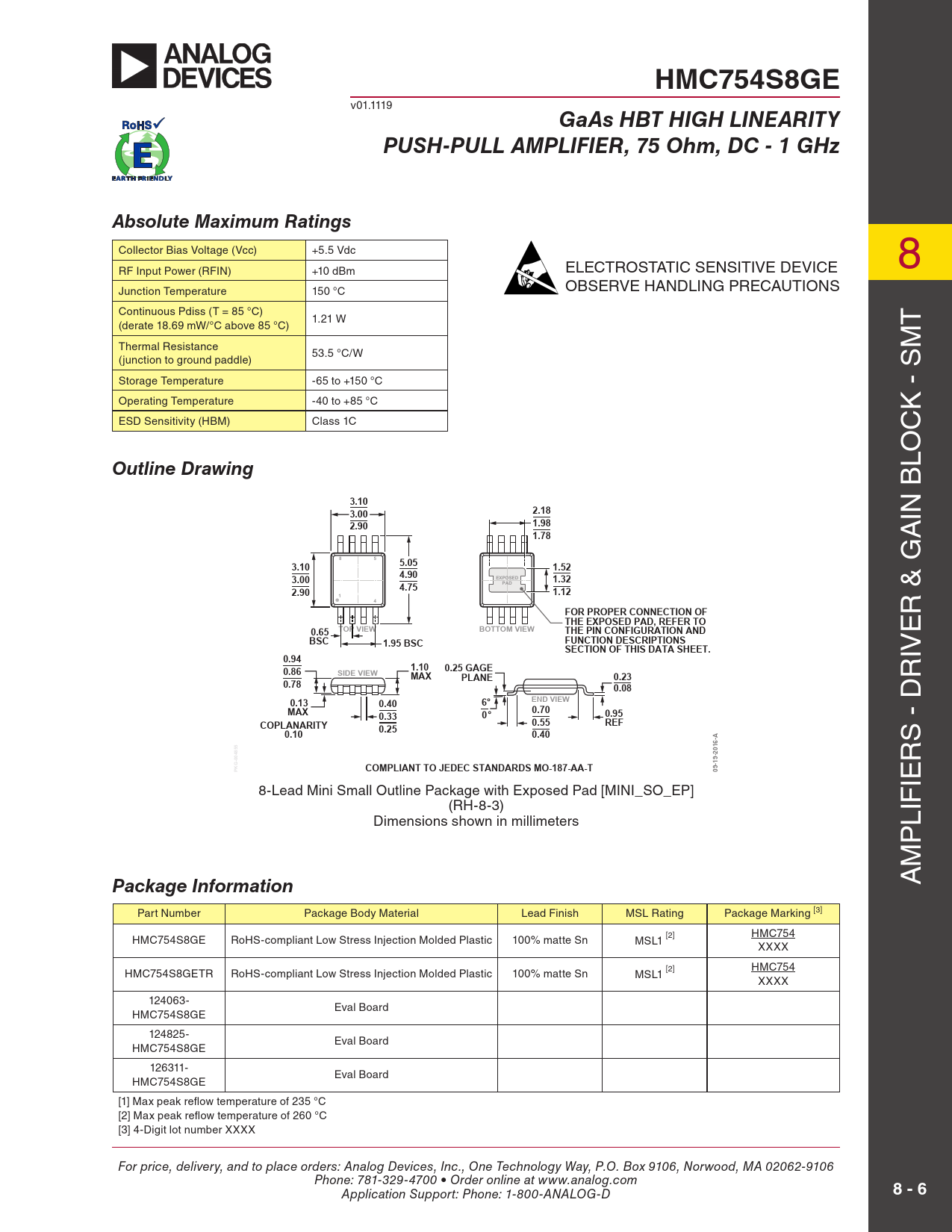

Datasheet HMC754S8GE (Analog Devices) - 6

HMC754S8GE
v01.1119
GaAs HBT HIGH LINEARITY PUSH-PULL AMPLIFIER, 75 Ohm, DC - 1 GHz Absolute Maximum Ratings
Collector Bias Voltage (Vcc) +5.5 Vdc RF Input Power (RFIN) +10 dBm ELECTROSTATIC SENSITIVE DEVICE 8 Junction Temperature 150 °C OBSERVE HANDLING PRECAUTIONS Continuous Pdiss (T = 85 °C) 1.21 W (derate 18.69 mW/°C above 85 °C) T Thermal Resistance M 53.5 °C/W (junction to ground paddle) Storage Temperature -65 to +150 °C Operating Temperature -40 to +85 °C K - S ESD Sensitivity (HBM) Class 1C C
8-Lead Mini Small Outline Package with Exposed Pad [MINI_SO_EP] (RH-8-3) Dimensions shown in millimeters
LO
Outline Drawing 3.10 2.18 3.00
IN B
1.98 2.90 1.78
A
8 5 3.10 5.05 1.52 3.00 4.90 EXPOSED PAD 1.32 2.90 4.75 1 1.12 4 FOR PROPER CONNECTION OF
R & G
THE EXPOSED PAD, REFER TO TOP VIEW BOTTOM VIEW 0.65 THE PIN CONFIGURATION AND
E
BSC 1.95 BSC FUNCTION DESCRIPTIONS SECTION OF THIS DATA SHEET. 0.94
IV
0.86 1.10 SIDE VIEW 0.25 GAGE MAX PLANE 0.23
R
0.78 0.08 0.13 0.40 END VIEW 6° MAX 0.33 0.70 0° 0.95 COPLANARITY 0.25 0.55 REF 0.10 0.40
S - D R
PKG-004855 COMPLIANT TO JEDEC STANDARDS MO-187-AA-T 09-19-2016-A
IE 8-Lead Mini Small Outline Package with Exposed Pad [MINI_SO_EP] (RH-8-3) Dimensions shown in mil imeters LIF P M A
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [3] HMC754S8GE RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL1 [2] HMC754 XXXX HMC754S8GETR RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL1 [2] HMC754 XXXX 124063- Eval Board HMC754S8GE 124825- Eval Board HMC754S8GE 126311- Eval Board HMC754S8GE [1] Max peak reflow temperature of 235 °C [2] Max peak reflow temperature of 260 °C [3] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
