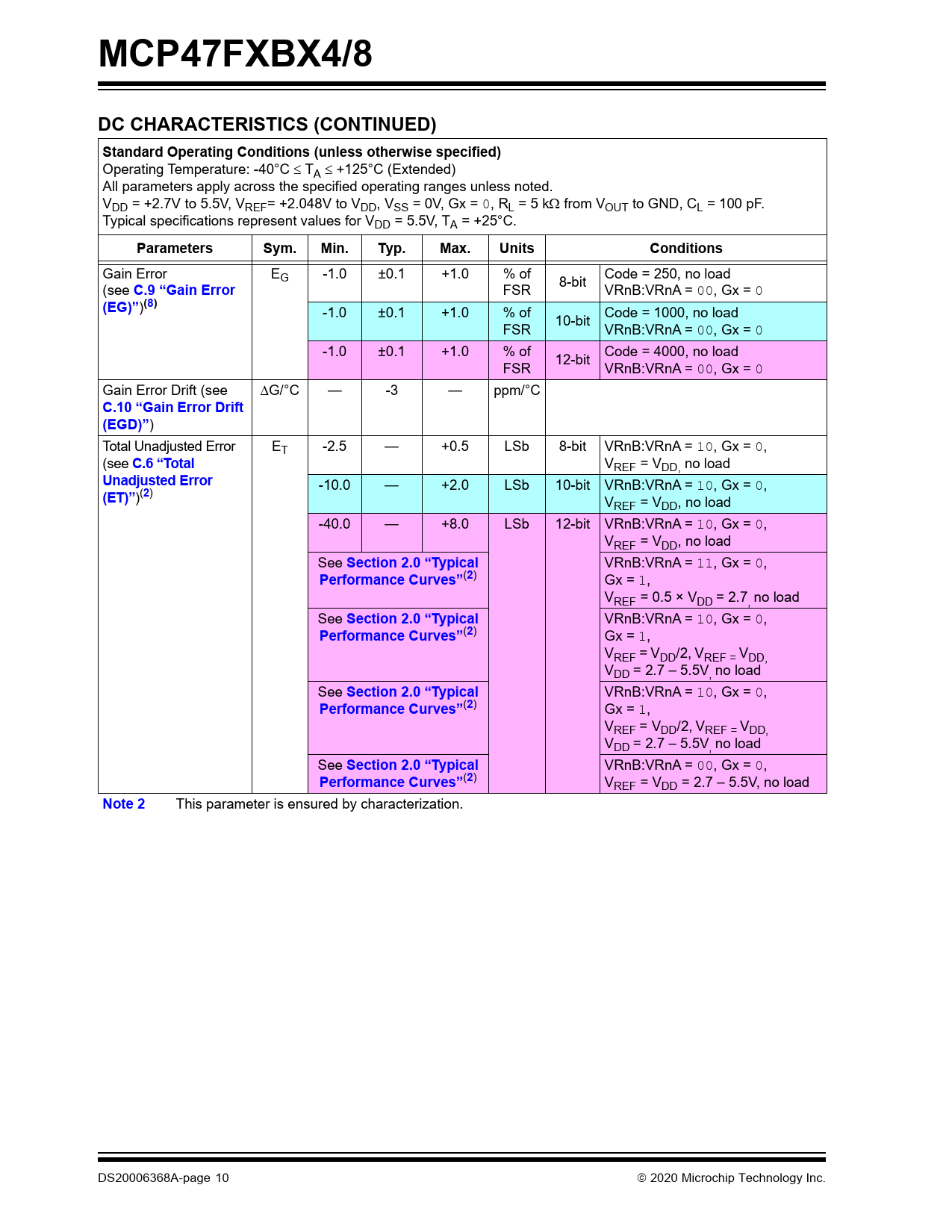

MCP47FXBX4/8. DC CHARACTERISTICS (CONTINUED). Standard Operating Conditions (unless otherwise specified)

MCP47FXBX4/8 DC CHARACTERISTICS (CONTINUED) Standard Operating Conditions (unless otherwise specified)

Modelllinie für dieses Datenblatt

Textversion des Dokuments

MCP47FXBX4/8
DC CHARACTERISTICS (CONTINUED)
Standard Operating Conditions (unless otherwise specified)
Operating Temperature: -40°C  TA  +125°C (Extended)
All parameters apply across the specified operating ranges unless noted.
VDD = +2.7V to 5.5V, VREF= +2.048V to VDD, VSS = 0V, Gx = 0, RL = 5 k from VOUT to GND, CL = 100 pF.
Typical specifications represent values for VDD = 5.5V, TA = +25°C.
Parameters
Gain Error
(see C.9 “Gain Error
(EG)”)(8) Sym. Min. Typ. Max. Units Conditions EG -1.0 ±0.1 +1.0 % of
FSR 8-bit Code = 250, no load
VRnB:VRnA = 00, Gx = 0 -1.0 ±0.1 +1.0 % of
FSR 10-bit Code = 1000, no load
VRnB:VRnA = 00, Gx = 0 -1.0 ±0.1 +1.0 % of
FSR 12-bit Code = 4000, no load
VRnB:VRnA = 00, Gx = 0 Gain Error Drift (see
C.10 “Gain Error Drift
(EGD)”) G/°C — -3 — ppm/°C Total Unadjusted Error
(see C.6 “Total
Unadjusted Error
(ET)”)(2) ET -2.5 — +0.5 LSb 8-bit VRnB:VRnA = 10, Gx = 0,
VREF = VDD, no load -10.0 — +2.0 LSb 10-bit VRnB:VRnA = 10, Gx = 0,
VREF = VDD, no load -40.0 — +8.0 LSb 12-bit VRnB:VRnA = 10, Gx = 0,
VREF = VDD, no load Note 2 See Section 2.0 “Typical
Performance Curves”(2) VRnB:VRnA = 11, Gx = 0,
Gx = 1,
VREF = 0.5 × VDD = 2.7, no load See Section 2.0 “Typical
Performance Curves”(2) VRnB:VRnA = 10, Gx = 0,
Gx = 1,
VREF = VDD/2, VREF = VDD,
VDD = 2.7 – 5.5V, no load See Section 2.0 “Typical
Performance Curves”(2) VRnB:VRnA = 10, Gx = 0,
Gx = 1,
VREF = VDD/2, VREF = VDD,
VDD = 2.7 – 5.5V, no load See Section 2.0 “Typical
Performance Curves”(2) VRnB:VRnA = 00, Gx = 0,
VREF = VDD = 2.7 – 5.5V, no load This parameter is ensured by characterization. DS20006368A-page 10  2020 Microchip Technology Inc.
