TLP2312. 7. Absolute. Maximum. Ratings. (Note). (Unless. otherwise. specified,. Ta. =. 25. ). Characteristics. Symbol. Note. Rating. Unit. LED. Input. forward

TLP2312 7 Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Rating Unit LED Input forward

Modelllinie für dieses Datenblatt

Textversion des Dokuments

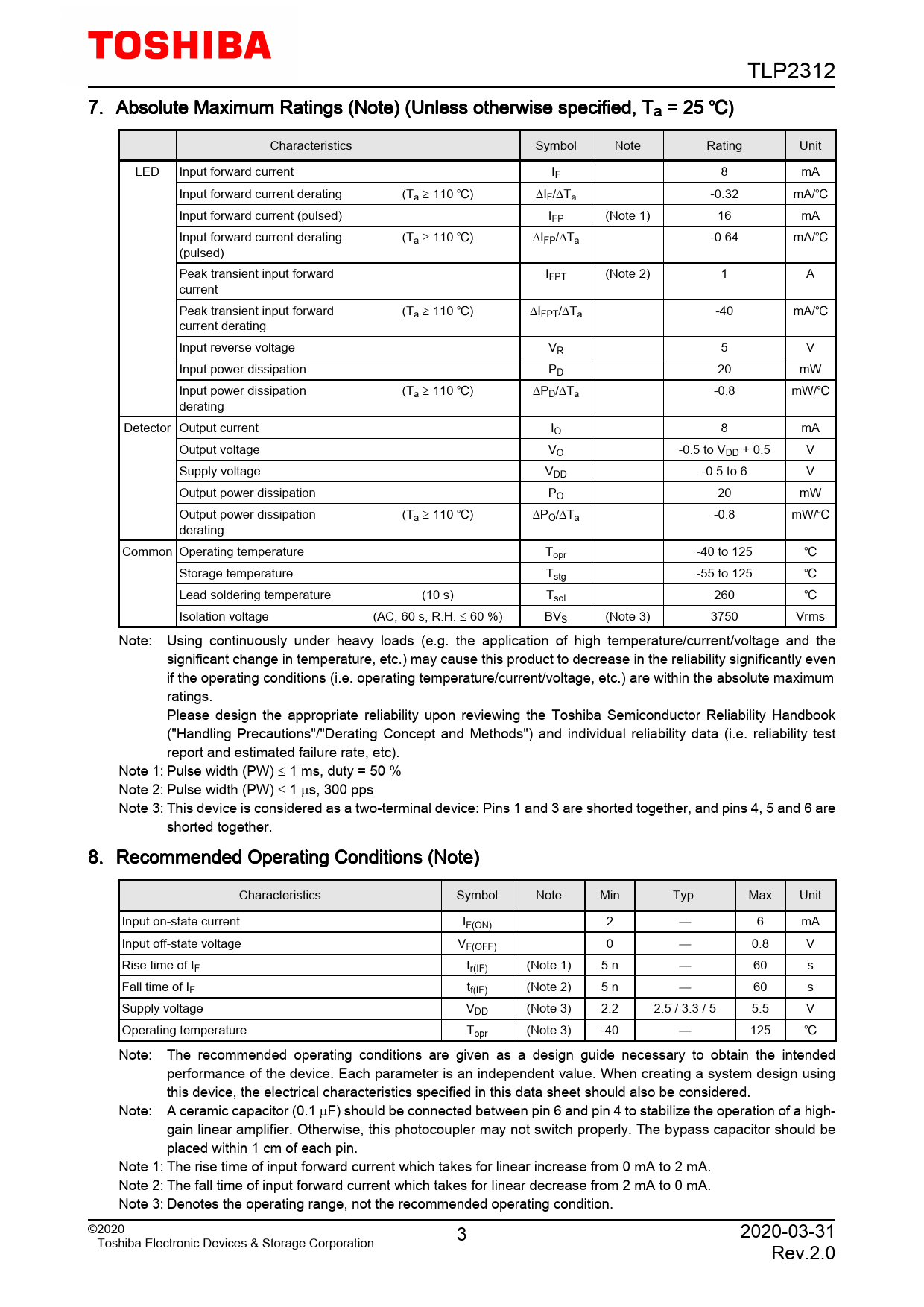

TLP2312 7. Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Rating Unit LED Input forward current IF 8 mA Input forward current derating (Ta ≥ 110 ) ∆IF/∆Ta -0.32 mA/ Input forward current (pulsed) IFP (Note 1) 16 mA Input forward current derating (Ta ≥ 110 ) ∆IFP/∆Ta -0.64 mA/ (pulsed) Peak transient input forward IFPT (Note 2) 1 A current Peak transient input forward (Ta ≥ 110 ) ∆IFPT/∆Ta -40 mA/ current derating Input reverse voltage VR 5 V Input power dissipation PD 20 mW Input power dissipation (Ta ≥ 110 ) ∆PD/∆Ta -0.8 mW/ derating Detector Output current IO 8 mA Output voltage VO -0.5 to VDD + 0.5 V Supply voltage VDD -0.5 to 6 V Output power dissipation PO 20 mW Output power dissipation (Ta ≥ 110 ) ∆PO/∆Ta -0.8 mW/ derating Common Operating temperature Topr -40 to 125 Storage temperature Tstg -55 to 125 Lead soldering temperature (10 s) Tsol 260 Isolation voltage (AC, 60 s, R.H. ≤ 60 %) BVS (Note 3) 3750 Vrms Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test report and estimated failure rate, etc). Note 1: Pulse width (PW) ≤ 1 ms, duty = 50 % Note 2: Pulse width (PW) ≤ 1 µs, 300 pps Note 3: This device is considered as a two-terminal device: Pins 1 and 3 are shorted together, and pins 4, 5 and 6 are shorted together. 8. Recommended Operating Conditions (Note) Characteristics Symbol Note Min Typ. Max Unit Input on-state current IF(ON) 2  6 mA Input off-state voltage VF(OFF) 0  0.8 V Rise time of IF tr(IF) (Note 1) 5 n  60 s Fall time of IF tf(IF) (Note 2) 5 n  60 s Supply voltage VDD (Note 3) 2.2 2.5 / 3.3 / 5 5.5 V Operating temperature Topr (Note 3) -40  125 Note: The recommended operating conditions are given as a design guide necessary to obtain the intended performance of the device. Each parameter is an independent value. When creating a system design using this device, the electrical characteristics specified in this data sheet should also be considered. Note: A ceramic capacitor (0.1 µF) should be connected between pin 6 and pin 4 to stabilize the operation of a high- gain linear amplifier. Otherwise, this photocoupler may not switch properly. The bypass capacitor should be placed within 1 cm of each pin. Note 1: The rise time of input forward current which takes for linear increase from 0 mA to 2 mA. Note 2: The fall time of input forward current which takes for linear decrease from 2 mA to 0 mA. Note 3: Denotes the operating range, not the recommended operating condition. ©2020 3 2020-03-31 Toshiba Electronic Devices & Storage Corporation Rev.2.0
