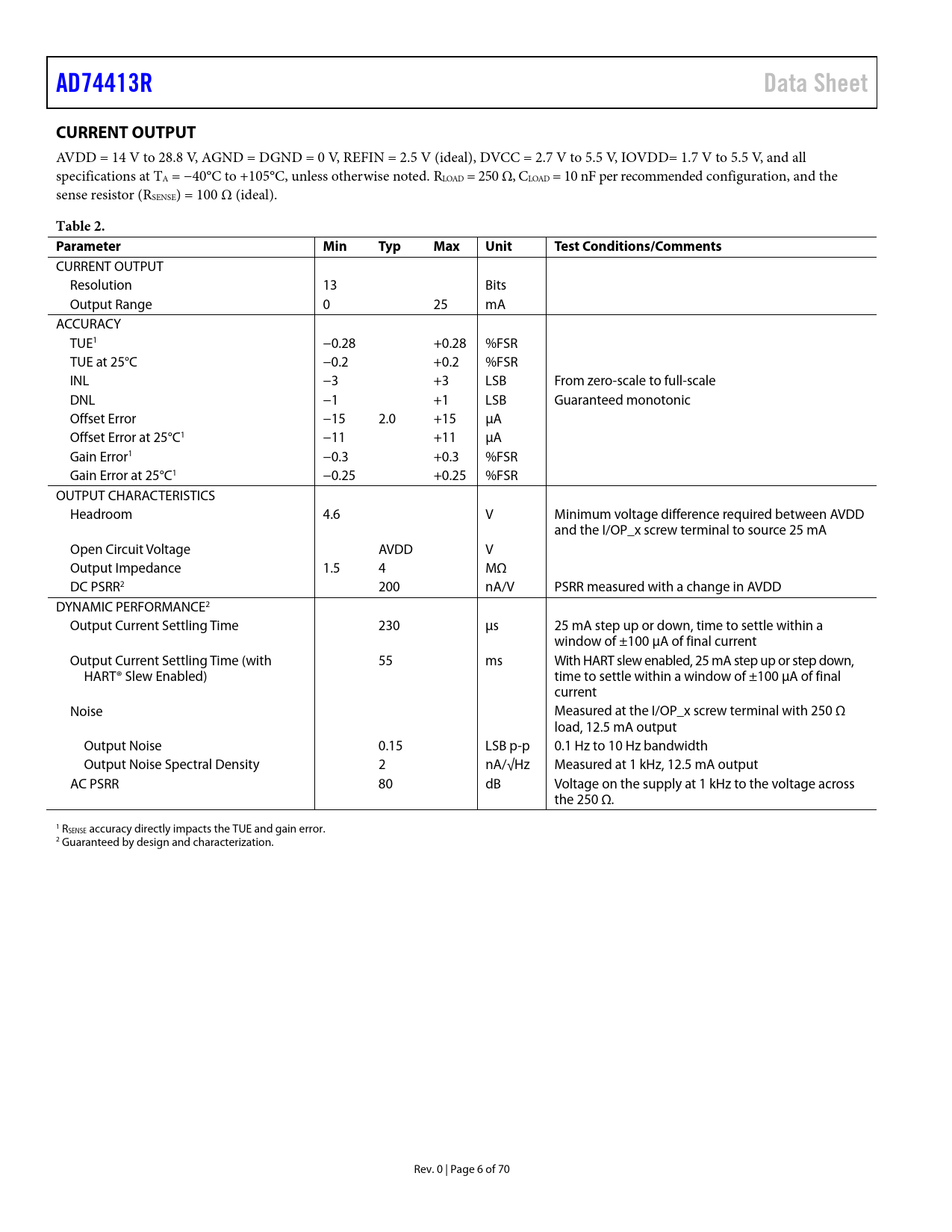

AD74413R Data Sheet CURRENT OUTPUT
AVDD = 14 V to 28.8 V, AGND = DGND = 0 V, REFIN = 2.5 V (ideal), DVCC = 2.7 V to 5.5 V, IOVDD= 1.7 V to 5.5 V, and all specifications at TA = −40°C to +105°C, unless otherwise noted. RLOAD = 250 Ω, CLOAD = 10 nF per recommended configuration, and the sense resistor (RSENSE) = 100 Ω (ideal).
Table 2. Parameter Min Typ Max Unit Test Conditions/Comments
