BeschreibungAutomotive Audio Bus A2B Transceiver
Seiten / Seite38 / 1 — Automotive Audio Bus A2B Transceiver. AD2420(W). /AD2426(W). /AD2427(W). …
RevisionB
Dateiformat / GrößePDF / 2.1 Mb
DokumentenspracheEnglisch

Automotive Audio Bus A2B Transceiver. AD2420(W). /AD2426(W). /AD2427(W). /AD2428(W). AD2429(W). A2B BUS FEATURES

Datasheet AD2420(W), AD2426(W), AD2427(W), AD2428(W), AD2429(W) Analog Devices, Revision: B

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 17
Automotive Audio Bus A2B Transceiver AD2420(W) /AD2426(W) /AD2427(W) /AD2428(W) / AD2429(W) A2B BUS FEATURES A2B TRANSCEIVER FEATURES Line topology Configurable A2B bus master or slave operation Single master, multiple slave I2C interface Up to 15 m between nodes and up to 40 m overall cable 8-bit to 32-bit multichannel I2S/TDM interface length (see Table 9) Programmable I2S/TDM data rate Communication over distance Up to 32 upstream and 32 downstream channels Synchronous data PDM interface Multichannel I2S/TDM to I2S/TDM Programmable PDM clock rate Synchronous clock, phase aligned in all nodes Up to 4 high dynamic range microphone inputs Low latency slave to slave communication Simultaneous reception of I2S data with up to 4 PDM Control and status information I2C to I2C microphones GPIO and interrupt Unique ID register for each transceiver Bus power or local power slave nodes Crossover or straight-through cabling Configurable with SigmaStudio graphical software tool Programmable settings to optimize EMC performance AEC-Q100 qualified for automotive applications APPLICATIONS Audio communication link Microphone arrays Beamforming Hands free and in car communication Active and road noise cancellation Audio/video conferencing systems IOVDD DVDD PLLVDD VOUT1 VIN VOUT2 BTRXVDD SCL A2B BP SDA PLL VREG1 VREG2 TRX B BCM IRQ/IO0 (Towards I2C BN Last Slave) ADR1/IO1 ADR2/IO2 SWP DIAGNOSTICS SENSE DTX0/IO3 A2B AP DTX1/IO4 I2S/TDM TRX A ACM DRX0/IO5 PDM (Towards AN DRX1/IO6 Master) PDMCLK/IO7 BCLK SYNC VSSN VSS ATRXVDD

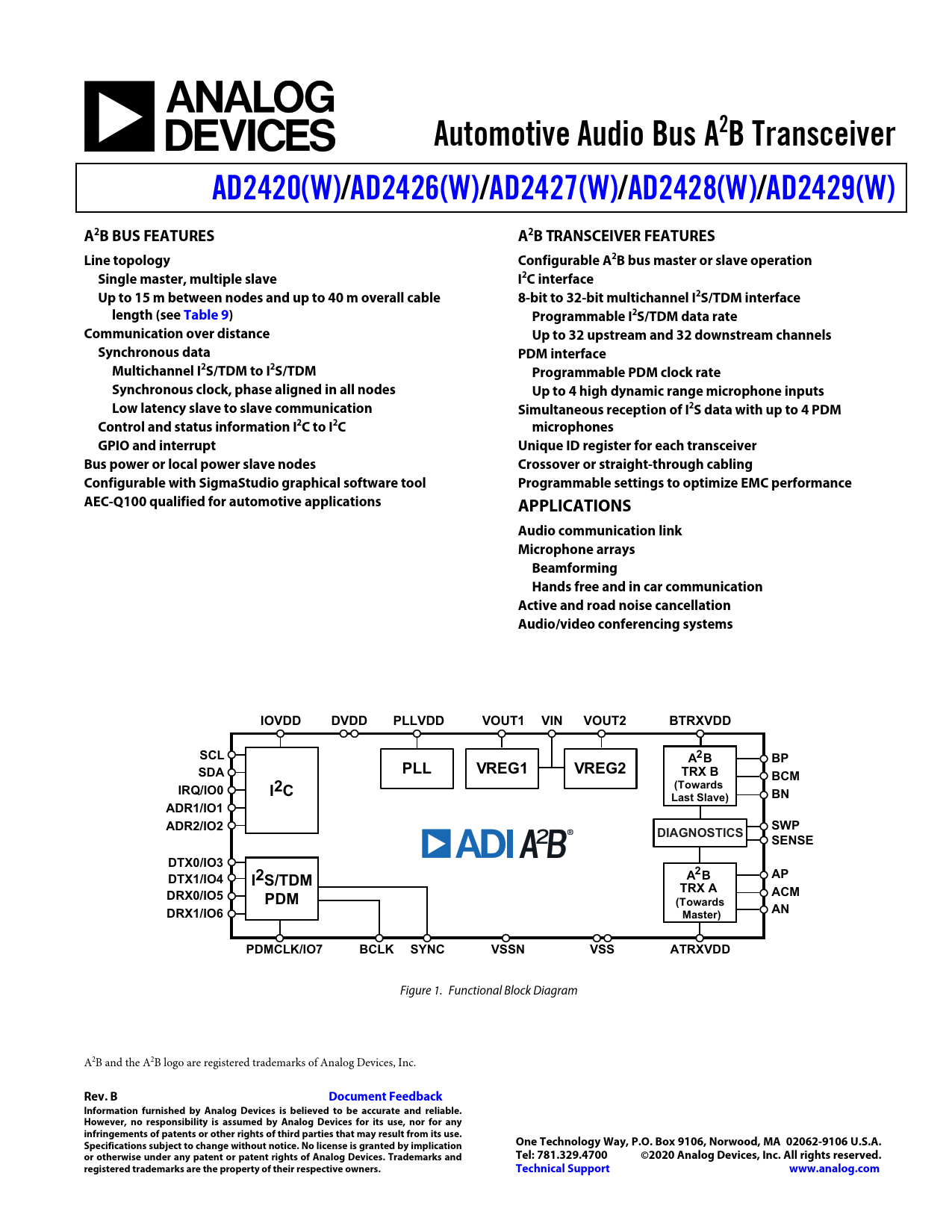

Figure 1. Functional Block Diagram A2B and the A2B logo are registered trademarks of Analog Devices, Inc.
