Known Good Die. ADA4665-2-KGD. SPECIFICATIONS ELECTRICAL CHARACTERISTICS—16 V OPERATION. Table 1. Parameter. Symbol
Modelllinie für dieses Datenblatt
Textversion des Dokuments

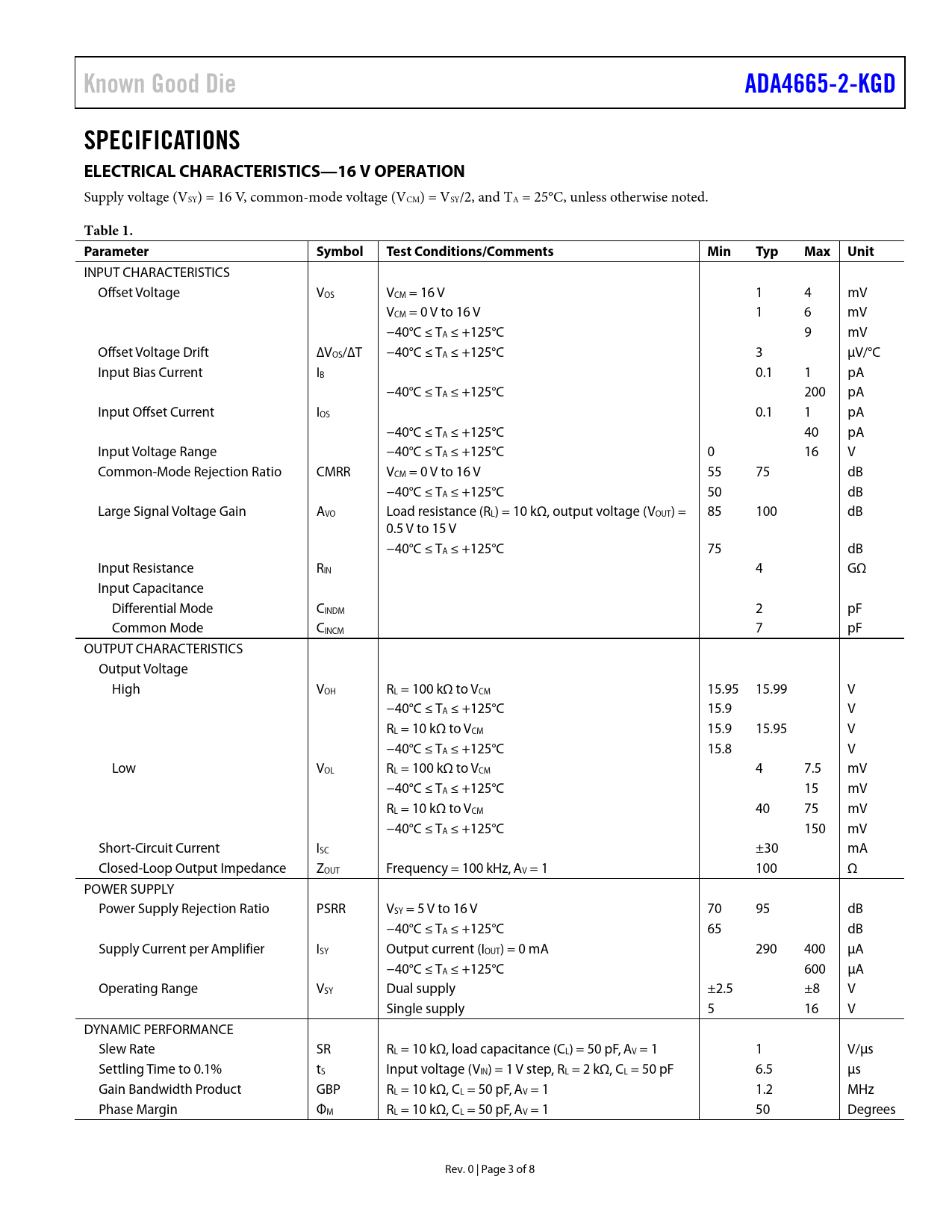

Known Good Die ADA4665-2-KGD SPECIFICATIONS ELECTRICAL CHARACTERISTICS—16 V OPERATION
Supply voltage (VSY) = 16 V, common-mode voltage (VCM) = VSY/2, and TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS VCM = 16 V 1 4 mV VCM = 0 V to 16 V 1 6 mV −40°C ≤ TA ≤ +125°C 9 mV Offset Voltage Drift ∆VOS/∆T −40°C ≤ TA ≤ +125°C 3 µV/°C Input Bias Current IB 0.1 1 pA −40°C ≤ TA ≤ +125°C 200 pA Input Offset Current IOS 0.1 1 pA −40°C ≤ TA ≤ +125°C 40 pA Input Voltage Range −40°C ≤ TA ≤ +125°C 0 16 V Common-Mode Rejection Ratio CMRR VCM = 0 V to 16 V 55 75 dB −40°C ≤ TA ≤ +125°C 50 dB Large Signal Voltage Gain AVO Load resistance (RL) = 10 kΩ, output voltage (VOUT) = 85 100 dB 0.5 V to 15 V −40°C ≤ TA ≤ +125°C 75 dB Input Resistance RIN 4 GΩ Input Capacitance Differential Mode CINDM 2 pF Common Mode CINCM 7 pF OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 100 kΩ to VCM 15.95 15.99 V −40°C ≤ TA ≤ +125°C 15.9 V RL = 10 kΩ to VCM 15.9 15.95 V −40°C ≤ TA ≤ +125°C 15.8 V Low VOL RL = 100 kΩ to VCM 4 7.5 mV −40°C ≤ TA ≤ +125°C 15 mV RL = 10 kΩ to VCM 40 75 mV −40°C ≤ TA ≤ +125°C 150 mV Short-Circuit Current ISC ±30 mA Closed-Loop Output Impedance ZOUT Frequency = 100 kHz, AV = 1 100 Ω POWER SUPPLY Power Supply Rejection Ratio PSRR VSY = 5 V to 16 V 70 95 dB −40°C ≤ TA ≤ +125°C 65 dB Supply Current per Amplifier ISY Output current (IOUT) = 0 mA 290 400 µA −40°C ≤ TA ≤ +125°C 600 µA Operating Range VSY Dual supply ±2.5 ±8 V Single supply 5 16 V DYNAMIC PERFORMANCE Slew Rate SR RL = 10 kΩ, load capacitance (CL) = 50 pF, AV = 1 1 V/µs Settling Time to 0.1% tS Input voltage (VIN) = 1 V step, RL = 2 kΩ, CL = 50 pF 6.5 µs Gain Bandwidth Product GBP RL = 10 kΩ, CL = 50 pF, AV = 1 1.2 MHz Phase Margin ΦM RL = 10 kΩ, CL = 50 pF, AV = 1 50 Degrees Rev. 0 | Page 3 of 8 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—16 V OPERATION ELECTRICAL CHARACTERISTICS—5 V OPERATION ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTION OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
