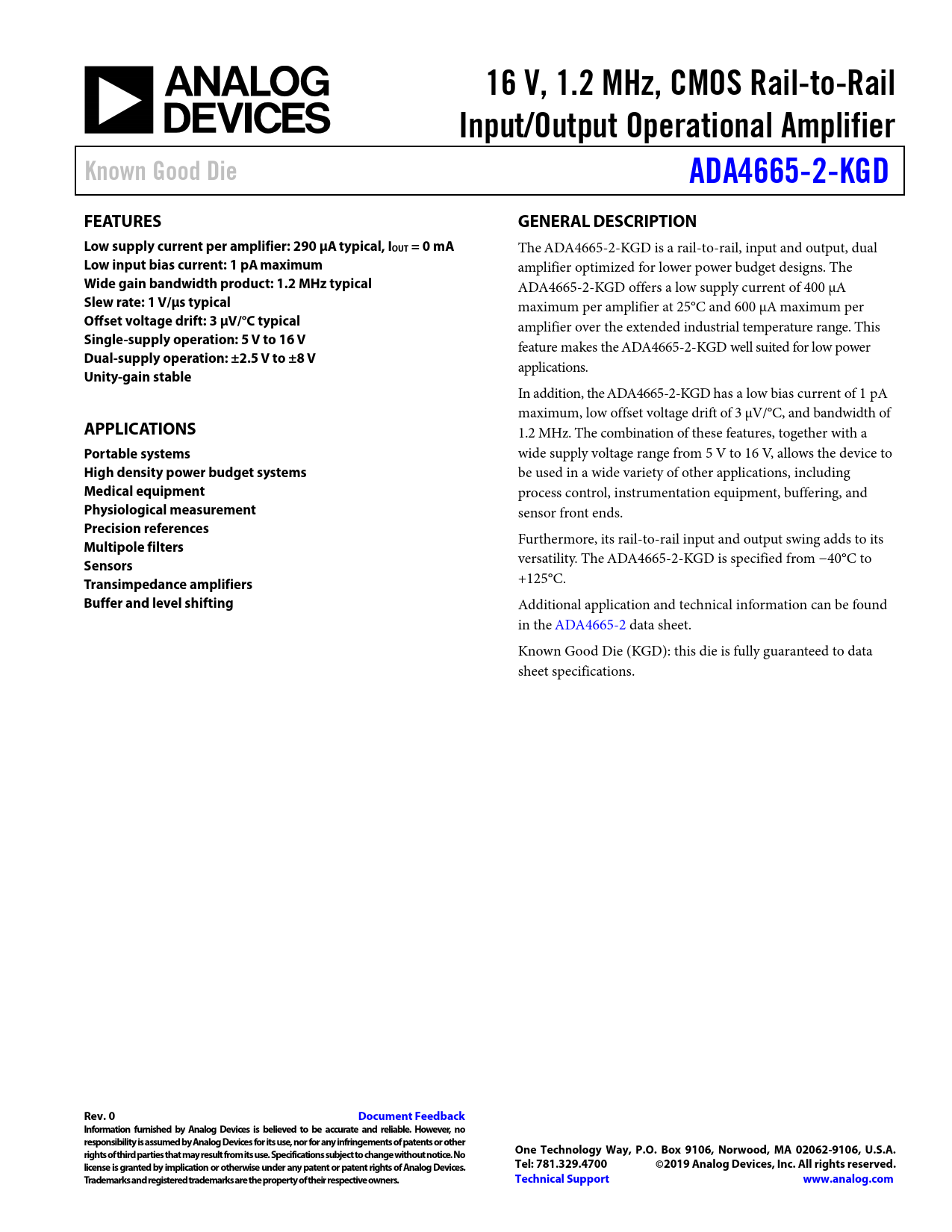

16 V, 1.2 MHz, CMOS Rail-to-Rail Input/Output Operational Amplifier Known Good Die ADA4665-2-KGD FEATURES GENERAL DESCRIPTION Low supply current per amplifier: 290 µA typical, IOUT = 0 mA
The ADA4665-2-KGD is a rail-to-rail, input and output, dual
Low input bias current: 1 pA maximum
amplifier optimized for lower power budget designs. The
Wide gain bandwidth product: 1.2 MHz typical
ADA4665-2-KGD offers a low supply current of 400 µA
Slew rate: 1 V/µs typical
maximum per amplifier at 25°C and 600 μA maximum per
Offset voltage drift: 3 µV/°C typical
amplifier over the extended industrial temperature range. This
Single-supply operation: 5 V to 16 V
feature makes the ADA4665-2-KGD wel suited for low power
Dual-supply operation: ±2.5 V to ±8 V
applications.
Unity-gain stable
In addition, the ADA4665-2-KGD has a low bias current of 1 pA maximum, low offset voltage drift of 3 µV/°C, and bandwidth of
APPLICATIONS
1.2 MHz. The combination of these features, together with a
Portable systems
wide supply voltage range from 5 V to 16 V, allows the device to
High density power budget systems
be used in a wide variety of other applications, including
Medical equipment
process control, instrumentation equipment, buffering, and
Physiological measurement
sensor front ends.
Precision references Multipole filters
Furthermore, its rail-to-rail input and output swing adds to its
Sensors
versatility. The ADA4665-2-KGD is specified from −40°C to
Transimpedance amplifiers
+125°C.
Buffer and level shifting
Additional application and technical information can be found in the ADA4665-2 data sheet. Known Good Die (KGD): this die is ful y guaranteed to data sheet specifications.
