AVR128DA28/32/48/64. Features. Preliminary Datasheet

AVR128DA28/32/48/64 Features Preliminary Datasheet

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 5

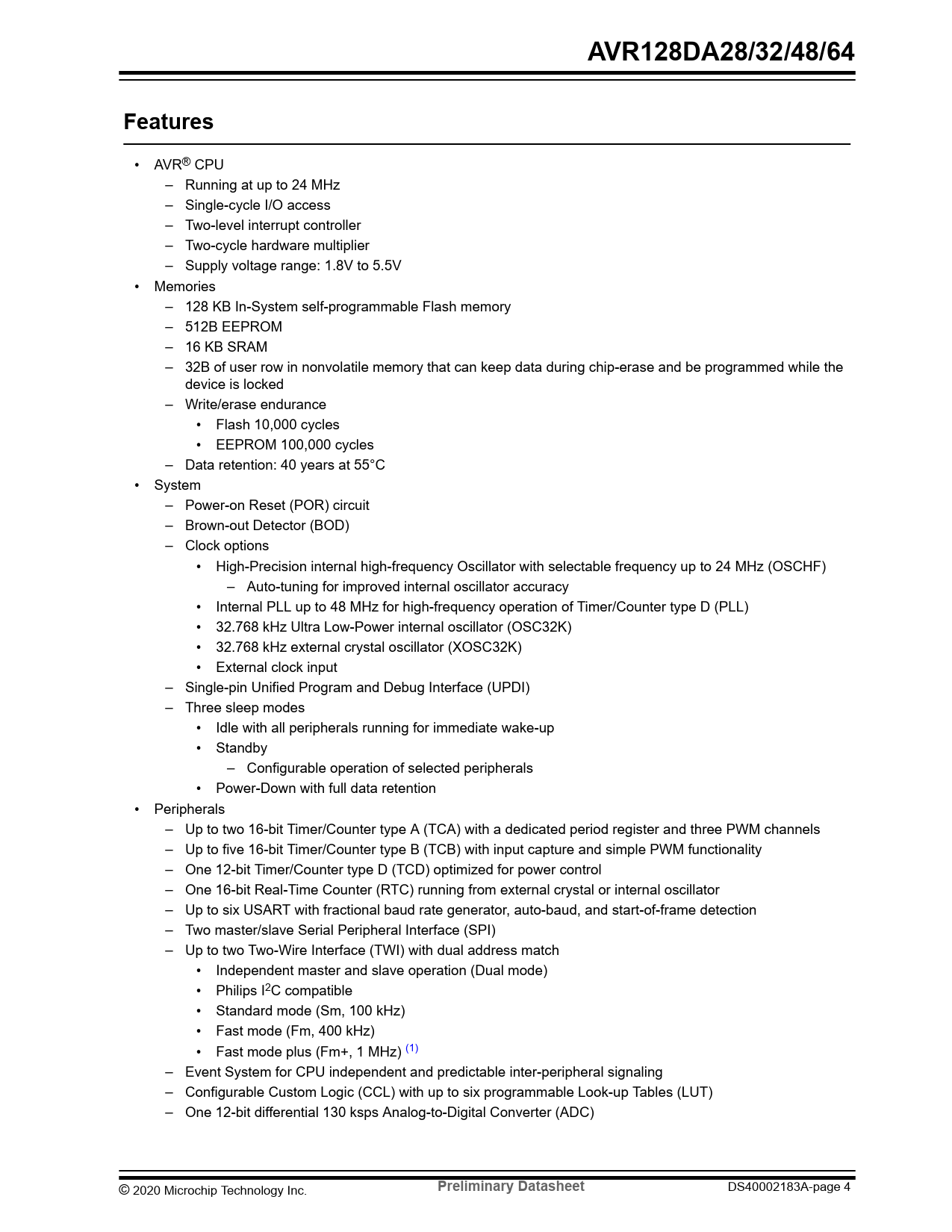

AVR128DA28/32/48/64 Features
• AVR® CPU – Running at up to 24 MHz – Single-cycle I/O access – Two-level interrupt controller – Two-cycle hardware multiplier – Supply voltage range: 1.8V to 5.5V • Memories – 128 KB In-System self-programmable Flash memory – 512B EEPROM – 16 KB SRAM – 32B of user row in nonvolatile memory that can keep data during chip-erase and be programmed while the device is locked – Write/erase endurance • Flash 10,000 cycles • EEPROM 100,000 cycles – Data retention: 40 years at 55°C • System – Power-on Reset (POR) circuit – Brown-out Detector (BOD) – Clock options • High-Precision internal high-frequency Oscillator with selectable frequency up to 24 MHz (OSCHF) – Auto-tuning for improved internal oscillator accuracy • Internal PLL up to 48 MHz for high-frequency operation of Timer/Counter type D (PLL) • 32.768 kHz Ultra Low-Power internal oscillator (OSC32K) • 32.768 kHz external crystal oscillator (XOSC32K) • External clock input – Single-pin Unified Program and Debug Interface (UPDI) – Three sleep modes • Idle with all peripherals running for immediate wake-up • Standby – Configurable operation of selected peripherals • Power-Down with full data retention • Peripherals – Up to two 16-bit Timer/Counter type A (TCA) with a dedicated period register and three PWM channels – Up to five 16-bit Timer/Counter type B (TCB) with input capture and simple PWM functionality – One 12-bit Timer/Counter type D (TCD) optimized for power control – One 16-bit Real-Time Counter (RTC) running from external crystal or internal oscillator – Up to six USART with fractional baud rate generator, auto-baud, and start-of-frame detection – Two master/slave Serial Peripheral Interface (SPI) – Up to two Two-Wire Interface (TWI) with dual address match • Independent master and slave operation (Dual mode) • Philips I2C compatible • Standard mode (Sm, 100 kHz) • Fast mode (Fm, 400 kHz) • Fast mode plus (Fm+, 1 MHz) (1) – Event System for CPU independent and predictable inter-peripheral signaling – Configurable Custom Logic (CCL) with up to six programmable Look-up Tables (LUT) – One 12-bit differential 130 ksps Analog-to-Digital Converter (ADC) © 2020 Microchip Technology Inc.
Preliminary Datasheet
